295347-0007-G1 Briggs and Stratton Engine

Model: 295347-0007-G1

Back To Assemblies

Save Part Not Listed?
product name

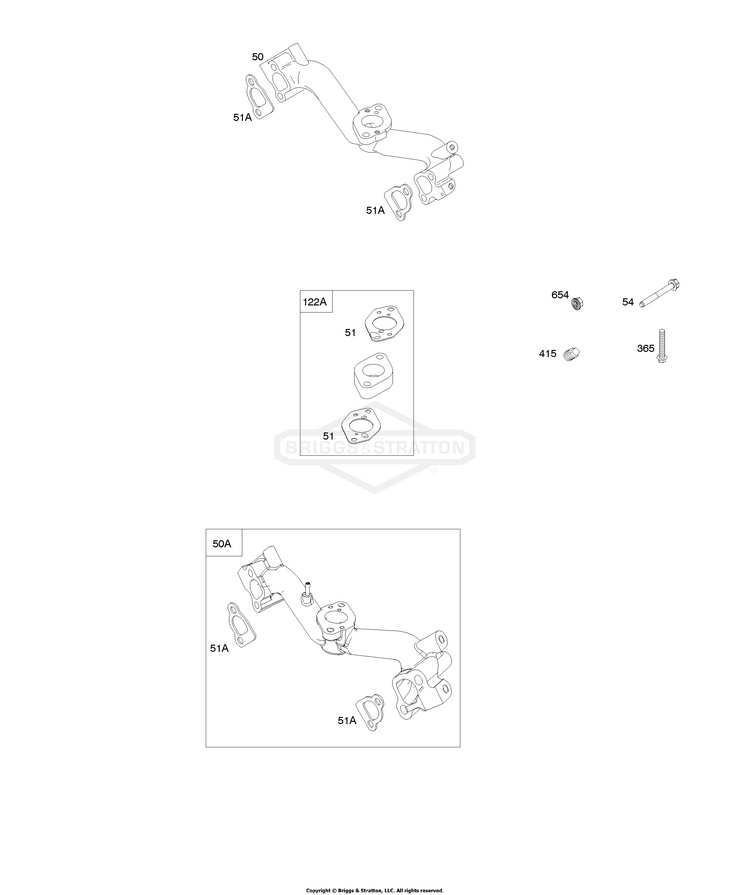

Intake Manifolds

...
...
50
MANIFOLD, Intake BS-690754
...
51
GASKET, Intake (Intake Manifold To Carburetor) BS-691694
...
51A
GASKET, Intake BS-692035
...
54
SCREW (Intake Manifold) (M8x67mm) (Dog Point) BS-846604
...
122A
SPACER, Carburetor BS-690691
...
365
SCREW (Carburetor/Throttle Body) BS-690711
...
415
PLUG BS-794903
...
654
NUT (Carburetor) BS-690939
Schematic Image Zoomed
