290442-0043-02 Briggs and Stratton Engine

Model: 290442-0043-02

Back To Assemblies

Save Part Not Listed?
product name

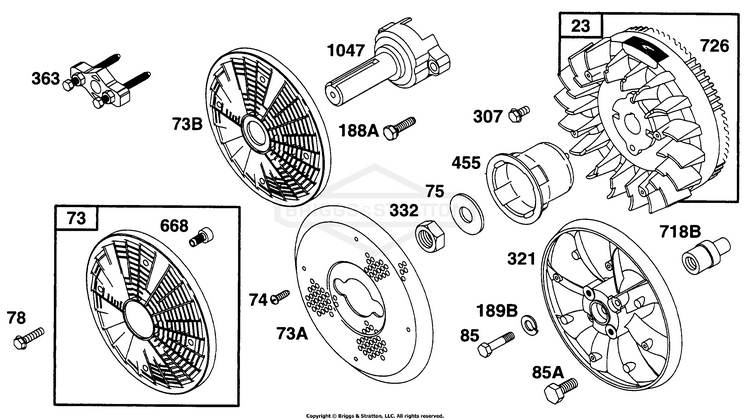

Flywheels, Screens, Fan

...
...
23
FLYWHEEL BS-807531
...
73B
SCREEN, Rotating BS-494439
...
73A
SCREEN-ROTATING BS-690478
...
73
SCREEN, Rotating BS-494439
...
74
SCREW BS-691655
...
75
WASHER (Spring) BS-691490
...
78
SCREW BS-691647
...
85A
SCREW BS-690342
...
85
SCREW BS-690335
...
188A
SCREW (Fuel Tank) (Tank) BS-691088
...
189B
WASHER, 5/16" LOCK BS-5025170SM
...
307
SCREW BS-692056
...
307
SCREW Engines With Fuel Tanks BS-692062
...
321
FAN, Booster BS-690379
...
332
NUT (Flywheel) BS-690887
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel Used Before Code Date 93072600 BS-805153
...
455
CUP, Flywheel BS-691517
...
668
SPACER BS-691500
...
718B
PIN, Locating BS-690740
...
726
GEAR, Ring BS-807805
...
1047
SHAFT, Stub BS-84006640
