28V707-1125-E1 Briggs and Stratton Engine

Model: 28V707-1125-E1

Save Part Not Listed?
product name

Air Cleaner, Controls, Springs

...
...
11
TUBE, Breather BS-692253
...
11A
TUBE, Breather BS-691328
...
50
MANIFOLD, Intake BS-691711
...
51A
GASKET, Intake BS-272554S
...
53
STUD (Carburetor) BS-690227
...
54
SCREW (Intake Manifold) BS-690953
...
167
SEAL-A/C NUT BS-692297
...
176
SEAL, O-Ring (Air Cleaner Base) BS-691917
...
185
NUT (Air Cleaner Base) BS-690958
...
188
SCREW (Control Bracket) BS-691693
...
202
LINK, Mechanical Governor BS-691841
...
209
SPRING, Governor (Brown) BS-792813
...
216
LINK, Choke BS-691840
...
222
BRACKET, Control BS-597209
...
227
LEVER, Governor Control BS-691374
...
232
SPRING, Governor Link BS-691842
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-690804
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
344
SCREW (Cable Clamp) BS-693675
...
404
WASHER (Governor Crank) BS-691691
...
445
FILTER-A/C CARTRIDGE BS-496894S
...
467
KNOB, Air Cleaner Cover BS-691668
...
505
NUT (Governor Control Lever) BS-691251
...
562
BOLT (Governor Control Lever) BS-691119
...
607
SCREW (Air Cleaner Brace) BS-690703
...
607A
SCREW (Air Cleaner Brace) BS-691693
...
614
PIN, Cotter BS-691620
...
616
CRANK, Governor BS-692012
...
646
BRACE, Air Cleanr BS-690460
...
654
NUT (Carburetor) BS-690958
...
875
BASE, Air Cleaner (Plastic) BS-696129
...
967
FILTER-PRE CLEANER BS-272403S
...
968
COVER, Air Cleaner BS-691916
...
971
SCREW (Air Cleaner Base to Carburetor) BS-691108

Alternator, Electric Starter

...
...
309
MOTOR, Starter (3 5/8 Housing Length For Steel Ring Gear Only) BS-593934
...
309
MOTOR, Starter (3 5/8) (Aluminum Ring Gear) BS-497595
...
309
MOTOR, Starter (3 5/8) (Plastic Ring Gear) BS-497595
...
310
SCREW (Starter Motor) BS-690323
...
311
SET, Brush BS-497608
...
333
ARMATURE-MAGNETO BS-591459
...
334
SCREW (Magneto Armature) BS-691061
...
356
WIRE, Stop BS-690799
...
462
WASHER (Starter Cable) BS-691261
...
474
ALTERNATOR (DC Only) BS-592828
...
474A
ALTERNATOR (Dual Circuit) BS-84012663
...
503
STRAP, Starter BS-691532
...
510
MOTOR, Starter (Used With Steel Ring Gear) BS-593934
...
510A
MOTOR, STARTER (Used With Aluminum And Plastic Ring Gears) BS-84013068
...
513
CLUTCH, Drive BS-692024
...
544
ARMATURE, Starter (3 5/8 Housing) BS-692034
...
578
WIRE ASSEMBLY BS-692306
...
579
NUT (Starter Cable) BS-691029
...
697
SCREW (Drive Cap) BS-791680
...
729
CLIP, Wire BS-690596
...
729A
CLIP, Wire BS-691224
...
783
GEAR, Pinion (Steel Ring Gear Only) BS-593935
...
783A
GEAR-PINION (Aluminum And Plastic Ring Gears) BS-695708
...
797
NUT (Brush Retainer) BS-693167
...
801
CAP, Drive BS-691283
...
802
CAP, End BS-691286
...
803
HOUSING, Starter (3 5/8 Housing) BS-693757
...
851
TERMINAL, Spark Plug BS-493880S
...
877
WIRE/CONNECTOR, Alternator BS-393456
...
877A
WIRE/CONNECTOR, Alternator (10 Amp Regulated) BS-393814
...
878
HARNESS, Wiring BS-398661
...
1051
RING, Retaining BS-691265
...
1054
TIE, Cable BS-280275
...
1059
KIT, Screw/Washer (Alternator) BS-698516
...
1090
RETAINER, Brush BS-691293
...
1119
SCREW (Alternator) BS-691183

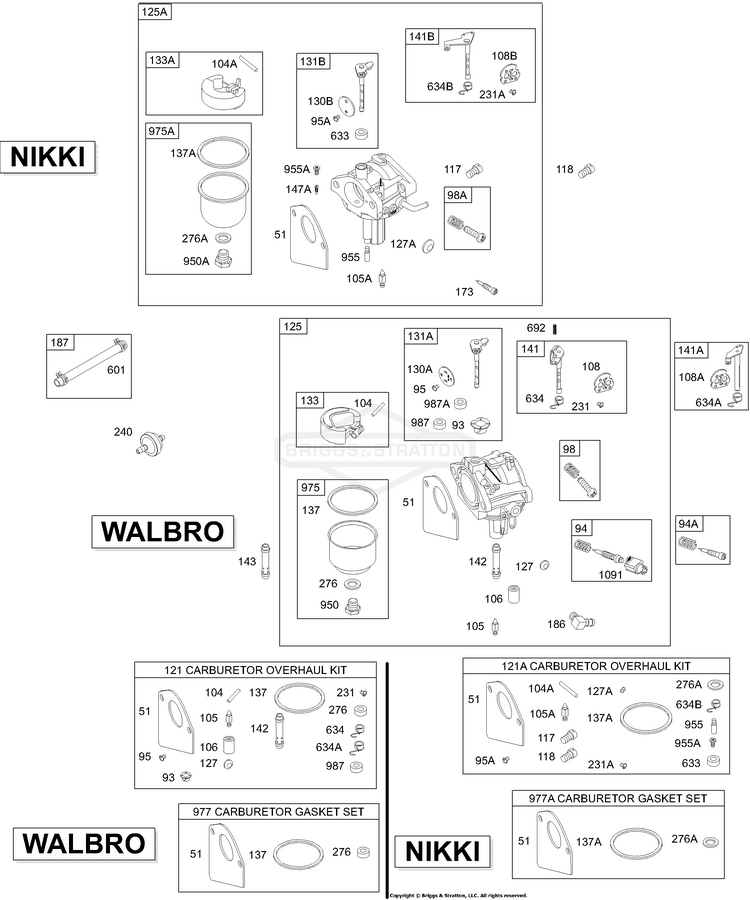

Carburetors, Gaskets

...
...
51
GASKET, Intake BS-692284
...
93
BUSHING, Throttle Shaft BS-690602
...
94
KIT, Idle Mixture (Lmt 153154,155,156) BS-794176
...
94A
KIT, Idle Mixture (Lmt 71,101,102,113,114,116) BS-494383
...
95
SCREW (Throttle Valve) BS-691636
...
95A
SCREW (Throttle Valve) BS-690718
...
98
KIT, Idle Speed (Idle Speed) (Lmt 54, 55, 91) BS-495800
...
98A
KIT, Idle Speed BS-694907
...
104
PIN, Float Hinge BS-690525
...
104A
PIN, Float Hinge BS-694918
...
105
VALVE-FLOAT NEEDLE BS-231855S
...
105A
VALVE, Float Needle BS-696136
...
106
SEAT, Inlet (Gravity Feed) BS-690577
...
106
SEAT, Inlet (Pump Feed) BS-691780
...
108
VALVE, Choke (Manual Choke) BS-690464
...
108A
VALVE, Choke (Choke A Matic) BS-692344
...
108B
VALVE, Choke BS-694923
...
117
JET, Main (Standard) BS-690880
...
118
JET, Main (High Altitude) BS-694925
...
121
KIT, Carburetor Overhaul (696160, 696162, 696164, 696166, 697212, 697213, 697214, 697906) BS-697884
...
121
KIT, Carburetor Overhaul (LMT 58, 59, 60, 61, 62, 92, 93, 94, 95, 96, 108, 111, 162, 165, 169) BS-497535
...
121A
KIT, Carburetor Overhaul (Nikki) BS-694930
...
125
CARBURETOR (696160, 696162, 696164, 696166, 697212, 697213, 697214, 697906) BS-698171
...
125
CARBURETOR (GRAVITY FEED)(LMT 1, 2, 3, 4, 5, 6, 7, 32, 37, 38, 39, 40, 41, 63, 64,65, 66, 77, 78, 79, 80, 81, 92, 93, 94, 95, 96, 97, 108, 111, 133, 134,135, 136, 162, 163, 164, 165) BS-799728
...
125A
CARBURETOR (Nikki Carburetor) BS-699831
...
127
PLUG, Welch (GRAVITY FEED)(LMT 1, 2, 3, 4, 5, 6, 7, 32, 37, 38, 39, 40, 41, 63, 64,65, 66, 77, 78, 79, 80, 81, 92, 93, 94, 95, 96, 97, 108, 111, 133, 134,135, 136, 162, 163, 164, 165) BS-695005
...
127
PLUG, Welch (696160, 696162, 696164, 696166, 697212, 697213, 697214, 697906) BS-694524
...
127A
PLUG, Welch BS-806460
...
130A
VALVE, Throttle BS-694917
...
130B
VALVE, Throttle BS-691750
...
131A
KIT, Throttle Shaft BS-790901
...
131B
KIT, Throttle Shaft (Nikki) BS-694909
...
133
FLOAT, Carburetor BS-494381
...
133A
FLOAT, Carburetor BS-694914
...
137
GASKET, Float Bowl BS-281165S
...
137A
GASKET, Float Bowl BS-694920
...
141
KIT, Choke Shaft (Manual Choke) BS-790905
...
141A
KIT, Choke Shaft (Choke A Matic) BS-790902
...
141B
KIT, Choke Shaft BS-694913
...
142
NOZZLE, Carburetor (Standard) (LMT 92) BS-691434
...
143
NOZZLE, Carburetor (High Altitude) (LMT 92) BS-497737
...
147A
JET, Pilot BS-694927
...
173
VALVE, Idle Mixture BS-694926
...
186
CONNECTOR-HOSE BS-692317
...
187
LINE, Fuel (Cut To Required Length) BS-791766
...
231
SCREW (Choke Valve) BS-691636
...
231A
SCREW (Choke Valve) BS-690718
...
240
FILTER, Fuel BS-298090S
...
276
WASHER, Sealing BS-692255
...
276A
WASHER, Sealing BS-690997
...
601
CLAMP, Hose BS-791850
...
633
SEAL, Choke/Throttle Shaft BS-690998
...
634
SPRING/SEAL ASSEMBLY (Manual Choke) BS-690801
...
634A
SPRING/SEAL ASSEMBLY (Choke A Matic) BS-690802
...
634B
SPRING/SEAL ASSEMBLY BS-694912
...
692
SPRING, Detent BS-590931
...
950
SCREW (Float Bowl) BS-691657
...
950A
SCREW (Float Bowl) BS-694919
...
955
PLUG, Carburetor (Idle Chamber) BS-694924
...
955A
PLUG, Carburetor (Pilot Jet) BS-694921
...
975
BOWL, Float (Float Bowl) BS-495933
...
975A
BOWL, Float BS-694908
...
977
KIT, Carburetor Overhaul BS-497535
...
977A
SET, Carburetor Gasket (Nikki) BS-694931
...
987
SEAL, Choke/Throttle Shaft BS-691326
...
987A
SEAL-THROTTLE SHAFT BS-692279
...
1091
CAP, Limiter BS-691333

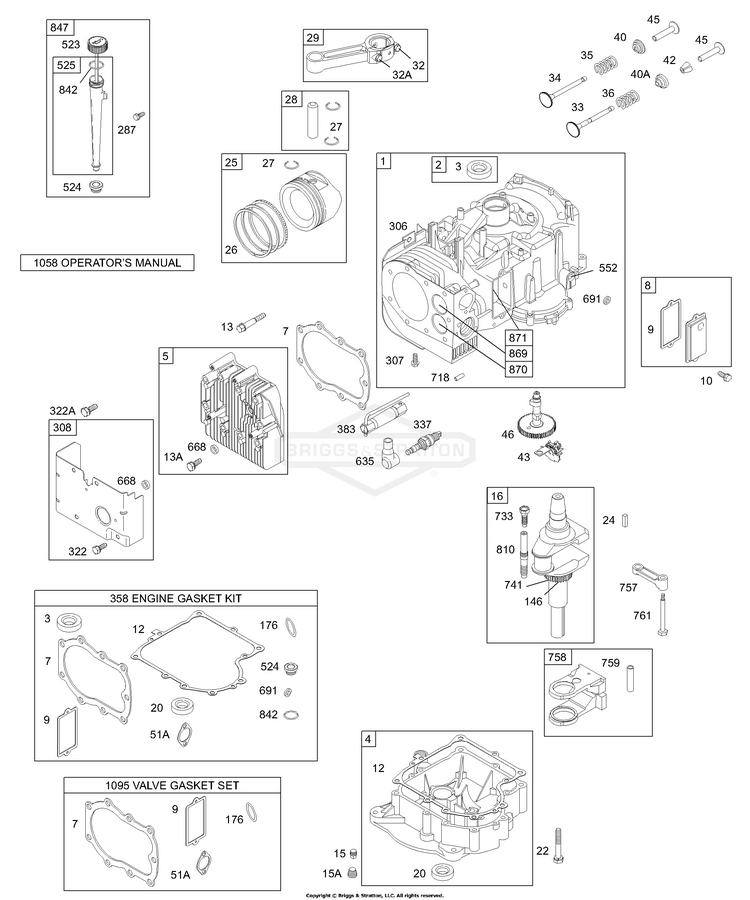

Cylinder, Head, Crankshaft, Sump, Gaskets, Piston

...
...
1
CYLINDER ASSEMBLY BS-496413
...
2
KIT, Bushing/Seal (Magneto Side) BS-797673
...
3
SEAL, Oil (Magneto Side) BS-391086S
...
4
SUMP, Engine BS-494238
...
5
HEAD, Cylinder BS-494240
...
7
GASKET, Cylinder Head BS-271866S
...
8
BREATHER ASSEMBLY BS-495735
...
9
GASKET, Breather BS-27803S
...
10
SCREW (Breather Assembly) BS-691666
...
12
GASKET, Crankcase (.005) BS-692406
...
12
GASKET, Crankcase (.015)(Standard) BS-692226
...
12
GASKET, Crankcase (.009) BS-692405
...
13
SCREW (Cylinder Head) BS-690904
...
13A
SCREW (Cylinder Head) BS-691687
...
15
PLUG, Oil Drain BS-690946
...
15A
PLUG, Oil Drain BS-691680
...
16
CRANKSHAFT BS-693944
...
20
SEAL, Oil (PTO Side) BS-291675S
...
22
SCREW (Crankcase Cover/Sump) BS-692125
...
24
KEY, Flywheel BS-222698S
...
25
PISTON ASSEMBLY (Standard) Used After Code Date 01060600 BS-696397
...
25
PISTON ASSEMBLY (.020 Oversize) Used After Code Date 01060600 BS-696399
...
25
PISTON ASSEMBLY (.030 Oversize) Used After Code Date 01060600 BS-696400
...
25
PISTON ASSEMBLY (Standard) Used Before Code Date 01060700 BS-499284
...
25
PISTON ASSEMBLY (.020 Oversize) Used Before Code Date 01060700 BS-499292
...
26
SET, Ring (.020 Oversize) Used Before Code Date 01060700 BS-499998
...
26
SET, Ring (Standard) Used After Code Date 01060600 BS-696403
...
26
SET, Ring (.010 Oversize) Used After Code Date 01060600 BS-696404
...
26
SET, Ring (.020 Oversize) Used After Code Date 01060600 BS-696405
...
26
SET, Ring (.030 Oversize) Used After Code Date 01060600 BS-696406
...
26
SET, Ring (Standard)(Chrome) Used Before Code Date 01060700 BS-392331
...
26
SET, Ring (Standard) Used Before Code Date 01060700 BS-499996
...
27
LOCK, Piston Pin BS-691299
...
28
PIN, Piston (Standard) BS-498319
...
28
PIN, Piston (.005 Oversize) BS-498320
...
29
ROD, Connecting (Standard) BS-494504S
...
29
ROD, Connecting (.020 Undersize) BS-495490
...
32
SCREW (Connecting Rod) (1 7/8 ) BS-791118
...
32A
SCREW (Connecting Rod) (1 5/8 ) BS-690352
...
33
VALVE, Exhaust BS-262246S
...
34
VALVE, Intake BS-262247S
...
35
SPRING, Valve (Intake) BS-691605
...
36
SPRING, Valve (Exhaust) BS-691597
...
40
RETAINER, Valve (Intake) BS-690656
...
40A
RETAINER, Valve (Exhaust) BS-691939
...
42
KEEPER, Valve (Exhaust) BS-494553
...
43
SLINGER, Governor/Oil BS-691968
...
45
TAPPET, Valve BS-691811
...
46
CAMSHAFT BS-697668
...
51A
GASKET, Intake BS-272554S
...
146
KEY, Woodruff BS-691639
...
176
SEAL, O-Ring (Air Cleaner Base) BS-691917
...
287
SCREW (Dipstick Tube) BS-691002
...
306
SHIELD-CYLINDER BS-698477
...
307
SCREW (Cylinder Shield) BS-691003
...
308
COVER, Cylinder Head BS-698476
...
322
SCREW (Cylinder Head Cover) BS-691687
...
322A
SCREW (Cylinder Head Cover) BS-692198
...
337
PLUG, Spark (Resistor) BS-796112S
...
358
GASKET SET, Engine BS-494241
...
383
WRENCH, Spark Plug BS-89838S
...
523
DIPSTICK BS-692014
...
524
SEAL, Dipstick Tube (Dipstick Tube) BS-281370S
...
525
TUBE, Dipstick BS-691398
...
552
BUSHING, Governor Crank (1/4 I.D.) BS-491986
...
635
BOOT, Spark PLug BS-66538S
...
668
SPACER (Cylinder Head) BS-690510
...
691
SEAL, Governor Shaft BS-692407
...
718
PIN, Locating BS-690959
...
733
SCREW (Crankshaft Extension) BS-698139
...
741
GEAR, Timing BS-691284
...
757
LINK, Counterweight (Used After Code Date 78100411) BS-691714
...
758
COUNTERWEIGHT BS-692423
...
759
PIN, Counterweight BS-691239
...
761
SCREW (Counterweight) BS-691096
...
810
EXTENSION, Crankshaft BS-691779
...
842
SEAL, O-Ring (Dipstick Tube) BS-691870
...
847
DIPSTICK/TUBE ASSEMBLY BS-597130
...
869
SEAT, Valve (Intake) BS-691802
...
870
SEAT-VALVE (Exhaust) BS-691844
...
871
BUSHING, Valve Guide (Intake)(Brass) BS-231218
...
871
BUSHING, Valve Guide (Exhaust) BS-261961
...
1058
MANUAL, Operator's (Emission) BS-274787
...
1095
GASKET SET, Valve BS-498539

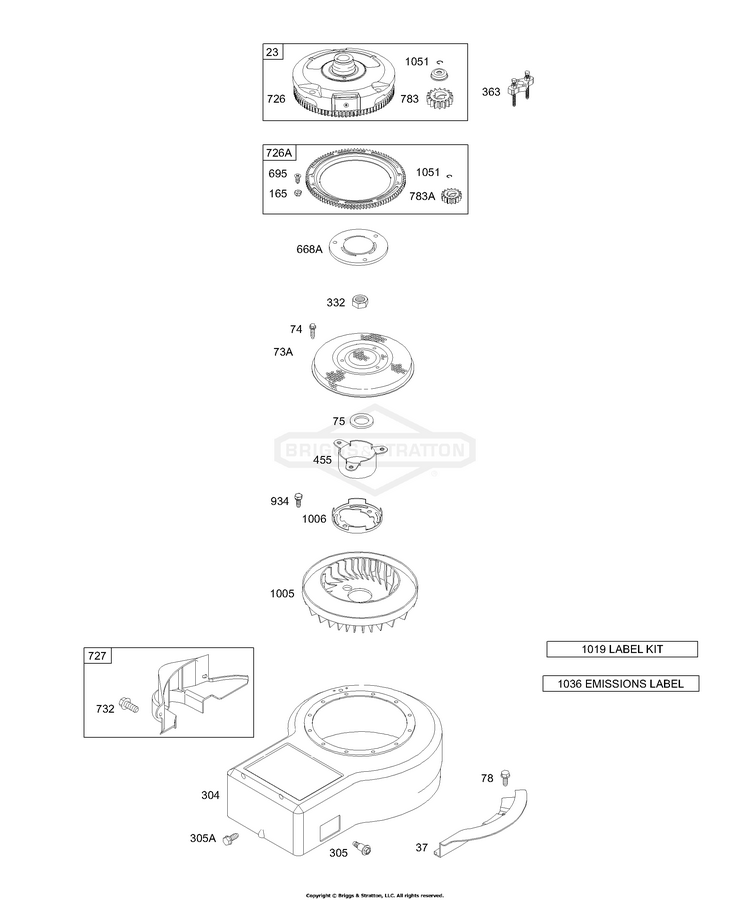

Flywheel, Blower, Shields, Screens

...
...
23
FLYWHEEL (Steel Ring Gear) BS-693557
...
37
GUARD, Flywheel BS-690456
...
73A
SCREEN-ROTATING BS-691748
...
74
SCREW (Rotating Screen) BS-691655
...
75
WASHER (Flywheel) BS-690582
...
78
SCREW (Flywheel Guard) BS-690661
...
165
NUT (Ring Gear) BS-693148
...
304
HOUSING, Blower BS-690846
...
305
SCREW (Blower Housing) BS-692198
...
305A
SCREW (Blower Housing) BS-692127
...
332
NUT (Flywheel) BS-693560
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-691173
...
668A
SPACER (Rotating Screen) BS-691323
...
695
SCREW (Ring Gear) BS-693109
...
726A
GEAR, Ring (Aluminum)(Services Plastic Ring Gear Only) BS-696537
...
727
COVER, Starter Drive (Includes Mounting Hardware) BS-490324
...
732
SCREW (Starter Drive Cover) BS-691002
...
783
GEAR, Pinion (Steel Ring Gear Only) BS-593935
...
783A
GEAR-PINION (Aluminum And Plastic Ring Gears) BS-695708
...
934
SCREW (Fan Retainer) BS-691058
...
1005
FAN, Flywheel BS-691905
...
1006
RETAINER, Fan BS-690452
...
1019
KIT, Label BS-491193
...
1036
LABEL, Emissions Used After Code Date 98123100 Used Before Code Date 99100100 BS-694325
...
1036
LABEL, Emissions Used Before Code Date 99010100 BS-499362
...
1036
LABEL, Emissions Used After Code Date 00063000 BS-695699
...
1036
LABEL, Emissions Used After Code Date 99093000 Used Before Code Date 00070100 BS-695036
...
1051
RING, Retaining BS-691265

Replacement Engine - US & Canada

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
