28U707-1131-E1 Briggs and Stratton Engine

Model: 28U707-1131-E1

Back To Assemblies

Save Part Not Listed?
product name

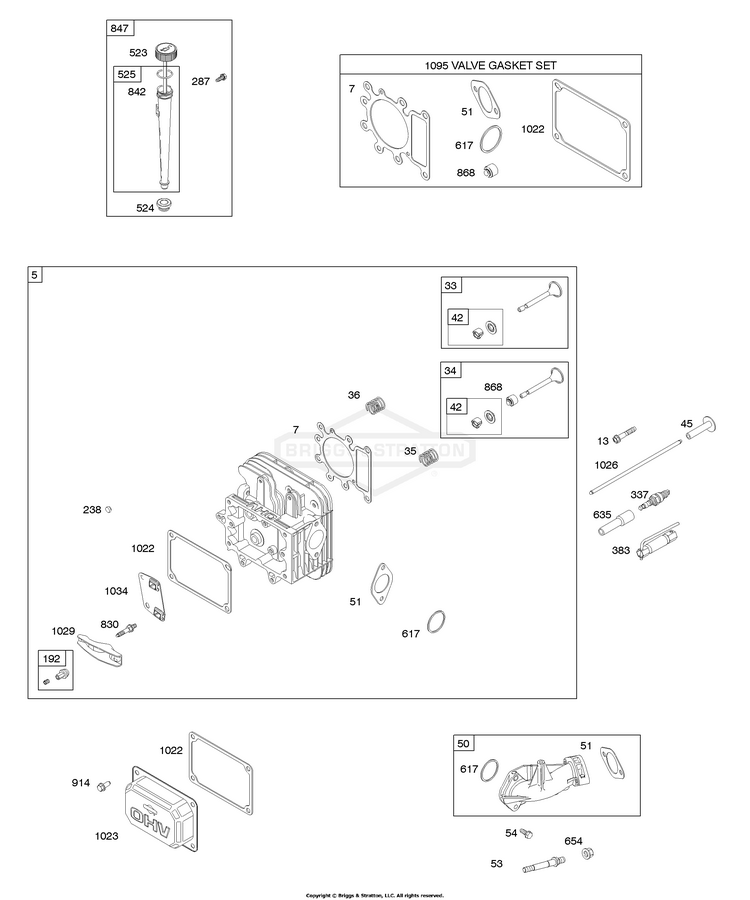

Cylinder Head, Dipstick

...
...
5
HEAD, CYLINDER BS-84011649
...
7
GASKET, Cylinder Head BS-273280S
...
13
SCREW (Cylinder Head) BS-84001963
...
33
VALVE, EXHAUST BS-84013568
...
34
VALVE, INTAKE BS-84013513
...
35
SPRING, Valve (Intake) BS-691279
...
36
SPRING, Valve (Exhaust) BS-691279
...
42
KEEPER, Valve BS-84012308
...
45
TAPPET, Valve BS-690564
...
50
MANIFOLD-INTAKE BS-592842
...
51
GASKET-INTAKE BS-692137
...
53
STUD (Carburetor) BS-690227
...
54
SCREW (Intake Manifold) BS-691148
...
192
ADJUSTER, Rocker Arm BS-691986
...
238
CAP, Valve BS-691843
...
287
SCREW (Dipstick Tube) BS-691002
...
337
PLUG, Spark BS-691043
...
383
WRENCH, Spark Plug BS-89838S
...
523
DIPSTICK BS-692014
...
524
SEAL, Dipstick Tube (Dipstick Tube) BS-281370S
...
525
TUBE, Dipstick BS-691398
...
617
SEAL, O-Ring (Intake Manifold) BS-692138
...
635
BOOT, Spark Plug BS-691909
...
654
NUT (Carburetor) BS-690958
...
830
STUD, Rocker Arm BS-691095
...
842
SEAL, O-Ring (Dipstick Tube) BS-691870
...
847
DIPSTICK/TUBE ASSEMBLY BS-597130
...
868
SEAL, Valve BS-690968
...
914
SCREW (Rocker Cover) BS-691108
...
1022
GASKET, Rocker Cover BS-272475S
...
1023
COVER, Rocker BS-691192
...
1026
ROD, Push (Intake) BS-692003
...
1026
ROD, Push (Exhaust) BS-692011
...
1029
ARM, Rocker BS-691751
...
1034
GUIDE, Push Rod BS-690822
...
1095
GASKET SET, Valve BS-796189
