28T707-1119-E1 Briggs and Stratton Engine

Model: 28T707-1119-E1

Back To Assemblies

Save Part Not Listed?
product name

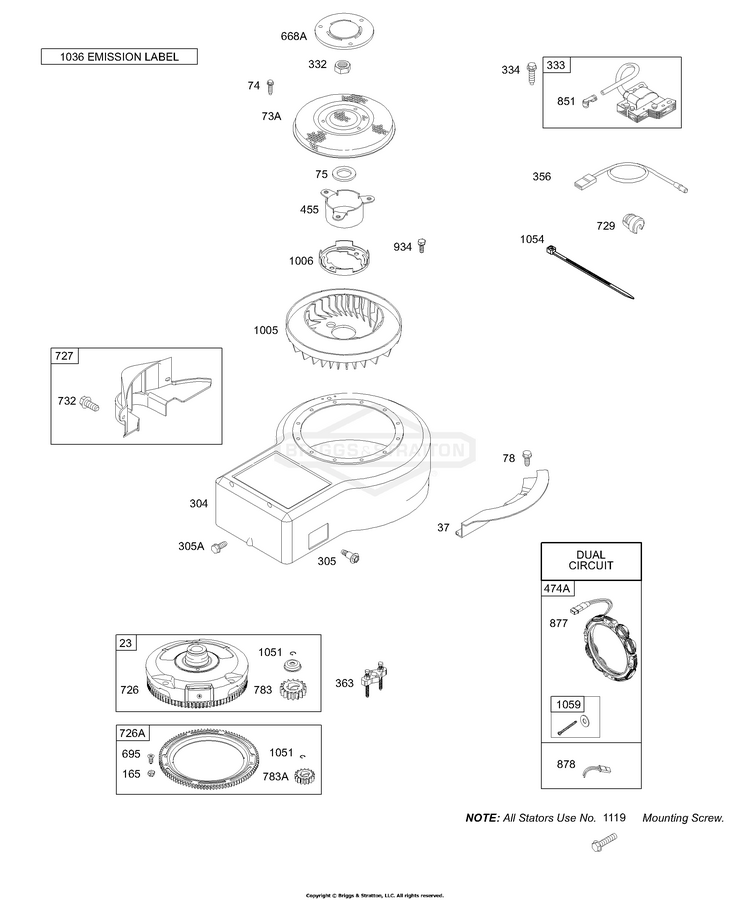

Blower Housing, Alternator, Flywheel, Magneto

...
...
23
FLYWHEEL (Steel Ring Gear) BS-693557
...
37
GUARD, Flywheel BS-690456
...
73A
SCREEN-ROTATING BS-691748
...
74
SCREW (Rotating Screen) BS-691655
...
75
WASHER (Flywheel) BS-690582
...
78
SCREW (Flywheel Guard) BS-690661
...
165
NUT (Ring Gear) BS-693148
...
304
HOUSING, Blower BS-690846
...
305
SCREW (Blower Housing) BS-692198
...
305A
SCREW (Blower Housing) BS-692127
...
332
NUT (Flywheel) BS-690662
...
333
ARMATURE-MAGNETO BS-591459
...
334
SCREW (Magneto Armature) BS-691061
...
356
WIRE, Stop BS-690799
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-691173
...
474A
ALTERNATOR (Dual Circuit) BS-84012663
...
668A
SPACER BS-691323
...
695
SCREW (Ring Gear) BS-693109
...
726A
GEAR, Ring (Aluminum)(Services Plastic Ring Gear Only) BS-696537
...
727
COVER, Starter Drive (Includes Mounting Hardware) BS-490324
...
729
CLIP, Wire BS-690596
...
732
SCREW (Starter Drive Cover) BS-691002
...
783
GEAR, Pinion (Steel Ring Gear) BS-593935
...
783A
GEAR-PINION (Aluminum And Plastic Ring Gears) BS-695708
...
851
TERMINAL, Spark Plug BS-493880S
...
877
WIRE/CONNECTOR, Alternator BS-393456
...
878
HARNESS, Wiring BS-398661
...
934
SCREW (Fan Retainer) BS-691058
...
1005
FAN, Flywheel BS-691905
...
1006
RETAINER, Fan BS-690452
...
1036
LABEL, Emissions Used Before Code Date 99010400 BS-499362
...
1036
LABEL, Emissions Used After Code Date 99010300 Used Before Code Date 99100100 BS-694325
...
1036
LABEL, Emissions Used After Code Date 99093000 Used Before Code Date 00070300 BS-695036
...
1036
LABEL, Emissions Used After Code Date 01093000 BS-696770
...
1036
LABEL, Emissions Used After Code Date 00070200 Used Before Code Date 01100100 BS-695699
...
1051
RING, Retaining BS-691265
...
1054
TIE, Cable BS-280275
...
1059
KIT, Screw/Washer (Alternator) BS-698516
...
1119
SCREW (Alternator) BS-691183
