28A707-0604-A1 Briggs and Stratton Engine

Model: 28A707-0604-A1

Back To Assemblies

Save Part Not Listed?
product name

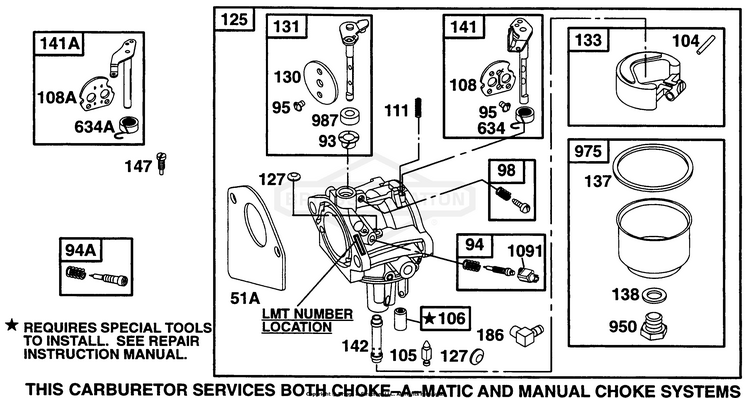

Carburetor Assy

...
...
51A
GASKET, Intake Included in Carburetor Kit-See Ref. 121. Included in Carburetor Gasket Set-Part No. 494385 BS-692284
...
93
BUSHING, Throttle Shaft Included in Carburetor Kit-See Ref. 121 BS-690602
...
94A
KIT, Idle Mixture (Lmt 149,150,172,175) BS-496589
...
94
KIT, Idle Mixture (Lmt 153154,155,156) BS-794176
...
95
SCREW Included in Carburetor Kit-See Ref. 121 BS-691636
...
98
KIT, Idle Speed (Idle Speed) (Lmt 54, 55, 91) BS-495800
...
104
PIN, Float Hinge Included in Carburetor Kit-See Ref. 121 BS-690525
...
105
VALVE-FLOAT NEEDLE (Lmt 54 55, 91) Included in Carburetor Kit-See Ref. 121 BS-231855S
...
106
SEAT, Inlet (Gravity Feed) Included in Carburetor Kit-See Ref. 121 BS-690577
...
108A
VALVE, Choke (Choke-A-Matic) BS-690467
...
108
VALVE, Choke (Manual Choke) BS-224667
...
111
SPRING, Detent BS-590931
...
125
CARBURETOR (Lmt 108, 111) Used Before Code Date 96072600 BS-799728
...
130
VALVE, Throttle BS-790024
...
131
KIT, Throttle Shaft BS-790901
...
133
FLOAT, Carburetor BS-494381
...
137
GASKET, Float Bowl Included in Carburetor Kit-See Ref. 121. Included in Carburetor Gasket Set-Part No. 494385 BS-281165S
...
138
WASHER, Sealing Included in Carburetor Kit-See Ref. 121. Included in Carburetor Gasket Set-Part No. 494385 BS-692255
...
141A
KIT, Choke Shaft (Choke-A-Matic) BS-790902
...
141
KIT, Choke Shaft (Manual Choke) (Lmt 28,31,55,91,155,156) BS-790905
...
142
NOZZLE, Carburetor (Standard) (Lmt 63,65,66,100,136) Included in Carburetor Kit-See Ref. 121 BS-497860
...
142
NOZZLE, Carburetor (Standard) (Lmt 97,98,99,100) Included in Carburetor Kit-See Ref. 121 BS-497568
...
142
NOZZLE, Carburetor (Standard) (Lmt 108,111,133,134,135,136) Included in Carburetor Kit-See Ref. 121 BS-497860
...
142
NOZZLE, Carburetor (High Altitude) (Lmt 97,98,100) BS-497970
...
142
NOZZLE, Carburetor (High Alt/LMT 63, 65, 66, 100, 108, 111, 133, 135, 136) BS-498258
...
142
NOZZLE, Carburetor (Standard) (Lmt 108, 111) Included in Carburetor Kit-See Ref. 121 BS-498545
...
142
NOZZLE, Carburetor (Standard) (Lmt 162, 165, 169) Included in Carburetor Kit-See Ref. 121 BS-499037
...
142
NOZZLE, Carburetor (High Altitude) (Lmt 162, 165, 169) BS-499040
...
142
NOZZLE, Carburetor (Standard) (Lmt 166,167,168) Included in Carburetor Kit-See Ref. 121 BS-499039
...
142
NOZZLE, Carburetor (High Altitude) (Lmt 96,165,166,167,168) BS-499040
...
147
JET-PILOT (LMT 108,111,133,134,136,139,140) BS-232057
...
147
JET, Pilot Included in Carburetor Kit-See Ref. 121 (LMT 1,2,3,4,5,7,33,34,37,38,39,40,41,63, 65, 66,77,78,79,80,81,89,97,98,100,101,102,103,113,114,115,116,117,119) BS-497472
...
186
CONNECTOR-HOSE BS-692317
...
634A
SPRING/SEAL ASSEMBLY (Choke-A-Matic) Included in Carburetor Kit-See Ref. 121 BS-690802
...
634
SPRING/SEAL ASSEMBLY (Manual Choke) Included in Carburetor Kit-See Ref. 121 BS-690801
...
950
SCREW (Float Bowl) BS-691657
...
975
BOWL, Float (Float Bowl) BS-495933
...
987
SEAL, Choke/Throttle Shaft Included in Carburetor Kit-See Ref. 121 BS-691326
...
1091
CAP, Limiter BS-691333
