28A707-0604-A1 Briggs and Stratton Engine

Model: 28A707-0604-A1

Back To Assemblies

Save Part Not Listed?

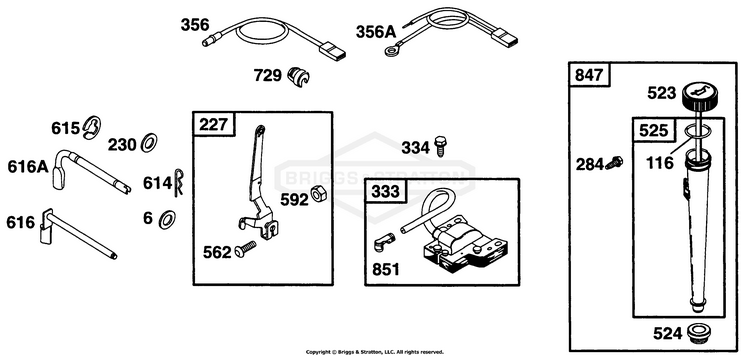

product name

Controls, Elect, Oil Fill

...
...
6
WASHER (Governor Lever) BS-691691
...
116
SEAL, O-Ring (Oil Fill) Included in Gasket Set-Part Number 494241 BS-691870
...
227
LEVER, Governor Control BS-691374
...
284
SCREW BS-691002
...
333
ARMATURE-MAGNETO BS-591459
...
334
SCREW (Magneto) BS-691061
...
356A
WIRE, Stop (Cut To Required Length) BS-398808
...
356
WIRE, Stop BS-690799
...
523
DIPSTICK BS-692013
...
524
SEAL, Dipstick Tube Included in Gasket Set-Part Number 494241 BS-281370S
...
525
TUBE, Dipstick BS-690841
...
562
BOLT BS-691119
...
592
NUT BS-691251
...
614
PIN, Cotter BS-691620
...
615
RETAINER, Governor Shaft BS-93307
...
616A
CRANK, Governor (1/4 Diameter) BS-692012
...
616
CRANK, Governor BS-692012
...
729
CLIP, Wire BS-690596
...
847
DIPSTICK/TUBE ASSEMBLY BS-496367
...
851
TERMINAL, Spark Plug BS-493880S
