285707-0143-01 Briggs and Stratton Engine

Model: 285707-0143-01

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

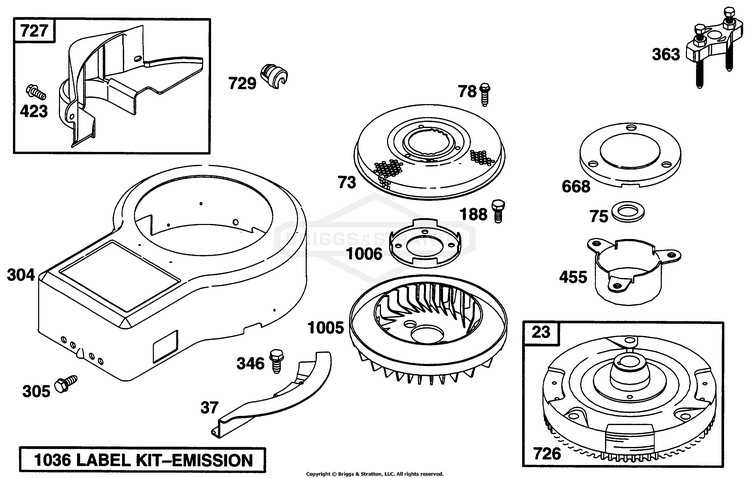

Blower Hsg,Flywheels,Screens

...
...
23
FLYWHEEL BS-693557
...
37
GUARD, Flywheel BS-690456
...
73
SCREEN-ROTATING BS-691748
...
75
WASHER (5/8 Hole) BS-690582
...
78
SCREW BS-691655
...
188
SCREW (Fuel Tank) BS-691058
...
304
HOUSING, Blower (Black) Used Before Code Date 93091300 BS-494268
...
304
HOUSING, Blower BS-690846
...
305
SCREW (1/2) BS-692198
...
346
SCREW (8-32 X 3/8) BS-690661
...
363
PULLER, Flywheel BS-19203
...
423
SCREW BS-691002
...
455
CUP, Flywheel BS-691173
...
668
SPACER BS-691323
...
726
GEAR, Ring BS-696537
...
727
COVER, Starter Drive (Includes Mounting Hardware) BS-490324
...
729
CLIP, Wire BS-690596
...
1005
FAN, Flywheel BS-691905
...
1006
RETAINER, Fan BS-690452
