285707-0143-01 Briggs and Stratton Engine

Model: 285707-0143-01

Back To Assemblies

Save Part Not Listed?
product name

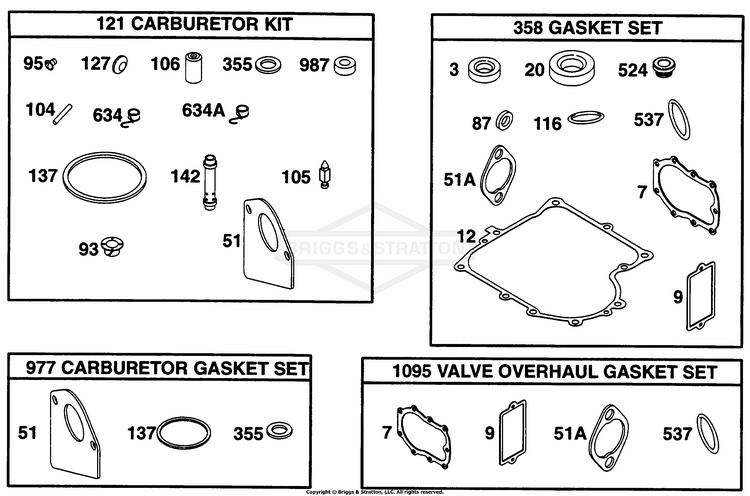

Gasket Sets

...
...
3
SEAL, Oil Included in Gasket Set-Part Number 494241. BS-391086S
...
7
GASKET, Cylinder Head Included in Gasket Set-Part Number 494241. Included in Valve Overhaul Gasket Set-Part No. 498539. BS-271866S
...
7
GASKET, Cylinder Head Included in Valve Overhaul Gasket Set-Part No. 498539. Included in Gasket Set-Part Number 494241. BS-271866S
...
9
GASKET, Breather Included in Valve Overhaul Gasket Set-Part No. 498539. Included in Gasket Set-Part Number 494241. BS-27803S
...
9
GASKET, Breather Included in Gasket Set-Part Number 494241. Included in Valve Overhaul Gasket Set-Part No. 498539. BS-27803S
...
12
GASKET, Crankcase (.015) Included in Gasket Set-Part Number 494241. BS-692226
...
12
GASKET, Crankcase (.009) Included in Gasket Set-Part Number 494241. BS-692405
...
12
GASKET, Crankcase (.005) Included in Gasket Set-Part Number 494241. BS-692406
...
20
SEAL, Oil (Crankcase Cover) Included in Gasket Set-Part Number 494241. BS-291675S
...
51A
GASKET, Intake Included in Gasket Set-Part Number 494241. Included in Valve Overhaul Gasket Set-Part No. 498539. BS-272554S
...
51A
GASKET, Intake Included in Valve Overhaul Gasket Set-Part No. 498539. Included in Gasket Set-Part Number 494241. BS-272554S
...
51
GASKET, Intake Included in Carburetor Kit-See Ref. 121. Included in Carburetor Gasket Set-Part No. 494385. BS-692284
...
87
SEAL, Governor Shaft Included in Gasket Set-Part Number 494241. BS-692407
...
93
BUSHING, Throttle Shaft Included in Carburetor Kit-See Ref. 121. BS-690602
...
95
SCREW Included in Carburetor Kit-See Ref. 121. BS-691636
...
104
PIN, Float Hinge Included in Carburetor Kit-See Ref. 121. BS-690525
...
105
VALVE-FLOAT NEEDLE (Lmt 54 55, 91) Included in Carburetor Kit-See Ref. 121. BS-231855S
...
105
KIT, Needle/Seat (Lmt 5, 6) Used Before Code Date 92072000 BS-494788
...
106
SEAT, Inlet (Gravity Feed) Used After Code Date 92071900 BS-690577
...
106
SEAT, Inlet (Gravity Feed) (Lmt5,6) Used Before Code Date 92072000 BS-691901
...
116
SEAL, O-Ring (Oil Fill) Included in Gasket Set-Part Number 494241. BS-691870
...
121
KIT, Carburetor Overhaul (Lmt 63, 65, 66) Used Before Code Date 96072600 BS-497481
...
121
KIT, Carburetor Overhaul Used After Code Date 96072500 BS-497535
...
121
KIT, Carburetor Overhaul Used After Code Date 96072500 BS-499231
...
137
GASKET, Float Bowl Included in Carburetor Kit-See Ref. 121. Included in Carburetor Gasket Set-Part No. 494385. BS-281165S
...
142
NOZZLE, Carburetor Included in Carburetor Kit-See Ref. 121. (LMT 1,2,3,4,5,6,7,37,38,39,40,41,77,78,79,80,81,157,158,160) BS-691425
...
142
NOZZLE, Carburetor (High Alt/LMT 1,2,3,4,5,6,7,37,38,39,40,41,77,78,79,80,81,157,158,159,160) BS-497567
...
142
NOZZLE, Carburetor (Lmt 92,93,94,95,96) Included in Carburetor Kit-See Ref. 121. BS-691434
...
142
NOZZLE, Carburetor (High Altitude) (Lmt 92, 93, 94,95, 96) BS-497737
...
355
WASHER, Sealing Included in Carburetor Kit-See Ref. 121. Included in Carburetor Gasket Set-Part No. 494385. BS-692255
...
358
GASKET SET, Engine BS-494241
...
524
SEAL, Dipstick Tube Included in Gasket Set-Part Number 494241. BS-281370S
...
537
SEAL, O-Ring Included in Valve Overhaul Gasket Set-Part No. 498539. Included in Gasket Set-Part Number 494241. BS-691917
...
537
SEAL, O-Ring Included in Gasket Set-Part Number 494241. Included in Valve Overhaul Gasket Set-Part No. 498539. BS-691917
...
634A
SPRING/SEAL ASSEMBLY (Choke-A-Matic) Included in Carburetor Kit-See Ref. 121. BS-690802
...
634
SPRING/SEAL ASSEMBLY (Manual Choke) Included in Carburetor Kit-See Ref. 121. BS-690801
...
977
KIT, Carburetor Overhaul BS-697241
...
987
SEAL, Choke/Throttle Shaft Included in Carburetor Kit-See Ref. 121. BS-691326
...
1095
GASKET SET, Valve BS-498539
