284H77-0114-E1 Briggs and Stratton Engine

Model: 284H77-0114-E1

Back To Assemblies

Save Part Not Listed?
product name

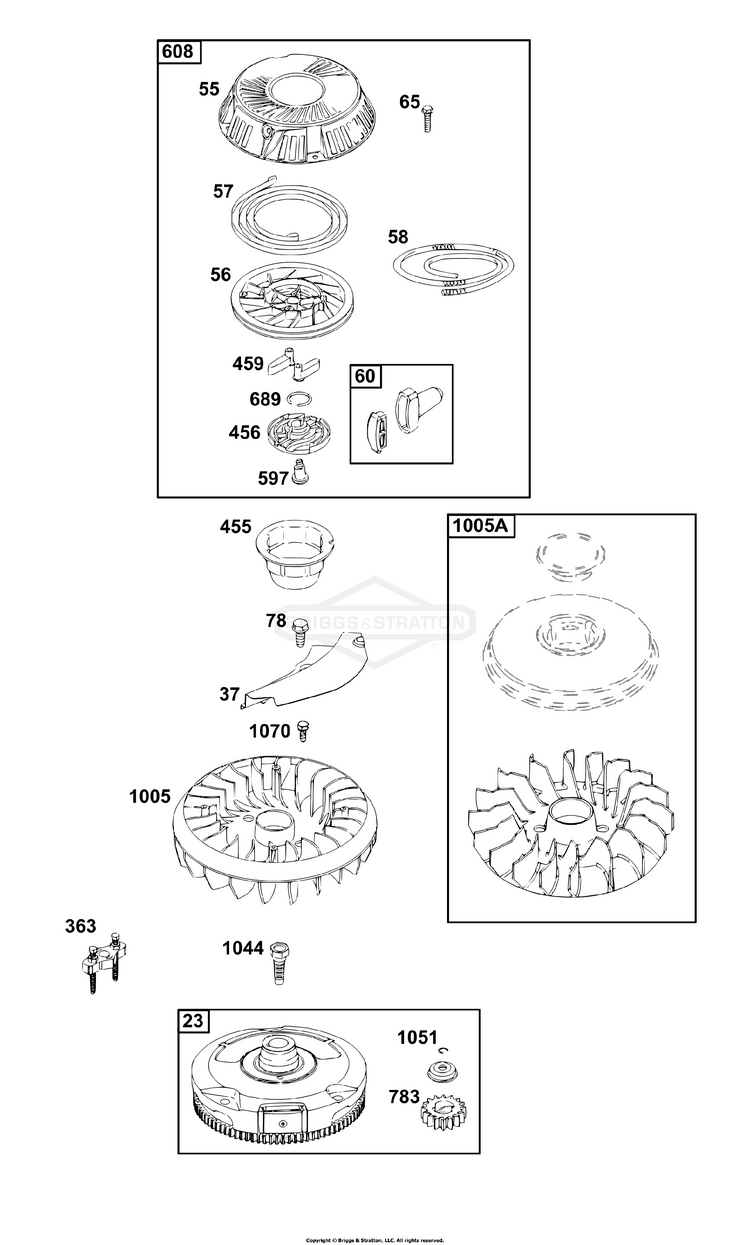

Flywheel, Rewind Starter

...
...
23
FLYWHEEL BS-595094
...
37
GUARD, Flywheel BS-697108
...
55
HOUSING, Rewind Starter BS-695130
...
56
PULLEY, Starter BS-695129
...
57
SPRING, Rewind Starter BS-695131
...
58
ROPE, Starter BS-695132
...
60
GRIP, Starter Rope BS-493926
...
65
SCREW (Rewind Starter) BS-697725
...
78
SCREW (Flywheel Guard) BS-691003
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-695113
...
456
PLATE, Pawl Friction BS-695128
...
459
PAWL-RATCHET BS-281505S
...
597
SCREW (Pawl Friction Plate) BS-691696
...
783
GEAR, Pinion (DC)(10-16 AMP) BS-593935
...
1005
FAN, Flywheel BS-697111
...
1005A
FAN-FLYWHEEL Used After Code Date 07040900 BS-796201
...
1044
SCREW (Flywheel) BS-698139
...
1051
RING, Retaining BS-691265
...
1070
SCREW (Flywheel Fan) BS-791680
