284707-1150-E1 Briggs and Stratton Engine

Model: 284707-1150-E1

Back To Assemblies

Save Part Not Listed?
product name

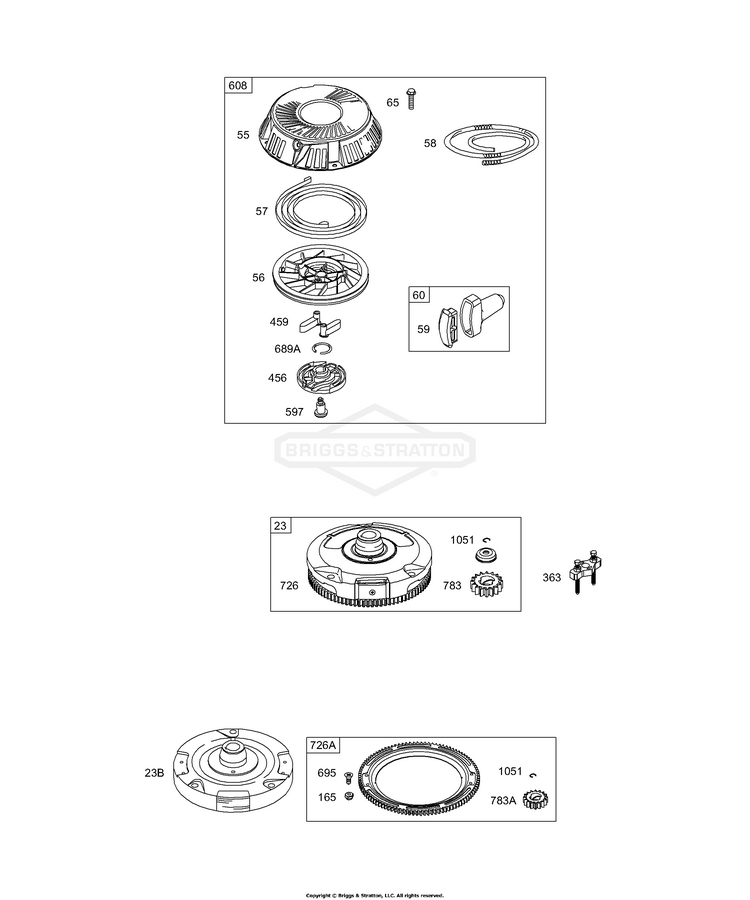

Flywheel, Rewind

...
...
23
FLYWHEEL (Steel Ring Gear) BS-595094
...
55
HOUSING, Rewind Starter BS-695130
...
56
PULLEY, Starter BS-695129
...
57
SPRING, Rewind Starter BS-695131
...
58
ROPE, Starter (59" Long) BS-695132
...
59
GRIP-STARTER ROPE BS-490652
...
60
GRIP-STARTER ROPE BS-490652
...
65
SCREW (Rewind Starter) BS-697725
...
165
NUT (Ring Gear) BS-693148
...
363
PULLER, Flywheel BS-19203
...
456
PLATE, Pawl Friction BS-695128
...
459
PAWL-RATCHET BS-281505S
...
597
SCREW (Pawl Friction Plate) BS-691696
...
608
STARTER, REWIND BS-84013160
...
689A
SPRING-FRICTION BS-691855
...
695
SCREW (Ring Gear) BS-693109
...
726A
GEAR, Ring (Aluminum)(Services Plastic Ring Gear Only) BS-696537
...
783
GEAR, Pinion (Steel Ring Gear) BS-593935
...
783A
GEAR-PINION BS-695708
...
1051
RING, Retaining BS-691265
