2691400-00 Murray - MRD300, 7220 107cm Murray Rear Discharge Lawn Tractor (CE/Export) (2017)

Model: 2691400-00

Back To Assemblies

Save Part Not Listed?
product name

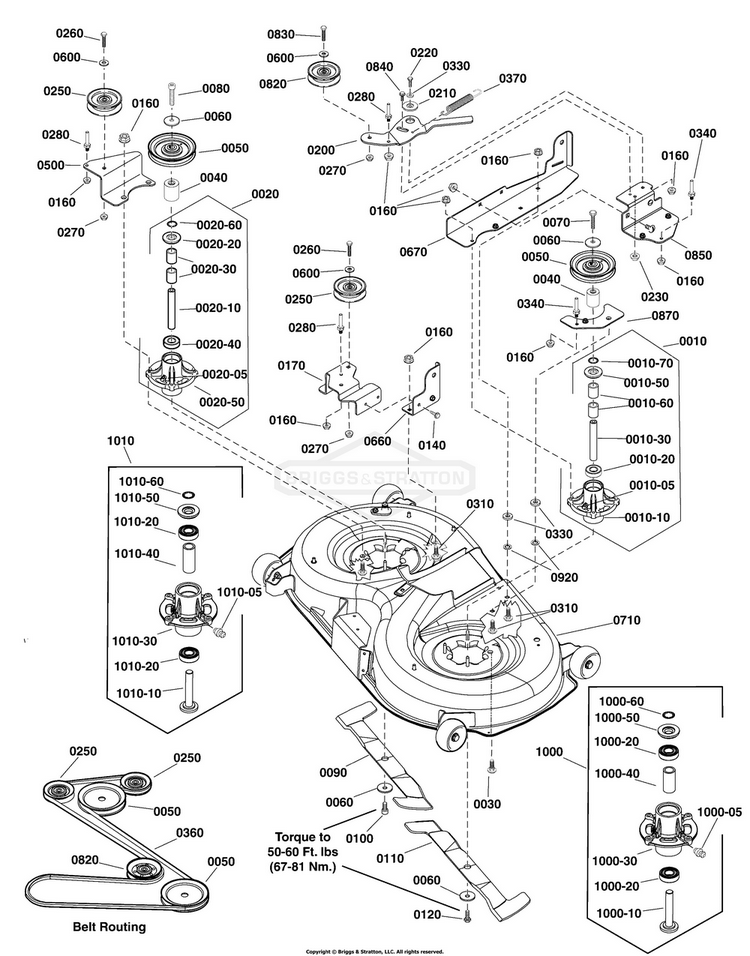

107cm Mower Deck - Housing, Arbors & Blades Group

...
...
0010
ARBOR ASSEMBLY (Includes Ref. Nos, 0010-10 through 0010-60)(Replaced by Ref. Nos. 1000, this arbor assembly is an exact replacement) BS-84003175
...
0010-05
ZERK, FITTING, 1/4 BS-703907
...
0010-10
HOUSING ASSEMBLY BS-84003654
...
0010-20
BEARING, Ball, 20mm BS-1735399YP
...
0010-30
SHAFT, SPINDLE (Replaced by Ref. Nos. 1000-30, this spindle shaft is an exact replacement for the shaft, shield and ring) BS-84003170
...
0010-50
COVER, ARBOR BS-84003166
...
0010-60
SPACER, Bearing (Replaced by Ref. Nos. 1000-50, this spacer is an exact replacement) BS-1735328YP
...
0010-70
RING, SELF LOCKING BS-1960766YP
...
1000
ARBOR ASSEMBLY BS-84003175
...
1000-05
ZERK, FITTING, 1/4 BS-703907
...
1000-10
SHAFT, SPINDLE BS-84003170
...
1000-20
BEARING, Ball, 20mm BS-1735399YP
...
1000-30
HOUSING ASSEMBLY BS-84003654
...
1000-40
SPACER, BEARING BS-84003167
...
1000-50
COVER, ARBOR BS-84003166
...
1000-60
RING, SELF LOCKING BS-1960766YP
...
0020
ARBOR ASSEMBLY (Includes Ref. Nos, 0020-10 through 0020-60)(Replaced by Ref. Nos. 1010, this arbor assembly is an exact replacement) BS-84003176
...
0020-05
ZERK, FITTING, 1/4 BS-703907
...
0020-10
SHAFT-SPINDLE (Replaced by Ref. Nos. 1010-30, this spindle shaft is an exact replacement for the shaft, shield and ring) BS-1760279YP
...
0020-20
COVER, ARBOR BS-84003166
...
0020-30
SPACER, Bearing (Replaced by Ref. Nos. 1010-50, this spacer is an exact replacement) BS-1735328YP
...
0020-40
BEARING, Ball, 20mm BS-1735399YP
...
0020-50
HOUSING ASSEMBLY BS-84003654
...
0020-60
RING, SELF LOCKING BS-1960766YP
...
1010
ARBOR ASSEMBLY BS-84003176
...
1010-05
ZERK, FITTING, 1/4 BS-703907
...
1010-10
SHAFT, Spindle BS-84003171
...
1010-20
BEARING, Ball, 20mm BS-1735399YP
...
1010-30
HOUSING ASSEMBLY BS-84003654
...
1010-40
SPACER, BEARING BS-84003167
...
1010-50
COVER, ARBOR BS-84003166
...
1010-60
RING, SELF LOCKING BS-1960766YP
...
0030
SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2 BS-1930600SM
...
0040
SPACER, Mower Drive BS-1750338YP
...
0050
PULLEY BS-1758750YP
...
0060
WASHER, SPRING 0.475I BS-1656916SM
...
0070
CAPSCREW-HEX HD 7/16- BS-1926110SM
...
0080
SCREW, 7/16-14X2.75 BS-703846
...
0090
BLADE, RH BS-1758513BMYP
...
0100
SCREW, 7/16-14X1 BS-703845
...
0110
BLADE, LH BS-1758514BMYP
...
0120
CAPSCREW, Hex Head, 7/16-14 X 1 BS-1920676SM
...
0140
SCREW, 5/16-18 X .75 BS-703228
...
0160
NUT, 5/16-18, GR5 BS-703409
...
0170
SUPPORT, Idler Arm BS-885723BMYP
...
0200
IDLER ARM BS-1758759BMYP
...
0210
SPACER-PIVOT 0.330ID BS-1727935SM
...
0220
BOLT BS-5025011X8FS
...
0230
NUT, HEX FLNG,5/16-18 BS-704067
...
0250
PULLEY, DECK IDLER BS-885482YP
...
0260
CAPSCREW, 3/8-16X2 BS-703589
...
0270
NUT, 3/8-16 BS-703333
...
0280
BELT GUIDE BS-885534YP
...
0310
BOLT, Round Head, Short Square Neck BS-703185
...
0330
WASHER, 5/16 BS-1919326SM
...
0340
BELT GUIDE, Long BS-1401105MA
...
0360
BELT BS-1758760YP
...
0370
SPRING, Extension BS-165X157MA
...
0500
BRACKET, Idler, Fixed BS-885845BMYP
...
0600
WASHER BS-704128
...
0660
BRACKET, Deck, Rear, RH BS-885720BMYP
...
0670
BRACKET, Deck, Rear, LH BS-885724BMYP
...
0710
KIT, Mower Deck 107cm, Crow Black BS-885827BMYP
...
0820
PULLEY, Idler BS-885937YP
...
0830
CAPSCREW,3/8-16X1.5 BS-703406
...
0840
BOLT, SHLDR, 5/16-18 BS-1752802YP
...
0850
BRACKET, Idler Mount BS-1758758BMYP
...
0870
PLATE, Belt Guide Mount BS-1758757BM
