2691400-00 Murray - MRD300, 7220 107cm Murray Rear Discharge Lawn Tractor (CE/Export) (2017)

Model: 2691400-00

Back To Assemblies

Save Part Not Listed?
product name

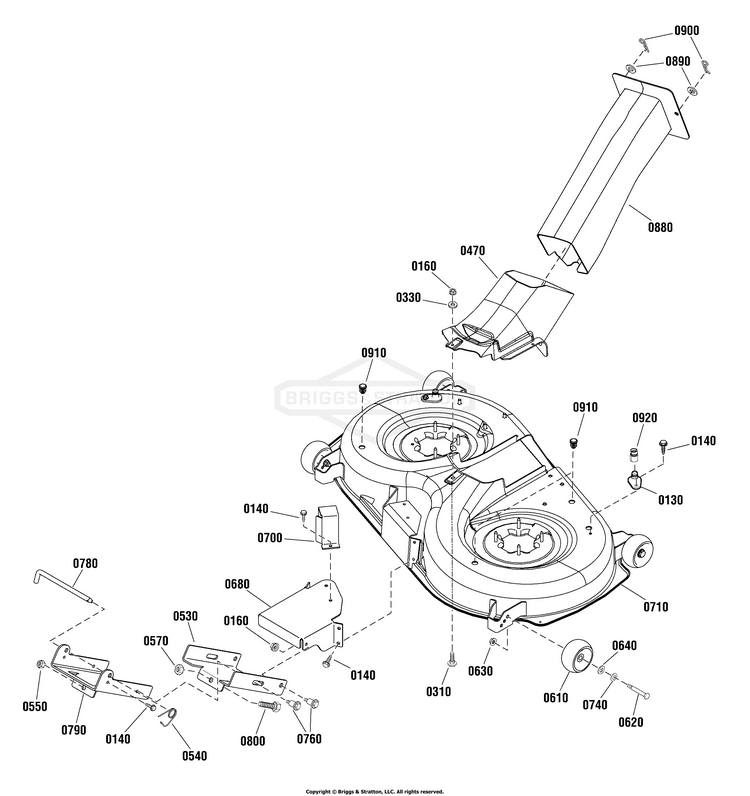

107cm Mower Deck - Support Group

...
...
0130
KIT, WASHOUT PORT BS-1687721YP
...
0140
SCREW, 5/16-18 X .75 BS-703228
...
0160
NUT, 5/16-18, GR5 BS-703409
...
0310
BOLT, Round Head, Short Square Neck BS-703185
...
0330
WASHER, 5/16 BS-1919326SM
...
0470
CENTER CAP BS-885719YP
...
0530
BRACKET, Front Connector BS-885734BMYP
...
0540
PIN, 5/16 X 0.375 BS-703852
...
0550
NUT, Hex Lock, 1/2-13 BS-1960379SM
...
0570
NUT, Hex Jam, 1/2-13 BS-1913744SM
...
0610
GAUGE WHEEL BS-1714760SM
...
0620
BOLT-WHEEL 3/8-16X2.7 BS-2108765SM
...
0630
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0640
WASHER, 0.516IDX1OD BS-703853
...
0680
SUPPORT, Front BS-885727BMYP
...
0700
BRACKET, Front Upstop BS-885728BMYP
...
0710
KIT, Mower Deck 107cm, Crow Black BS-885827BMYP
...
0740
WASHER,SPRING .52X.99 BS-0020X3MA
...
0760
BOLT-SHLDR 5/16-18 0. BS-1732426SM
...
0780
ROD, Latch BS-1731414SM
...
0790
BRACKET, Front Hanger BS-885699BMYP
...
0800
BOLT, 1/2 x 3 BS-885710YP
...
0880
CHUTE BS-885461YP
...
0890
WASHER, 0.516IDX1OD BS-703853
...
0900
PIN, 3/32 X 1.6 BS-703300
...
0910
PLUG, Hole, .44” OD BS-7046780SM
...
0920
CONNECTOR, Washout Port BS-1756246YP
