2691400-00 Murray - MRD300, 7220 107cm Murray Rear Discharge Lawn Tractor (CE/Export) (2017)

Model: 2691400-00

Back To Assemblies

Save Part Not Listed?
product name

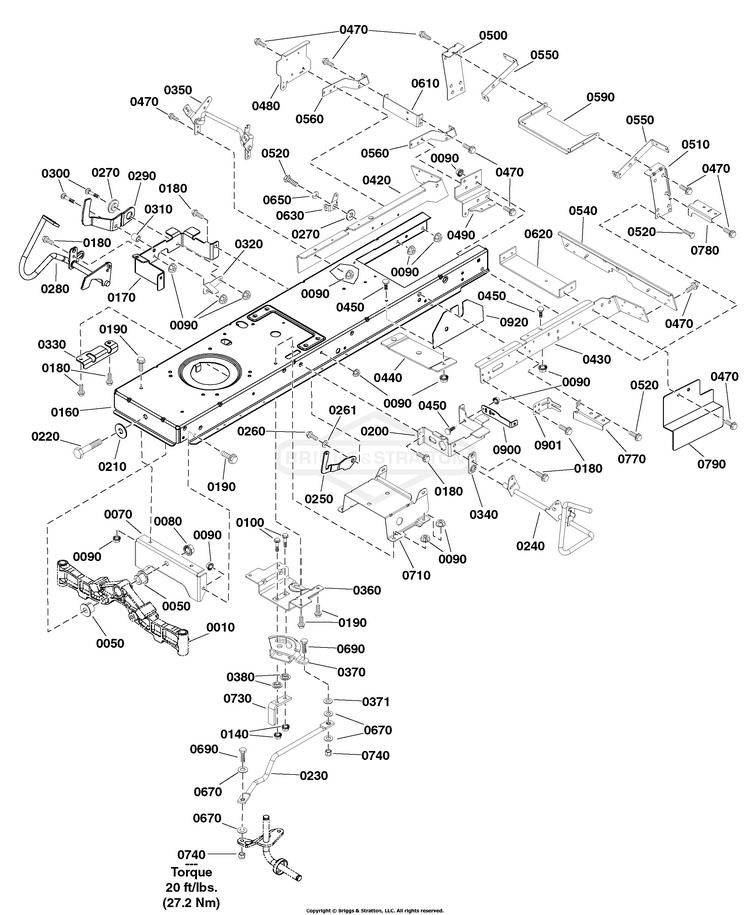

Frame Group

...
...
0050
BUSHING, Axle Pivot BS-1730186SM
...
0070
PLATE, Axle Support BS-1727902SM
...
0080
NUT, Hex Flange, 5/8-11 BS-2860646SM
...
0090
NUT, 5/16-18, GR5 BS-703409
...
0100
SCREW, Hex Head, 3/8-16 x 1 1/4 BS-1960032SM
...
0140
NUT, CNTR LCK, 3/8-16 BS-703893
...
0160
FRAME (Not a serviceable part) BS-1758743
...
0170
SUPPORT, Front Footrest, RH BS-1727904SM
...
0180
SCREW, 5/16-18.625 BS-703949
...
0190
SCREW, 5/16-18 BS-703354
...
0200
SUPPORT, Front Footrest L.H. BS-885536AYP
...
0210
WASHER-0.625(0.64IDX1 BS-1960035SM
...
0220
CAPSCREW, Hex Head, 5/8-11 x 3 1/4 BS-2860744SM
...
0230
LINK, Drag (with Bearing), 5/16 BS-1738051YP
...
0240
PEDAL ASSEMBLY, Brake BS-1755925YP
...
0250
LATCH, PARKING BRAKE BS-1761926CJYP
...
0260
BOLT, 5/16-18X1.15 BS-703851
...
0261
WASHER, Shim BS-7014296YP
...
0270
SPACER-PIVOT 0.330ID BS-1727935SM
...
0280
FORWARD PEDAL ASSEMBLY BS-1736714AYP
...
0290
PEDAL, Reverse BS-1727246SM
...
0300
BOLT, 5/16-18X1.25 G5 BS-703446
...
0310
SPACER, Foot Pedal BS-1728024SM
...
0320
ACTUATOR, RMO Switch BS-1728025BMYP
...
0330
BRACKET, PEDAL PIVOT BS-885591YP
...
0340
PLATE, Bearing BS-1727911ASM
...
0350
LIFT SHAFT ASSEMBLY BS-1758772YP
...
0360
BRACKET, Sector Support BS-1727940SM
...
0370
GEAR, Steering BS-1751110YP
...
0371
WASHER, 5/16 BS-703298
...
0380
SPACER, Sector Gear BS-1728122SM
...
0420
BRACKET, Rear Frame, RH BS-1758741YP
...
0430
BRACKET, Rear Frame, LH BS-1758740YP
...
0440
BRACE, Middle Cross BS-885532AYP
...
0450
BOLT, Round Head, Short Square Neck BS-703185
...
0470
SCREW, 5/16-18 X .75 BS-703228
...
0480
BRACKET, Transaxle, RH BS-885474AYP
...
0490
BRACKET, Transaxle, LH BS-885475AYP
...
0500
SUPPORT, Deck, R.H. BS-885411AYP
...
0510
SUPPORT, Deck, L.H. BS-885412AYP
...
0520
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
0540
BRACKET, Middle Back Plate BS-885469AYP
...
0550
SUPPORT, Upper, Back Plate BS-1758921YP
...
0560
SUPPORT, Lower, Back Plate BS-885467AYP
...
0590
BRACE, Cross Deck Support BS-885503AYP
...
0610
BRACKET, Torque BS-885890YP
...
0620
BRACKET, Idler Mount BS-885486AYP
...
0630
CLEVIS, Lift BS-1728990ASM
...
0650
WASHER-0.312(0.33IDX1 BS-1960044SM
...
0670
WASHER, 5/16 BS-1919326SM
...
0690
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
0710
Support, Battery BS-1727282SM
...
0730
UPSTOP BS-885791YP
...
0740
NUT, HEX FLNG,5/16-18 BS-704067
...
0770
BRACKET, Fuel Tank, Front BS-1758692YP
...
0780
BRACKET, Fuel Tank, Rear BS-1758691YP
...
0790
GUARD, Rear BS-885892YP
...
0900
SUPPORT BS-1759729CJYP
...
0901
SUPPORT, Frame BS-1759730CJYP
...
0920
GUARD, Midframe BS-1760020BMYP
