2691400-00 Murray - MRD300, 7220 107cm Murray Rear Discharge Lawn Tractor (CE/Export) (2017)

Model: 2691400-00

Back To Assemblies

Save Part Not Listed?

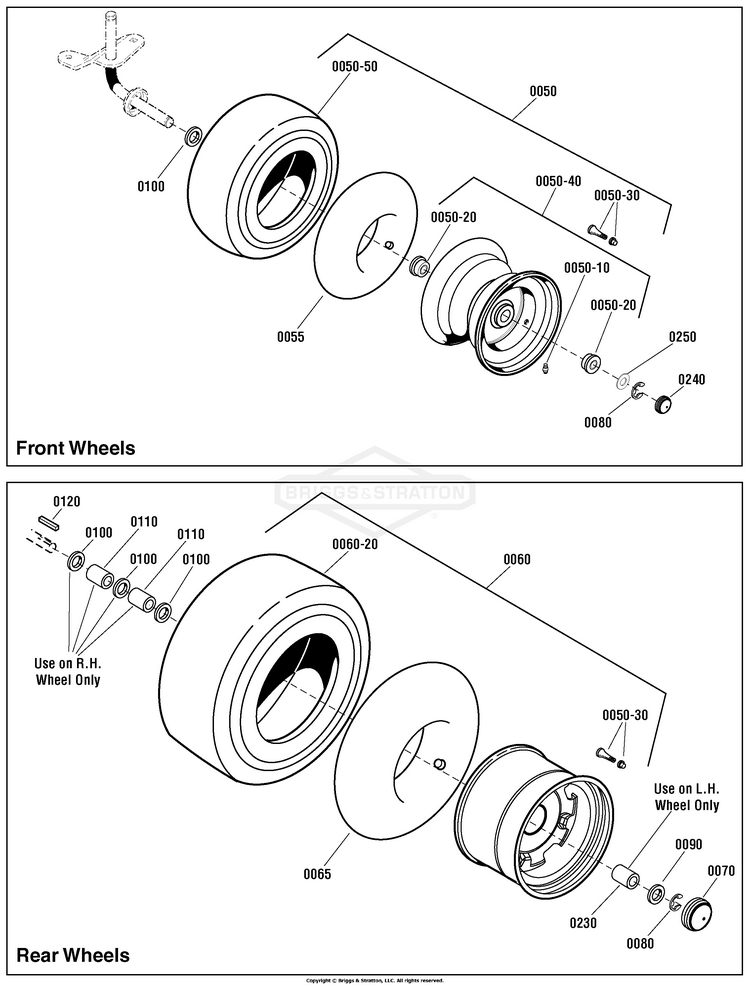

Wheel & Tire Group

0050

WHEEL AND TIRE ASSEMBLY, Front, 15 x 6-6 (Includes Ref. Nos. 0050-10, 0050-20, 0050-30, 0050-40 & 0050-50) BS-1761503YP

0050-10

FITTING, Lube BS-2812808SM

0050-20

BEARING, Wheel BS-1752171YP

0050-30

VALVE STM&CP,TR41 SE BS-024373MA

0050-40

WHEEL & BUSHINGS ASSEMBLY, Front (Includes Ref. Nos. 0050-10 & 0050-30) BS-1726301SM

0050-50

TIRE, Kenda, Turf Rider, Front, 15 x 6.00 - 6 BS-1731951SM

0055

TUBE, Tire, Front BS-1664090SM

0060

WHEEL & TIRE ASSEMBLY, Rear, 20 X 8-8 (Includes Ref. Nos. 0050-30 & 0060-20) BS-7101569YP

0065

TUBE, Tire, Rear BS-2164247SM

0070

HUB CAP BS-1722676SM

0080

RING, E .750D .050T BS-0011X3MA

0090

WASHER, Flat BS-1722717SM

0100

WASHER, Flat, 3/4 x 1-1/4 BS-17X160MA

0110

SPACER, 3/4 ID x 1-1/4 OD x 1-5/8, RH (Use on R.H. Side Only) BS-1730181SM

0120

KEY, Square, 3/16 BS-021553MA

0230

SPACER, Wheel, LH (Use on L.H. Side Only) BS-885578YP

0240

HUBCAP BS-1722675SM

0250

WASHER, 3/4 BS-1960160SM
