2691400-00 Murray - MRD300, 7220 107cm Murray Rear Discharge Lawn Tractor (CE/Export) (2017)

Model: 2691400-00

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

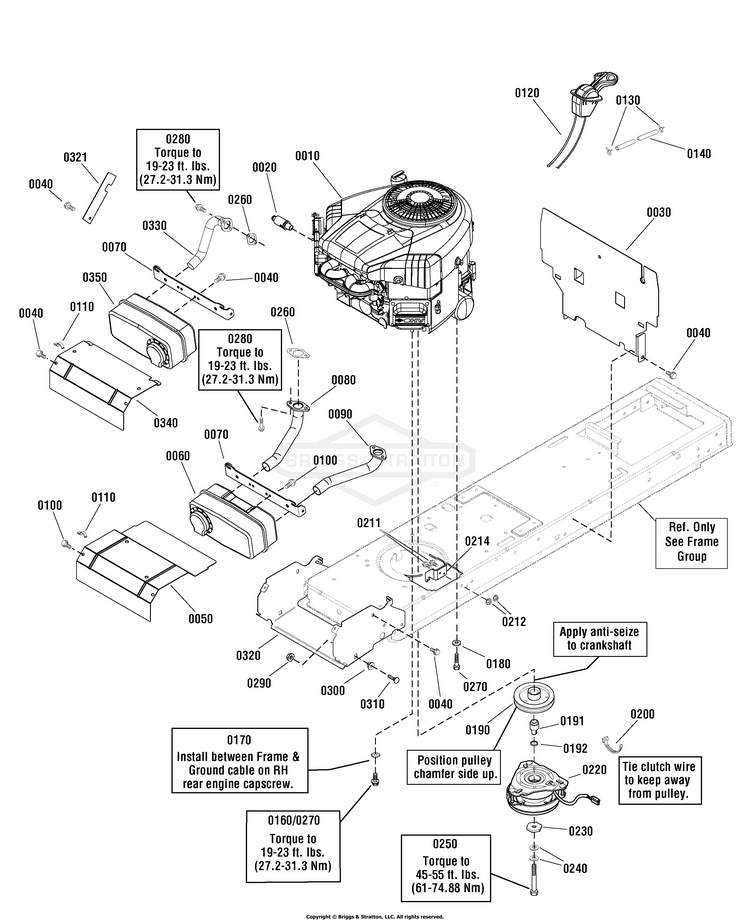

Engine Group

...
...
0010
* ENGINE, Briggs & Stratton 4195 Series Intek, Single (Engine Model: 31R977-0039-B1) BS-31R977-0039-B1
...
0010
* ENGINE, Briggs & Stratton 7220 Intek, Twin Series (Engine Model: 40R877-0025-B1) BS-40R877-0025-B1
...
0010
* ENGINE, Briggs & Stratton 8270 Twin Series (Engine Model: 44S877-0039-B1) BS-44S877-0039-B1
...
0020
VALVE, Drain BS-1750159YP
...
0030
HEAT SHIELD, Engine BS-1728058BMYP
...
0040
SCREW, 5/16-18.625 (Qty 8 used on Twin) BS-703949
...
0050
HEAT SHIELD, Engine, Twin (Twin) BS-1727997ASM
...
0060
MUFFLER, Twin (Twin) BS-885954YP
...
0070
SUPPORT, Muffler & Hood Pivot Ecoat (Single) BS-1727982ASM
...
0070
SUPPORT, Muffler (Twin) BS-1727976BMYP
...
0080
PIPE, Exhaust, Flanged, R.H, 11/8 OD (Twin) BS-1727979SM
...
0090
PIPE, Exhaust, Flanged, L.H, 11/8 OD (Twin) BS-1727980SM
...
0100
SCREW, HEX, 1/4-20X.5 (Qty 4 used on Twin) BS-704130
...
0110
CLIP- WIRE DIA .390 BS-2172434SM
...
0120
CONTROL Throttle, Choke-a-Matic (Single) BS-1751734YP
...
0120
CONTROL, Throttle, Choke-A-Matic (Twin) BS-1736868YP
...
0130
CLAMP, Hose BS-791850
...
0140
LINE-FUEL BS-845503
...
0160
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 (Twin) BS-704000
...
0170
WASHER, EXT, 3/8 (Twin) BS-703864
...
0180
WASHER, EXT, 3/8 (Single) BS-703864
...
0190
PULLEY & HUB ASSEMBLY, Engine BS-1732576SM
...
0191
SPACER, Electric Clutch BS-885679YP
...
0192
SPACER, Electric Clutch, Lower BS-885810YP
...
0200
TIE, Self Locking, 15" Long BS-1701011SM
...
0211
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
0212
NUT, 5/16-18, GR5 BS-703409
...
0214
BRACKET, Electric Clutch Torque BS-885535AYP
...
0220
CLUTCH, Electric, GT1A-EH07 BS-885680YP
...
0230
WASHER, HEX, 0.453ID BS-1708264SM
...
0240
WASHER, Belleville BS-1960769YP
...
0250
CAPSCREW, Hex Head, 7/16-20 x 5, G5 BS-7102075YP
...
0260
GASKET, Exhaust (Qty 2 used on Twin) BS-690970
...
0270
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 (Single) BS-704000
...
0280
SCREW (Qty 4 used on Twin) BS-690341
...
0290
NUT, 5/16-18, GR5 BS-703409
...
0300
PIVOT, Hood, Powdered Metal BS-1728086SM
...
0310
BOLT, CRRG, 5/16-18X1 BS-703800
...
0320
SUPPORT, Muffler & Hood Pivot BS-1738265AYP
...
0321
GUARD, Pulley, Rear (Single) BS-1736025BMYP
...
0320
BRACKET, Muffler (Single) BS-1759176BMYP
...
0330
PIPE, Exhaust, Flanged, 1-1/4 OD (Single) BS-1728959SM
...
0340
HEAT SHIELD, Outer Single (Single) BS-7300918ASM
...
0350
MUFFLER, Single (Single) BS-885615YP
