2691400-00 Murray - MRD300, 7220 107cm Murray Rear Discharge Lawn Tractor (CE/Export) (2017)

Model: 2691400-00

Back To Assemblies

Save Part Not Listed?
product name

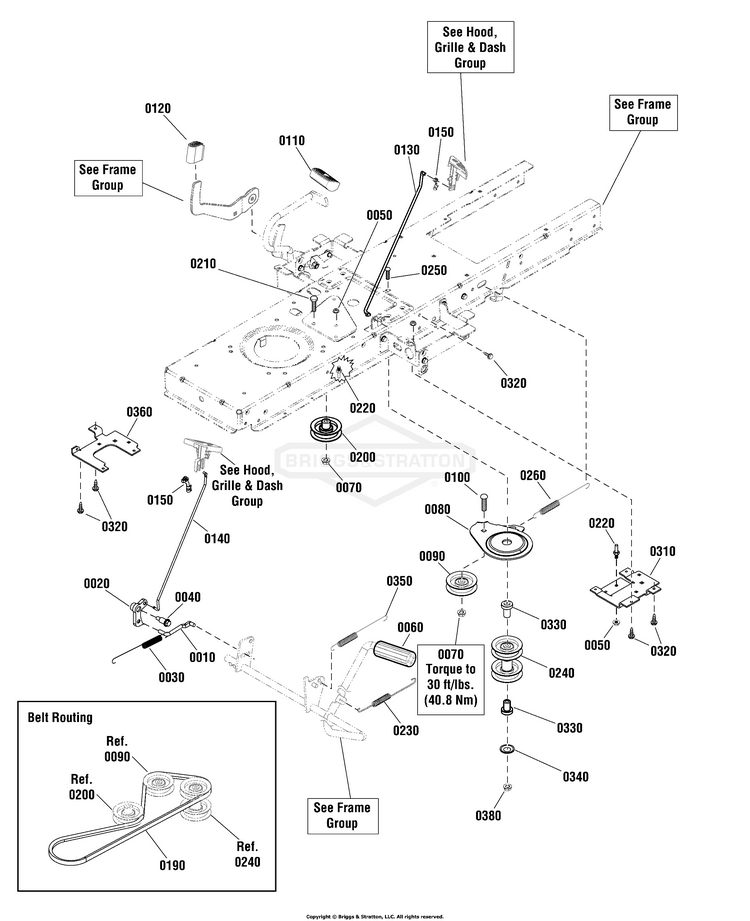

Controls Group

...
...
0010
ROD, Cruise Latch, 2.83" BS-1727899SM
...
0020
LATCH, Cruise BS-1727897SM
...
0030
SPRING, Extension 7-3/4 BS-2159181SM
...
0040
BOLT, Shoulder, 5/16-18 x 1-5/8 BS-1728976SM
...
0050
NUT, 5/16-18, GR5 BS-703409
...
0060
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
0070
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0080
BRACKET, Idler Front Movable BS-885410AYP
...
0090
PULLEY, Idler BS-1760012YP
...
0100
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 BS-1960268SM
...
0110
PAD, Foot Pedal, Forward BS-1721675SM
...
0120
PAD, Foot Pedal, Reverse BS-1727259SM
...
0130
ROD, Parking Brake, 16-3/8" BS-1727267SM
...
0140
ROD, Cruise Latch, 17" BS-1738760YP
...
0150
CLIP, Linkage, Black BS-1728111SM
...
0190
BELT, Primary, M/D (47.89" EL, HA Section) BS-885895YP
...
0200
IDLER, Backside BS-885894YP
...
0210
BOLT, 3/8-16 X 1-3/4" BS-5025013X14SM
...
0220
BELT GUIDE BS-885534YP
...
0230
SPRING, Extension BS-885421YP
...
0240
PULLEY, Secondary Stack BS-885426YP
...
0250
BOLT, Carriage, 3/8-16 x 5 BS-885577YP
...
0260
SPRING, Extension 7-1/2" BS-1729620SM
...
0310
BRACKET, Stack Pulley, Left BS-885684BMYP
...
0320
SCREW, 5/16-18 X .75 BS-703228
...
0330
SPACER BS-885575YP
...
0340
RETAINER, PUSHNUT,3/8 BS-703986
...
0350
SPRING, Extension, 5/8 x 6-5/8 BS-1721995SM
...
0360
BRACKET, Stack Pulley, Right BS-885685BMYP
...
0380
NUT, CNTR LCK, 3/8-16 BS-703893
