2691399-00 Murray - MRD200, 7200 96cm Murray Rear Discharge Lawn Tractor (CE/Export) (2017)

Model: 2691399-00

Back To Assemblies

Save Part Not Listed?
product name

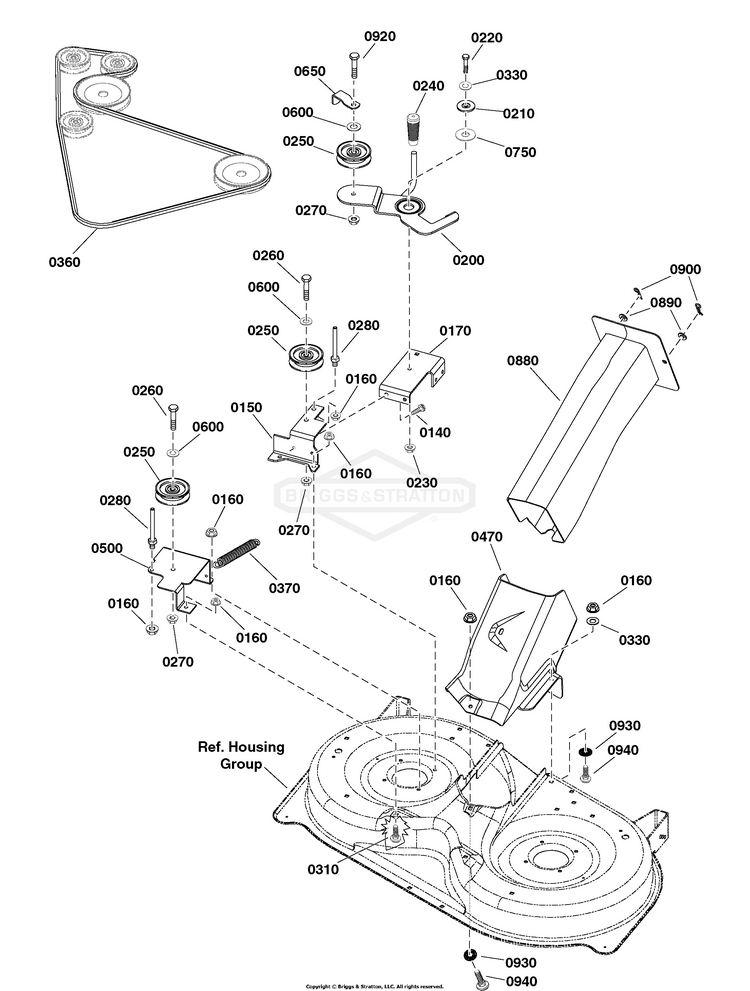

96cm Mower Deck - Clutch Group

...
...
0140
SCREW, 5/16-18 X .75 BS-703228
...
0150
BRACKET, Idler, RH BS-1758773BMYP
...
0160
NUT, 5/16-18, GR5 BS-703409
...
0170
SUPPORT, Idler Arm BS-885516AYP
...
0200
DECK IDLER ASSEMBLY BS-885559AYP
...
0210
SPACER-PIVOT 0.330ID BS-1727935SM
...
0220
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
0230
NUT, HEX FLNG,5/16-18 BS-704067
...
0240
GRIP BS-1753233YP
...
0250
PULLEY, DECK IDLER BS-885482YP
...
0260
CAPSCREW, 3/8-16X2 BS-703589
...
0270
NUT, 3/8-16 BS-703333
...
0280
BELT GUIDE BS-885534YP
...
0310
BOLT, Round Head, Short Square Neck BS-703185
...
0330
WASHER, 5/16 BS-1919326SM
...
0330
WASHER, 5/16 BS-1919326SM
...
0360
BELT, Deck BS-1758762YP
...
0370
SPRING, EXTENSION, 1. BS-1715435SM
...
0470
DECK, Center Cap BS-885460YP
...
0500
BRACKET, Idler, Fixed BS-885556AYP
...
0600
WASHER BS-704128
...
0650
GUARD, Belt BS-1677135ASM
...
0750
SHIM BS-885675YP
...
0880
CHUTE BS-885461YP
...
0890
WASHER, 0.516IDX1OD BS-703853
...
0900
PIN, 3/32 X 1.6 BS-703300
...
0920
SCREW BS-703872
