2691399-00 Murray - MRD200, 7200 96cm Murray Rear Discharge Lawn Tractor (CE/Export) (2017)

Model: 2691399-00

Back To Assemblies

Save Part Not Listed?
product name

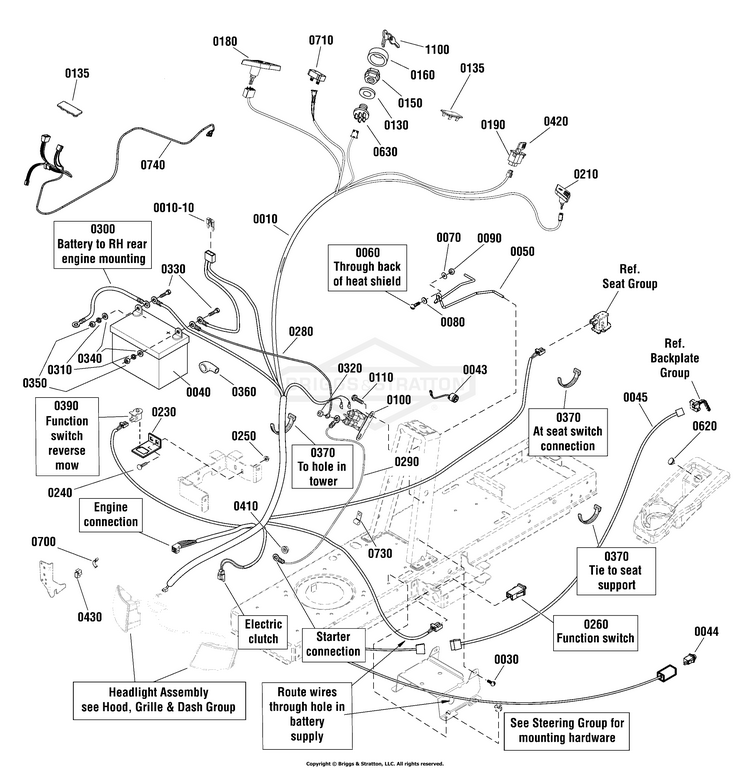

Electrical Group

...
...
0010
WIRING HARNESS BS-1758955YP
...
0030
SCREW, 5/16-18.625 BS-703949
...
0043
BUZZER, Bag Full BS-1758779YP
...
0044
SWITCH, Bagger BS-1001845MA
...
0045
HARNESS, Bag Full BS-885692YP
...
0050
HOLD DOWN, Battery, 1/4 Dia. BS-1730007SM
...
0060
BOLT, Carriage, Short Neck, 1/4-20 x 7/8 G5 BS-1931318SM
...
0070
WASHER, 1/4 BS-703229
...
0080
BOLT, PUSHNUT 1/4 BS-703826
...
0090
NUT, 1/4-20, NYLOCK BS-703232
...
0100
SOLENOID, L-BRACKET BS-1755381YP
...
0110
SCREW, HEX, 1/4-20X.5 BS-704130
...
0130
WASHER, 5/8 BS-2101025SM
...
0135
PLUG-HOLE BLACK BS-1722611SM
...
0150
SET, Washer/Nut BS-847144
...
0160
CAP, Switch BS-847150
...
0180
SWITCH, PTO BS-1738982YP
...
0190
SWITCH BS-84008079
...
0210
SWITCH, Light BS-1738983YP
...
0230
SUPPORT, RMO Switch BS-1728026BMYP
...
0240
BOLT, Round Head, Short Square Neck BS-703185
...
0250
NUT, 5/16-18, GR5 BS-703409
...
0260
SWITCH, DP NO/NC SNAP BS-7022886YP
...
0280
CABLE, Two Ring, #6 x 10 BS-1752685YP
...
0290
CABLE,#6 x 25 BS-1751450YP
...
0300
CABLE, # 6 x 26 BS-1752686YP
...
0310
WASHER BS-5025169FS
...
0320
NUT-HEX KEPS 5/16-24 BS-2860750SM
...
0330
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
0340
WASHER BS-703332
...
0350
NUT BS-703127
...
0360
BOOT,INSULATOR BATTER BS-1677296SM
...
0370
TIE, SELF LOCKING BS-703586
...
0390
SWITCH-PUSH BUTTON BS-1732004SM
...
0410
NUT, 1/4-20, GR5 BS-703233
...
0420
KEY BS-84013445
...
0430
CLIP- WIRE DIA .390 BS-2172434SM
...
0620
PLUG, Hole, 7/8 Dia. BS-1732007SM
...
0630
SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr BS-1737853YP
...
0700
CLIP, Wire BS-703176
...
0710
METER-HOUR DIGITAL NO BS-1731185SM
...
0710
PLUG, Hole, 1.180 X 1.690 BS-1729993SM
...
0730
CLIP, Wire, 7/16 BS-7012652YP
...
0740
HARNESS, Jumper BS-1758739YP
...
1100
KEYS, Ignition BS-1737837YP
