2691399-00 Murray - MRD200, 7200 96cm Murray Rear Discharge Lawn Tractor (CE/Export) (2017)

Model: 2691399-00

Back To Assemblies

Save Part Not Listed?
product name

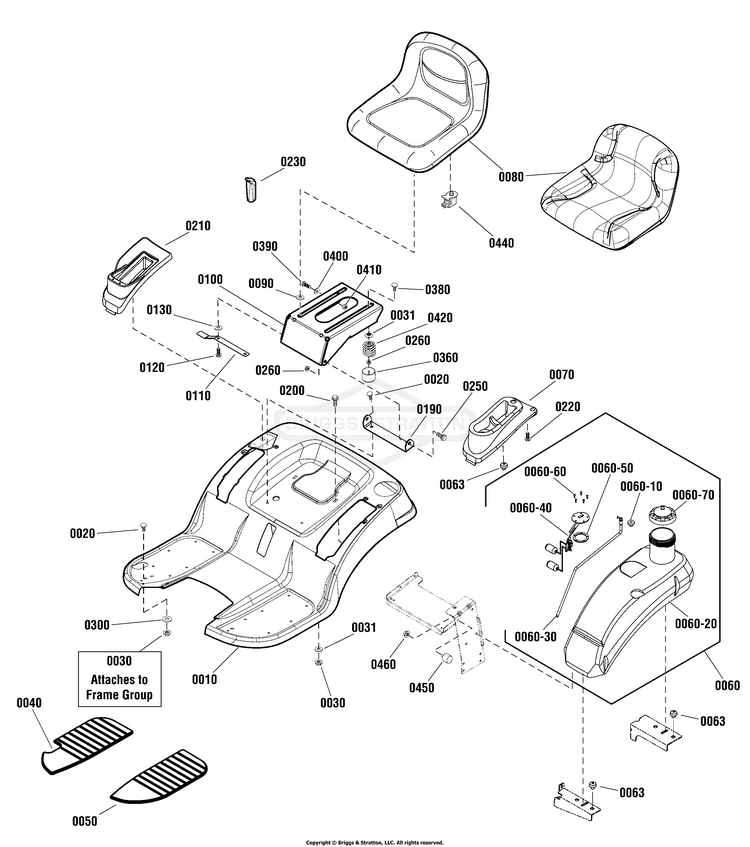

Seat Deck & Fuel Tank Group

...
...
0020
BOLT, Round Head, Short Square Neck BS-703185
...
0030
NUT, 5/16-18, GR5 BS-703409
...
0031
WASHER, Spring, 5/16 x 1 1/4 BS-1709256SM
...
0040
PAD, Footrest, RH BS-1728007SM
...
0050
PAD, Footrest, LH BS-1728006SM
...
0060
FUEL TANK ASSEMBLY BS-1758610YP
...
0060-10
BUSHING, Fuel Tank BS-1654930SM
...
0060-30
TUBE, Fuel Pickup BS-1758506YP
...
0060-40
SENDER, Fuel BS-1758611YP
...
0060-50
PLATE, Mounting, Fuel Sender BS-1758898YP
...
0060-60
SCREW, Pan Head, Torx, SEMS, #10-32 x 1/2 BS-2860665SM
...
0060-70
CAP, Fuel BS-1758609YP
...
0063
MOUNT-VIBRATION BS-197546GS
...
0070
POD, LH BS-1758774YP
...
0080
SEAT, 11" BS-1754214YP
...
0080
SEAT BS-84003801
...
0090
SPACER, 5/16 ID x 1-1/4 OD x 5/16" BS-1731300SM
...
0100
SUPPORT, Seat BS-1755767BMYP
...
0110
LATCH, Seat BS-1727268BMYP
...
0120
SCREW, Hex Flange, Whiz Lock, 5/16-1-1/4 BS-1930595SM
...
0130
WASHER, 5/16 BS-703298
...
0190
PIVOT, Seat BS-885538AYP
...
0200
SCREW, 5/16-18.625 BS-703949
...
0210
POD, RH BS-1739537YP
...
0220
SCREW, HEX WSHR HD PL BS-1960536SM
...
0230
GRIP BS-1722302SM
...
0250
BOLT, 5/16-18X1.15 BS-703851
...
0260
NUT BS-703115
...
0300
WASHER, Rubber BS-885382YP
...
0360
COVER, Spring BS-1704724SM
...
0380
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
0390
CAPSCREW, Hex Head, 1/2-13 x 1, GR 5 BS-1923114SM
...
0400
WASHER, 0.516IDX1OD BS-703853
...
0410
NUT, Hex, 1/2-13 BS-5025038SM
...
0420
SPRING, Compression BS-1704728SM
...
0440
SWITCH, SEAT BS-7023354YP
...
0450
BUMPER, RUBBER 1/4-20 BS-5022673SM
...
0460
NUT, 1/4-20, GR5 BS-703233
