2691215-00 Murray - EQ700X, Murray 21" Self Propelled Walk Behind Mower (2014)

Model: 2691215-00

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

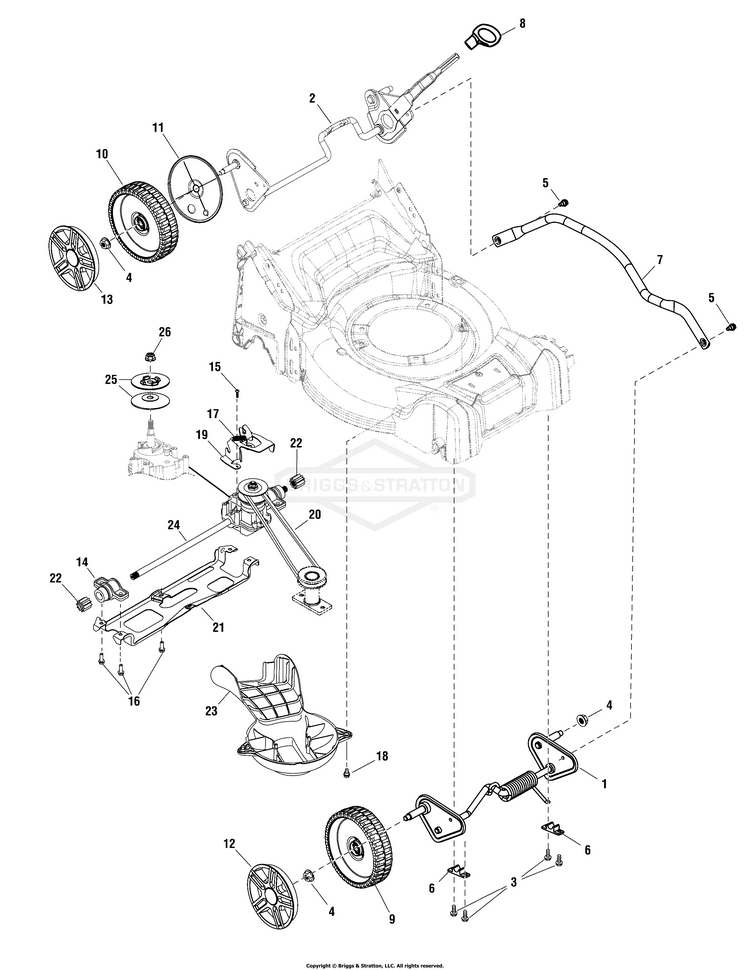

Drive Group (2691215)

...
...
1
AXLE, Front BS-704819
...
2
AXLE, Rear BS-704818
...
3
SCREW, Hex Hd., Slotted, Plastite, 1/4-10 x 5/8 BS-1960728SM
...
4
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
5
SCREW, 1/4-20 x 1/2 BS-703714
...
6
BUSHING, Lock BS-703524
...
7
TUBE BS-704707
...
8
KNOB, Red BS-704780
...
8
KNOB, Black BS-703648
...
9
WHEEL, Front BS-704805
...
10
WHEEL, Drive BS-704802
...
11
DUST COVER, Wheel BS-703503
...
12
HUBCAP BS-704738
...
13
HUBCAP, Rear BS-704737
...
14
BEARING ASSEMBLY BS-703469
...
15
SCREW, Hex Washer Head, .159 x .43 BS-703479
...
16
SCREW, Hex Washer Head, HI-LO, 1/4-15 x 1-1/4 BS-1751399YP
...
17
SPRING BS-703516
...
18
SCREW, 1/4-20 x 1/2 BS-703714
...
19
BRACKET BS-704694
...
20
BELT BS-704702
...
21
BRACKET, Rear Support BS-703542
...
22
WASHER ( Refer to Note: *) BS-880615YP
...
23
COVER, Rear BS-704814
...
24
TRANSMISSON ( Refer to Note: *) BS-1761289YP
...
25
PULLEY HALF BS-704698
...
26
NUT, Lock BS-704783
