2691119-00 Murray - EMT17538RDF, 17.5 Gross HP 96cm Murray Rear Discharge Lawn Tractor (CE/Export) (2013)

Model: 2691119-00

Back To Assemblies

Save Part Not Listed?
product name

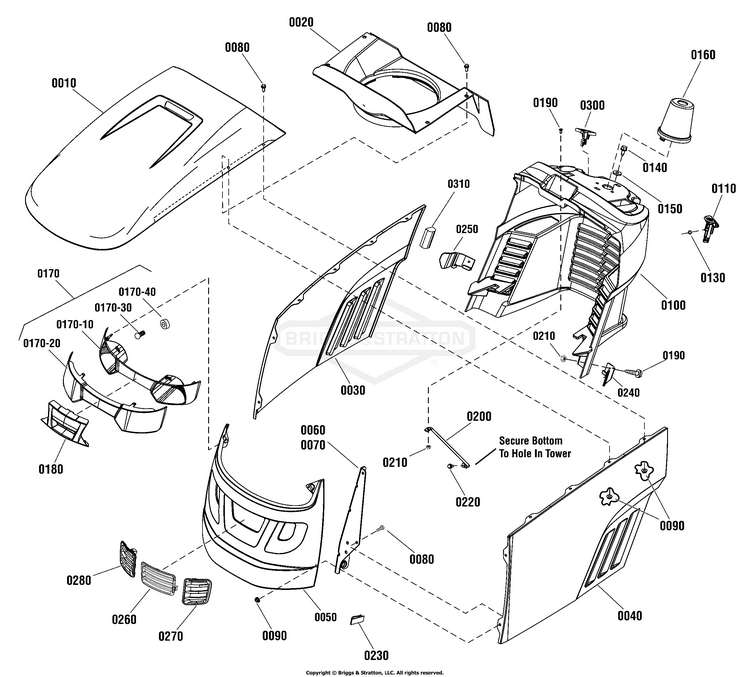

Hood, Grille & Dash Group (885775a)

...
...
0010
HOOD, With Scoop BS-1728031BIYP
...
0020
AIR DUCT, Plenum BS-7102326YP
...
0030
PANEL, Side, R.H. BS-1727294BIYP
...
0040
PANEL, Side, L.H. BS-1727295BIYP
...
0050
GRILLE BS-1738914BIYP
...
0060
HINGE, HOOD, LH ECOAT BS-1727279BMYP
...
0070
HINGE, Hood, R.H. BS-1727280ASM
...
0080
CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8 BS-1960295SM
...
0090
NUT BS-703161
...
0100
CONSOLE BS-885571YP
...
0110
KNOB, Brake Lock, Red BS-1728089SM
...
0130
BOLT, PUSHNUT 1/4 BS-703826
...
0140
SCREW, 5/16-18 X .75 BS-703228
...
0150
WASHER, 5/16 BS-703298
...
0160
COVER BS-1739106YP
...
0170
HEADLIGHT ASMY-HUNTER BS-1727296SM
...
0170-10
HEADLIGHT ASMY-HUNTER BS-1727296SM
...
0170-20
HEADLIGHT ASMY-HUNTER BS-1727296SM
...
0170-30
BULB-HEADLIGHT 1 BS-1677371SM
...
0170-40
SOCKET BS-1723451SM
...
0180
INSERT, Lightbar BS-1728975SM
...
0190
SCREW, Pan Head Phillips, #10-24 x 7/8 BS-1739942YP
...
0200
ROD, Bagger Support BS-885435AYP
...
0210
NUT, NYLOCK, 10-24 BS-703412
...
0220
SCREW, HEX, 1/4-20X.5 BS-704130
...
0230
CLIP BS-028X83MA
...
0240
GUIDE, Hood, LH BS-1732030SM
...
0250
GUIDE, Hood, RH BS-1732031SM
...
0260
INSERT, Grille, Center BS-1741762MA
...
0270
INSERT, Grille, LH BS-1741763MA
...
0280
INSERT, Grille, RH BS-1741764MA
...
0300
KNOB, Cruise Lock BS-1728090SM
...
0310
POSITIONER, Hood BS-1754094YP
