2691119-00 Murray - EMT17538RDF, 17.5 Gross HP 96cm Murray Rear Discharge Lawn Tractor (CE/Export) (2013)

Model: 2691119-00

Back To Assemblies

Save Part Not Listed?
product name

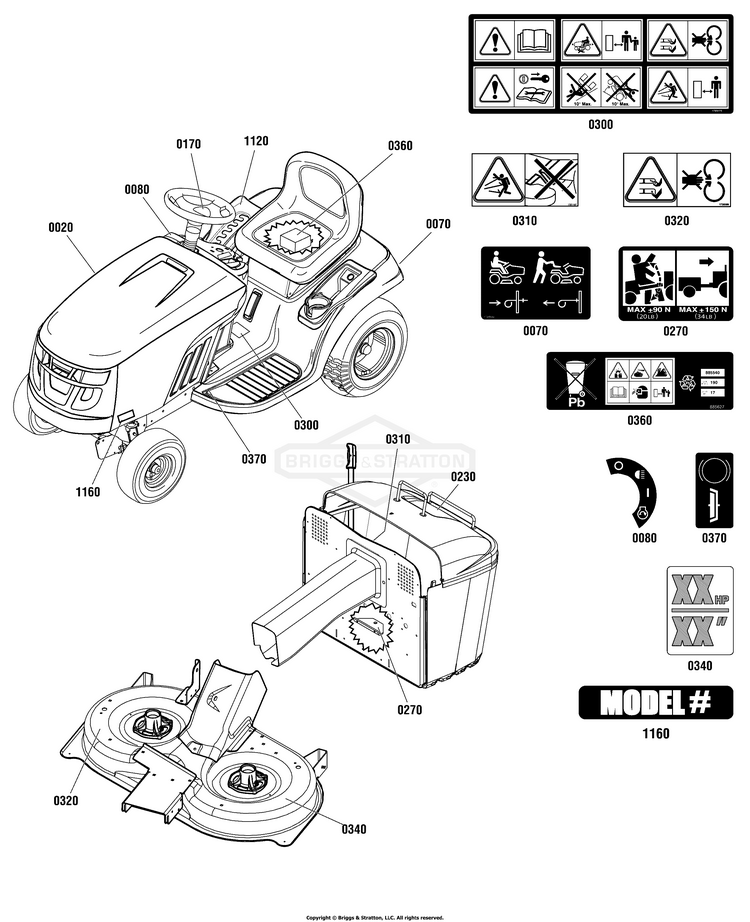

Decal Group (D885820_D885930)

...
...
0020
DECAL, Murray BS-1739087YP
...
0070
DECAL, Roll Release BS-7101935YP
...
0080
DECAL, Ignition Switch Symbols BS-885749YP
...
0170
DECAL, Steering Wheel BS-1737167YP
...
0230
DECAL, Murray BS-1739088YP
...
0270
DECAL, Drawbar Warning Symbol BS-48X511MA
...
0300
DECAL, Tunnel BS-1723175SM
...
0310
DECAL, Discharge Tube Symbols BS-1721107SM
...
0320
DECAL-DANGER ROTATING BS-1720389SM
...
0340
DECAL, Cutting Width, 96cm BS-885624YP
...
0340
DECAL, Cutting Width, 107cm BS-7102763YP
...
0360
DECAL, Battery BS-885627YP
...
0370
DECAL, Clutch/Brake BS-48X736MA
...
1120
DECAL, Height of Cut BS-1730264SM
...
1160
DECAL, Model, EMT17538RDF BS-885778YP
...
1160
DECAL, Model, EMT1838RDF BS-885781YP
...
1160
DECAL, Model, EMT2242RDF BS-885877YP
...
1160
DECAL, Model, EMT2642RDF BS-885878YP
