2690912 Murray - Bad Boy, 24HP 46" AWS

Model: 2690912

Back To Assemblies

Save Part Not Listed?
product name

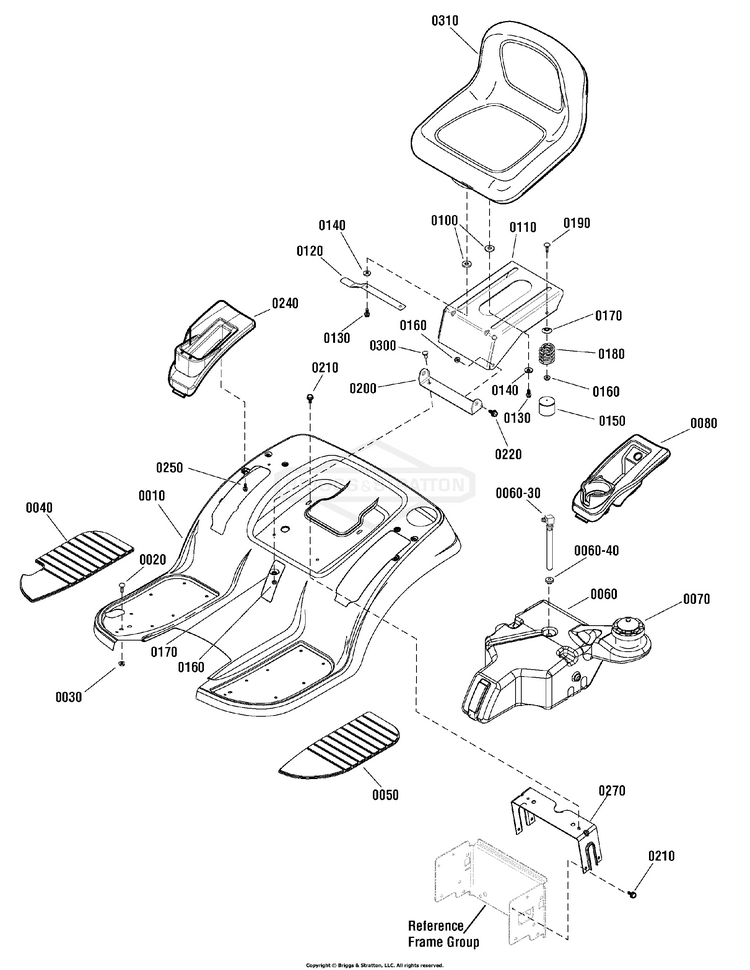

Seat Deck & Fuel Tank Group

...
...
0010
DECK, Seat BS-1727264BQYP
...
0020
BOLT, Round Head, Short Square Neck BS-703185
...
0030
NUT, 5/16-18, GR5 BS-703409
...
0040
PAD, Footrest, Right BS-1728007SM
...
0050
PAD, Footrest, Left BS-1728006SM
...
0060
TANK, Fuel BS-1738932YP
...
0060-30
FITTING & HOSE ASSEMBLY, Fuel Tank BS-1736609YP
...
0060-40
BUSHING, Fuel Tank BS-1654930SM
...
0070
CAP, FUEL, VENTED BS-5101651SM
...
0080
POD, LH BS-1739015YP
...
0100
SPACER, 5/16 ID x 1-1/4 OD x 5/16 BS-1731300SM
...
0110
SUPPORT, Seat BS-1727265SM
...
0120
LATCH-SEAT 20GA HUNTE BS-1727268SM
...
0130
SCREW, Flange, DOG PT, 5/16-18 x 1.0 BS-1960667SM
...
0140
WASHER, 5/16 BS-703298
...
0150
COVER, Spring BS-1704724SM
...
0160
NUT BS-703115
...
0170
WASHER, Spring, 5/16 x 1 1/4 BS-1709256SM
...
0180
SPRING, Compression BS-1704728SM
...
0190
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
0200
KIT, REPAIR BS-1687866
...
0210
SCREW, 5/16-18.625 BS-703949
...
0220
BOLT, 5/16-18X1.15 BS-703851
...
0240
POD, RH BS-1738795YP
...
0250
SCREW, HEX WSHR HD PL BS-1960536SM
...
0270
SUPPORT, Seat Deck BS-1731310SM
...
0300
BOLT, 5/16-18X.875 BS-704065
...
0310
SEAT, High Back BS-1730159SM
