2690912 Murray - Bad Boy, 24HP 46" AWS

Model: 2690912

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

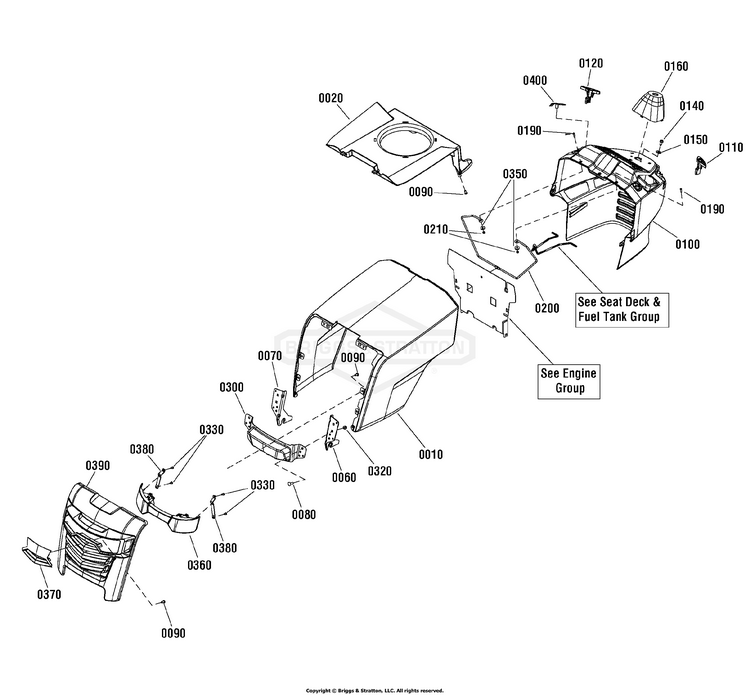

Hood, Grille & Dash Group

...
...
0010
HOOD BS-1750388BQYP
...
0020
PLENUM, Air Duct BS-1738734YP
...
0060
HINGE, Hood LH BS-1738566AYP
...
0070
HINGE, Hood RH BS-1738565AYP
...
0080
BOLT, 5/16-18 X 1", C BS-5025145X8SM
...
0090
SCREW BS-1754203YP
...
0100
DASH, Black BS-1738423YP
...
0110
KNOB, Parking Brake BS-1738789YP
...
0120
KNOB, Cruise BS-1738788YP
...
0140
SCREW, 5/16-18 X .75 BS-703228
...
0150
WASHER, 5/16 BS-703298
...
0160
COVER, Steering Shaft BS-1738790YP
...
0190
SCREW, Pan-Head, Phillips 10-24 X .875 BLK BS-1739942YP
...
0200
ROD, Dash Support, 10" BS-1738964YP
...
0210
NUT, NYLOCK, 10-24 BS-703412
...
0300
BUMPER BS-1750390AYP
...
0320
NUT BS-703115
...
0330
SCREW, Washer Head, 5MM x 12MM Long BS-1739329YP
...
0350
WASHER, 1/4 BS-703229
...
0360
HEADLIGHT ASMY-HUNTER BS-1727296SM
...
0370
LIGHT BAR BS-1750552YP
...
0380
BRACKET, Headlight BS-1750772BZYP
...
0390
GRILL, Chevron Front BS-1750389YP
...
0400
PLUG, Insert BS-1750460YP
