261031x692A Murray - Walk-Behind Mower (2001)

Model: 261031x692A

Save Part Not Listed?
product name

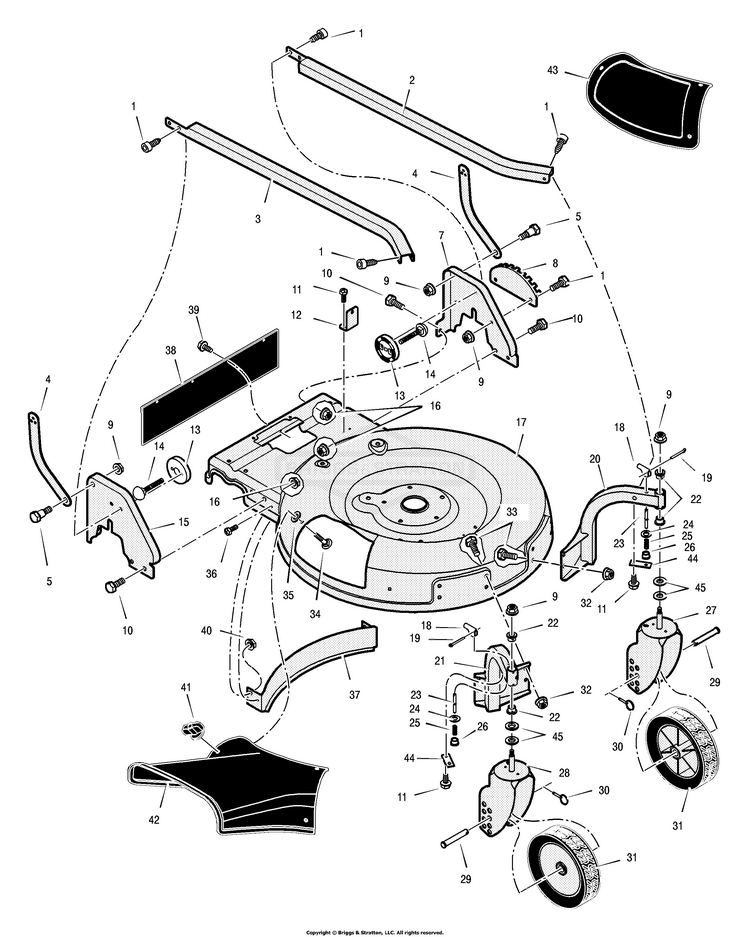

Caster Assembly

...
...
1
Screw BS-710277
...
2
Brace, Left BS-1101204-846
...
3
Brace, Right BS-1101203-846
...
4
Support, Handle BS-1101229-846
...
5
Bolt, Shoulder BS-009X30
...
7
Bracket, Left Handle BS-1101168-884
...
8
Plate, Index BS-1101206-884
...
9
NUT, CNTR LCK, 3/8-16 BS-703893
...
10
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
11
Screw BS-26X233MA
...
12
Bracket, Blade Drive Cable BS-1101213-884
...
13
Support, Handle Adjuster BS-1101155MA
...
14
Bolt, Carriage BS-002X76MA
...
15
Bracket, Right Handle BS-1101169-884
...
16
Nut BS-45171MA
...
17
Housing, Mower BS-1101221-884
...
18
Lever, Wheel Lock BS-1101167MA
...
19
PIN, COTTER, 3/32X.75 BS-703312
...
20
Bracket Assembly, Left Caster BS-1101184-884
...
21
Bracket Assembly, Right Caster BS-1101185-884
...
22
Bearing BS-1101159MA
...
23
Rod, Wheel Lock BS-1101208MA
...
24
Washer BS-017X36MA
...
25
Spring, Compression BS-164X35MA
...
26
Bushing BS-1101219MA
...
27
Bracket Assembly, Left Wheel BS-1101381E884
...
28
Bracket Assembly, Right Wheel BS-1101382E884
...
29
Axle, Caster BS-1101224MA
...
30
Pin, Cotterless Hitch BS-1101225MA
...
31
Wheel and Tire BS-1101416MA
...
32
NUT, 5/16-18, GR5 BS-703409
...
33
CAPSCREW,5/16-18X.625 BS-703822
...
34
Bolt, Carriage BS-002X95MA
...
35
Retainer, Bolt BS-028X55MA
...
36
Screw BS-26X293MA
...
37
Baffle, Rear BS-1101171-884
...
38
Deflector, Rear BS-1101200MA
...
39
Screw BS-710271
...
40
Nut BS-45171MA
...
41
Knob BS-1101222MA
...
42
Deflector, Chute BS-1101161MA
...
43
Cover, Mulch BS-1101162MA
...
44
Plate, Locking Arm BS-1101445 Z
...
45
Washer, Nylon BS-710491

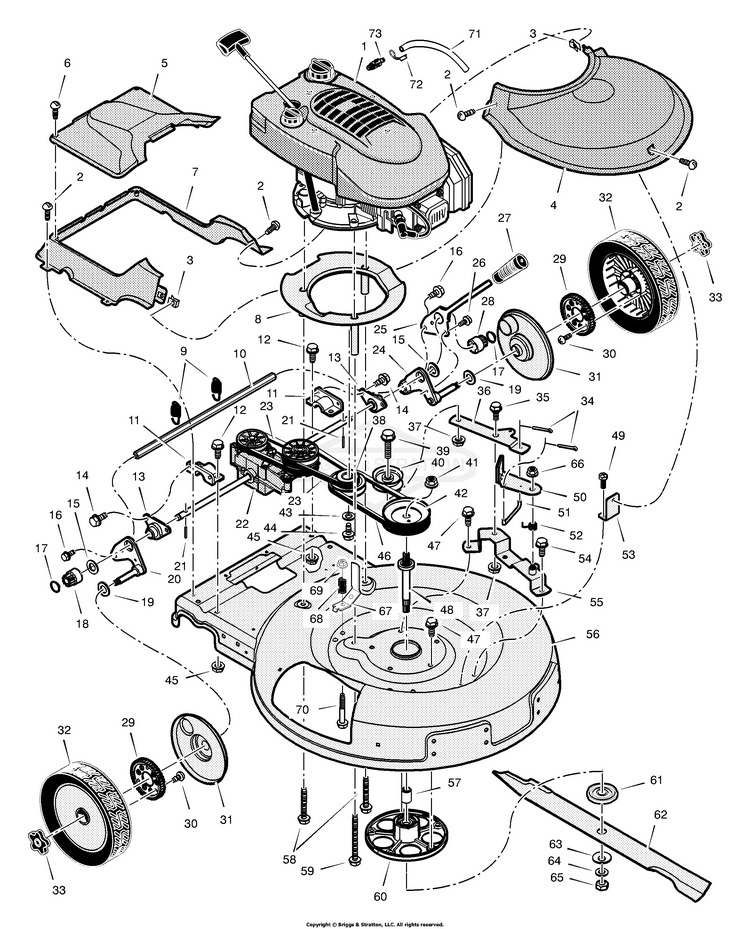

Drive Assembly

...
...
2
SCREW, Thread Forming BS-26X270MA
...
3
Tinnerman, "U" BS-028X75
...
4
Cover, Front BS-1101164MA
...
5
Cover, Transmission BS-1101166MA
...
6
Screw BS-26X300MA
...
7
Cover, Rear BS-1101165MA
...
8
Base Assembly, Engine BS-1101187-846
...
9
Spring, Extension BS-165X151MA
...
10
Crossbar, Rear BS-1101207
...
11
Bearing, Axle Support BS-1101148MA
...
12
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
13
Retainer Assembly, Axle Bearing BS-1101189MA
...
14
Screw BS-710277
...
15
Washer, Thrust BS-17X186MA
...
16
Screw BS-710312
...
17
Retainer Ring BS-011X29MA
...
18
Gear, Right Pinion BS-1101152MA
...
19
WASHER,SPRING .52X.99 BS-0020X3MA
...
20
Bracket Assembly, Right Axle BS-1101235MA
...
21
Pin, Drive BS-043629MA
...
23
Belt, Transmission BS-7769225
...
24
Bracket Assembly, Left Axle BS-1101234MA
...
25
Lever, Spring Height Adjuster BS-1101192
...
26
Screw, Tap BS-26X297
...
27
Knob, Height Adjuster BS-671297MA
...
28
Gear, Left Pinion BS-1101153MA
...
29
Gear BS-1101211MA
...
30
Screw, Tap BS-26X296MA
...
31
Cover, Dust BS-1101163MA
...
32
10X2.5 WHL RADIAL BB BS-1101415MA
...
33
Knob, Axle BS-672449MA
...
34
Pin, Cotter BS-0030X1
...
35
Bolt, Shoulder BS-710200
...
36
Idler Arm BS-1101174 Z
...
37
NUT, CNTR LCK, 3/8-16 BS-703893
...
38
Pulley, Engine BS-1101156MA
...
39
CAPSCREW,3/8-16X1.5 BS-703406
...
40
Pulley, Idler BS-056526MA
...
41
Nut, Blade Pulley BS-15X121
...
42
Pulley, Blade BS-1101191MA
...
43
Washer, Split BS-018X31MA
...
44
SCREW M6 BS-710074
...
45
Nut BS-45171MA
...
46
Belt, Blade Drive BS-7769208MA
...
47
SCREW-HEX WSHR HD TAP BS-2828635SM
...
48
Jackshaft BS-1101193MA
...
49
Screw BS-26X233MA
...
50
Brake Assembly, Blade BS-1101190MA
...
51
Link, Blade Brake BS-1101196
...
52
Spring, Torsion BS-166X27MA
...
53
Bracket, Front Cover BS-1101205-884
...
54
Screw BS-26X214MA
...
55
Support Assembly, Idler & Brake BS-1101230 Z
...
56
Housing BS-1101221-884
...
57
Spacer, Jackshaft BS-1101194MA
...
58
Bolt, Short Engine Mount BS-025X17
...
59
Bolt, Long Engine Mount BS-025X18MA
...
60
Mandrel Assembly BS-7769227
...
61
Adapter, Blade BS-491926MA
...
62
Blade BS-7769202
...
63
Washer, Cup (Included with Ref. No. 61) BS-17X166MA
...
64
Washer (Included with Ref. No. 61) BS-17X165MA
...
65
Nut, Blade Mount (Included with Ref. No. 61) BS-15X100MA
...
66
NUT, 3/8-16 BS-703333
...
67
Guide, Belt BS-1101466 Z
...
68
Spring BS-0164X1MA
...
69
NUT, 5/16-18, GR5 BS-703409
...
70
Bolt BS-001X75MA
...
71
Tube, Oil Drain BS-1101438
...
72
Cap, Oil Drain BS-327422
...
73
Valve, Oil Drain BS-325547MA
...
--
Instruction Book BS-F-0101451M

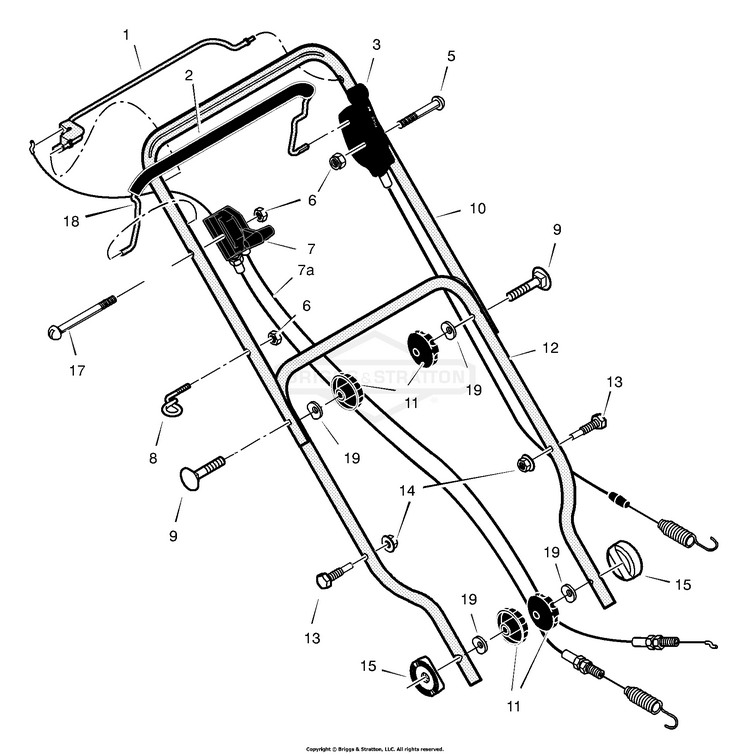

Handle Assembly

...
...
1
Lever, Drive BS-1101188-884
...
2
Cover, Stop Lever BS-1101160MA
...
3
Control, Blade Drive BS-1101374MA
...
5
Screw BS-03X144
...
6
NUT, 1/4-20, NYLOCK BS-703232
...
7
Cable, Control -Speed Selector & BS-1101375MA
...
7A
Cable, Drive BS-1101377MA
...
8
Guide, Rope BS-672510MA
...
9
Bolt, Carriage BS-710175
...
10
Handle, Upper BS-1101218-846
...
11
KNOB,HANDLE,5 PRONG BS-7105085YP
...
12
Handle, Lower BS-1101217-846
...
13
Bolt, Handle Support BS-01X183
...
14
NUT, 5/16-18, GR5 BS-703409
...
15
Adjuster, Handle BS-1101154MA
...
17
Bolt, Hex BS-001X93MA
...
18
Lever, Bail Stop BS-1101212-884
...
19
Washer, Formed BS-783000MA

Transmission

...
...
1
TUBE, Grass Catcher, 46" & 52" BS-7102423YP
...
2
Attachment Pin, Pulley BS-7501008
...
3
Clutch Lever Assembly BS-7501009
...
4
Spring, Clutch Return BS-7501010MA
...
5
Variator Assembly BS-7501011MA
...
--
Transmission Assembly * BS-1101233MA
