261010x10B Murray - Walk-Behind Mower (2002)

Model: 261010x10B

Back To Assemblies

Save Part Not Listed?
product name

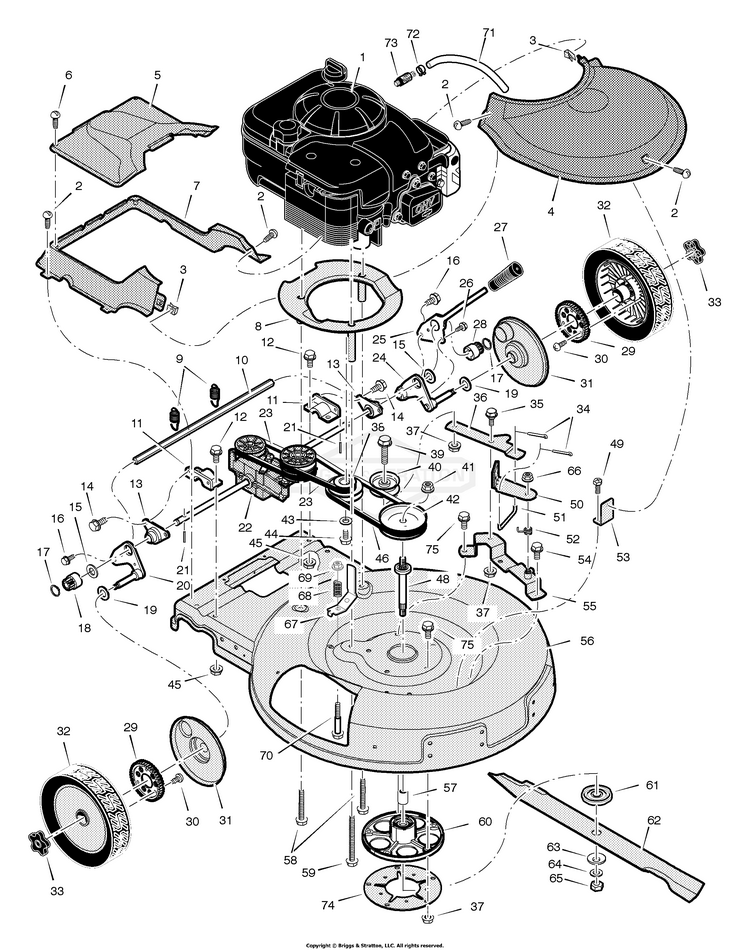

Drive Assembly

...
...
2
Screw BS-26X305MA
...
3
Tinnerman, "U" BS-028X75
...
4
Cover, Front BS-1101164MA
...
5
Cover, Transmission BS-1101166MA
...
6
Screw BS-26X300MA
...
7
Cover, Rear BS-1101165MA
...
8
Base Assembly, Engine BS-1101187-700
...
9
Spring, Extension BS-165X151MA
...
10
Crossbar, Rear BS-1101207
...
11
Bearing, Axle Support BS-1101148MA
...
12
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
13
Retainer Assembly, Axle Bearing BS-1101189MA
...
14
Screw BS-710277
...
15
Washer, Thrust BS-17X186MA
...
16
Screw BS-710312
...
17
Retainer Ring BS-011X29MA
...
18
Gear, Right Pinion BS-1101152MA
...
19
WASHER,SPRING .52X.99 BS-0020X3MA
...
20
Bracket Assembly, Right Axle BS-1101235MA
...
21
Pin, Drive BS-43629
...
22
Transmission * BS-1101233MA
...
23
Belt, Transmission BS-37X118MA
...
24
Bracket Assembly, Left Axle BS-1101234MA
...
25
Lever, Spring Height Adjuster BS-1101192
...
26
SCREW.25-20 S-T BS-26X263MA
...
27
Knob, Height Adjuster BS-671297MA
...
28
Gear, Left Pinion BS-1101153MA
...
29
Gear BS-1101211MA
...
30
Screw, Tap BS-26X296MA
...
31
Cover, Dust BS-1101163MA
...
32
10X2.5 WHL RADIAL BB BS-1101415MA
...
33
Knob, Axle BS-672449MA
...
34
Pin, Cotter BS-0030X1
...
35
Bolt, Shoulder BS-710200
...
36
Idler Arm BS-1101174 Z
...
37
NUT, CNTR LCK, 3/8-16 BS-703893
...
38
Pulley, Engine BS-1101156MA
...
39
CAPSCREW,3/8-16X1.5 BS-703406
...
40
Pulley, Idler BS-56526
...
41
Nut, Blade Pulley BS-15X121
...
42
Pulley, Blade BS-1101191MA
...
43
Washer, Split BS-018X31MA
...
44
SCREW M6 BS-710074
...
45
Nut BS-45171MA
...
46
Belt, Blade Drive BS-37X117MA
...
48
Jackshaft BS-1101193MA
...
49
Screw BS-26X233MA
...
50
Brake Assembly, Blade BS-1101190MA
...
51
Link, Blade Brake BS-1101196
...
52
Spring, Torsion BS-166X27MA
...
53
Bracket, Front Cover BS-1101205-245
...
54
Screw BS-26X214MA
...
55
Support Assembly, Idler & Brake BS-1101230 Z
...
56
Housing BS-1101221-245
...
57
Spacer, Jackshaft BS-1101194MA
...
58
Bolt, Short Engine Mount BS-025X17
...
59
Bolt, Long Engine Mount BS-025X18MA
...
60
Mandrel Assembly BS-1001049
...
61
Adapter, Blade BS-92466
...
62
Blade BS-1101590E701MA
...
63
Washer, Cup BS-17X166MA
...
64
Washer BS-17X165MA
...
65
Nut, Blade Mount BS-15X100MA
...
66
NUT, HEX FLNG,5/16-18 BS-704067
...
67
Guide, Belt BS-1101466 Z
...
68
Spring BS-0164X1MA
...
69
NUT, 5/16-18, GR5 BS-703409
...
70
Bolt BS-001X75MA
...
71
Tube, Oil Drain BS-1101438
...
72
Clamp, Oil Drain BS-327422
...
73
Valve, Oil Drain BS-325547MA
...
74
Support, Jackshaft Housing BS-1101597-701
...
75
Screw BS-025X10MA
...
--
Instruction Book BS-F-020435M
