261010x10A Murray - Walk-Behind Mower (2001)

Model: 261010x10A

Back To Assemblies

Save Part Not Listed?
product name

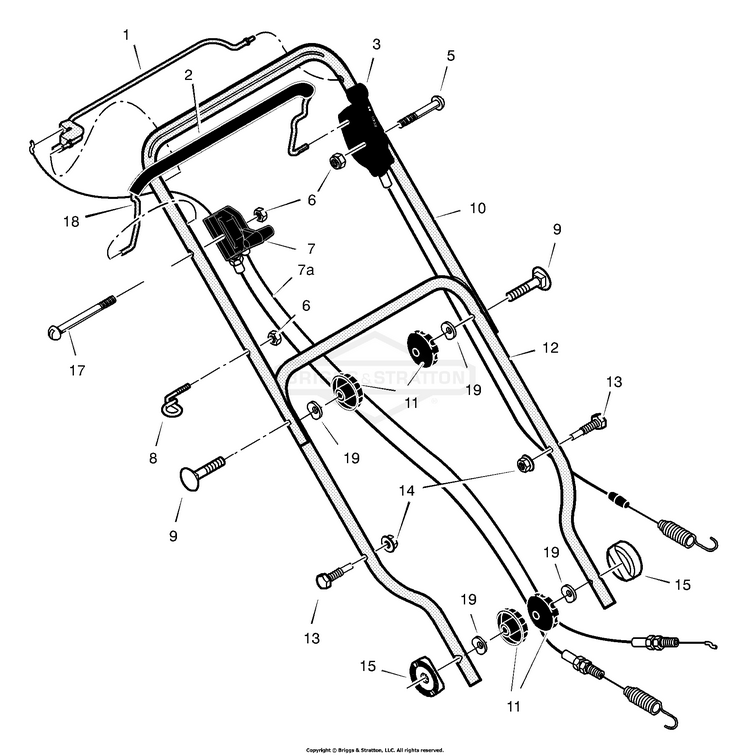

Handle Assembly

...
...
1
Lever, Drive BS-1101188-860
...
2
Cover, Stop Lever BS-1101160MA
...
3
Control, Blade Drive BS-1101374MA
...
5
Screw BS-03X144
...
6
NUT, 1/4-20, NYLOCK BS-703232
...
7
Cable, Control -Speed Selector & BS-1101375MA
...
7A
Cable, Drive BS-1101377MA
...
8
Guide, Rope BS-672510MA
...
9
Bolt, Carriage BS-710175
...
10
Handle, Upper BS-1101218-846
...
11
KNOB,HANDLE,5 PRONG BS-7105085YP
...
12
Handle, Lower BS-1101217-846
...
13
Bolt, Handle Support BS-01X183
...
14
NUT, 5/16-18, GR5 BS-703409
...
15
Adjuster, Handle BS-1101154MA
...
17
Bolt, Hex BS-001X93MA
...
18
Lever, Bail Stop BS-1101212-860
...
19
Washer, Formed BS-783000MA
