25U235-0013-01 Briggs and Stratton Engine

Model: 25U235-0013-01

Back To Assemblies

Save Part Not Listed?
product name

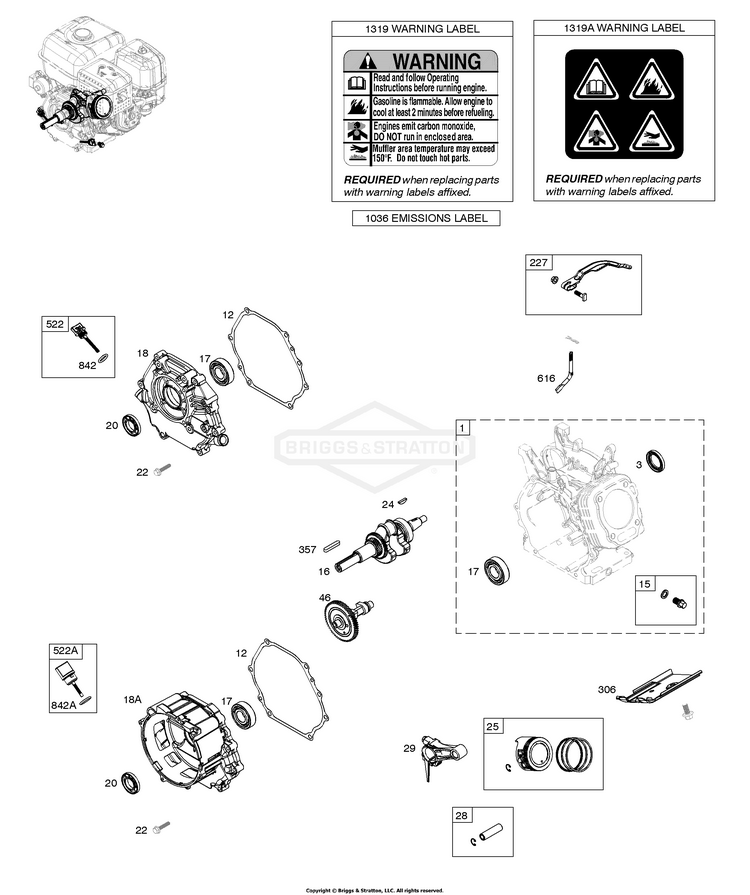

Camshaft, Crankcase Cover, Crankshaft, Cylinder, Piston/Rings/Connecting Rod, Warning Label

...
...
15
PLUG, Oil Drain BS-797793
...
16
CRANKSHAFT BS-797844
...
17
BEARING, Ball BS-797765
...
18A
COVER, Crankcase BS-596318
...
24
KEY, Flywheel BS-797286
...
25
PISTON ASSEMBLY (Standard) BS-799535
...
28
PIN, Piston BS-797799
...
29
ROD, Connecting BS-797804
...
46
CAMSHAFT BS-797851
...
227
LEVER, Governor Control BS-799924
...
306
SHIELD, Cylinder BS-797749
...
522A
PLUG, DIPSTICK/FILL BS-84004404
...
616
CRANK, Governor BS-797805
...
1319
LABEL, Warning BS-794467
...
1319A
LABEL, Warning BS-797669
