25U135-0001-G1 Briggs and Stratton Engine

Model: 25U135-0001-G1

Save Part Not Listed?
product name

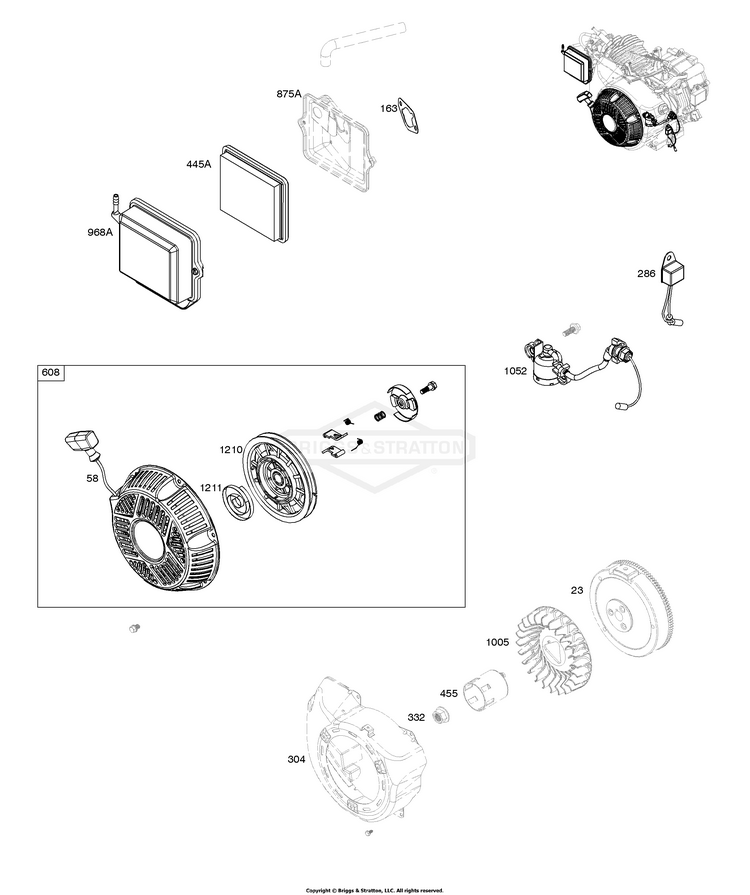

Air Cleaner, Oil Sensing, Blower Housing, Flywheel, Rewind Starter

...
...
58
ROPE, Starter (Cut To Required Length) BS-691921
...
286
MODULE, Oil Sensor BS-84004388
...
445A
FILTER, A/C Cartridge BS-491588S
...
608
STARTER, Rewind BS-594263
...
1052
SENSOR, Oil BS-797771

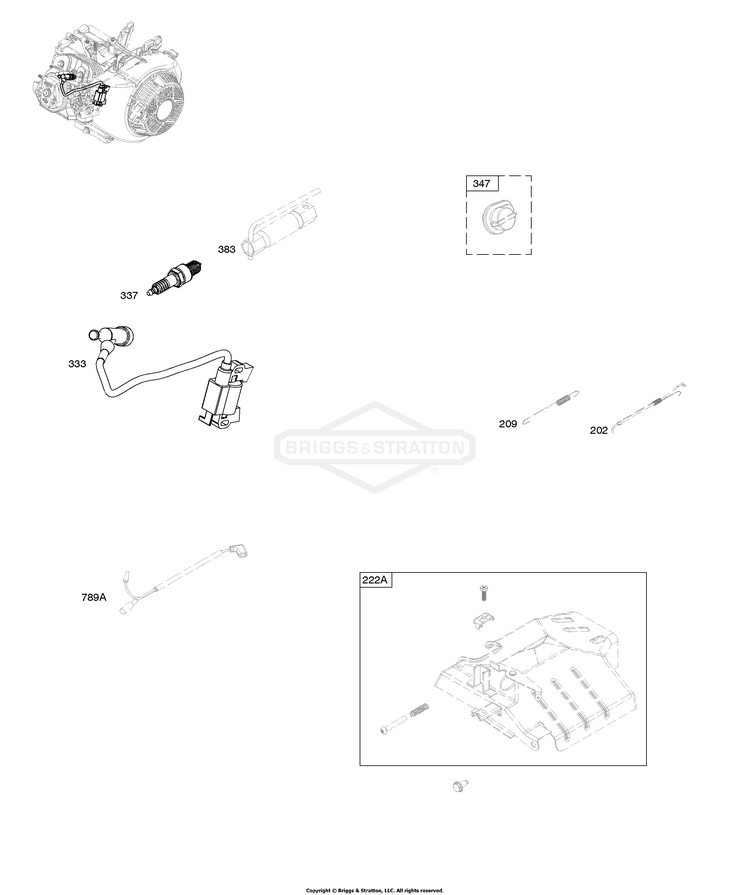

Armature, Controls, Electrical System, Governor Spring, Ignition, Spark Plug

...
...
333
ARMATURE, Magneto BS-797769
...
337
PLUG, Spark BS-798615

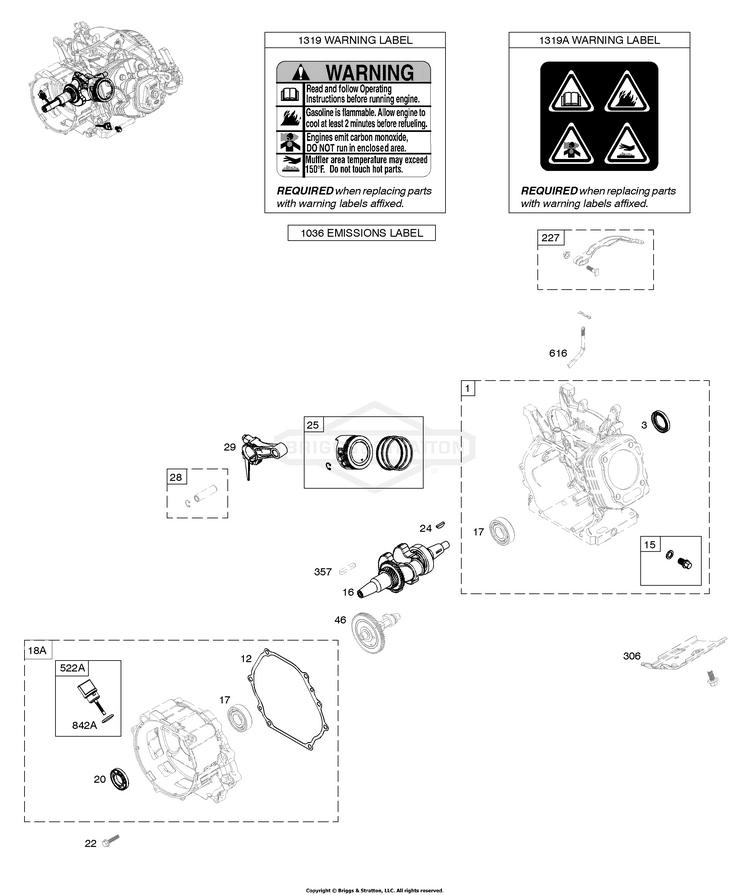

Camshaft, Crankcase Cover, Crankshaft, Cylinder, Piston/Rings/Connecting Rod, Warning Label

...
...
15
PLUG, Oil Drain BS-797793
...
16
CRANKSHAFT BS-797844
...
24
KEY, Flywheel BS-797286
...
25
PISTON ASSEMBLY (Standard) BS-799535
...
29
ROD, Connecting BS-797804
...
522A
PLUG, DIPSTICK/FILL BS-84004404
...
1319
LABEL, Warning BS-794467
...
1319A
LABEL, Warning BS-797669

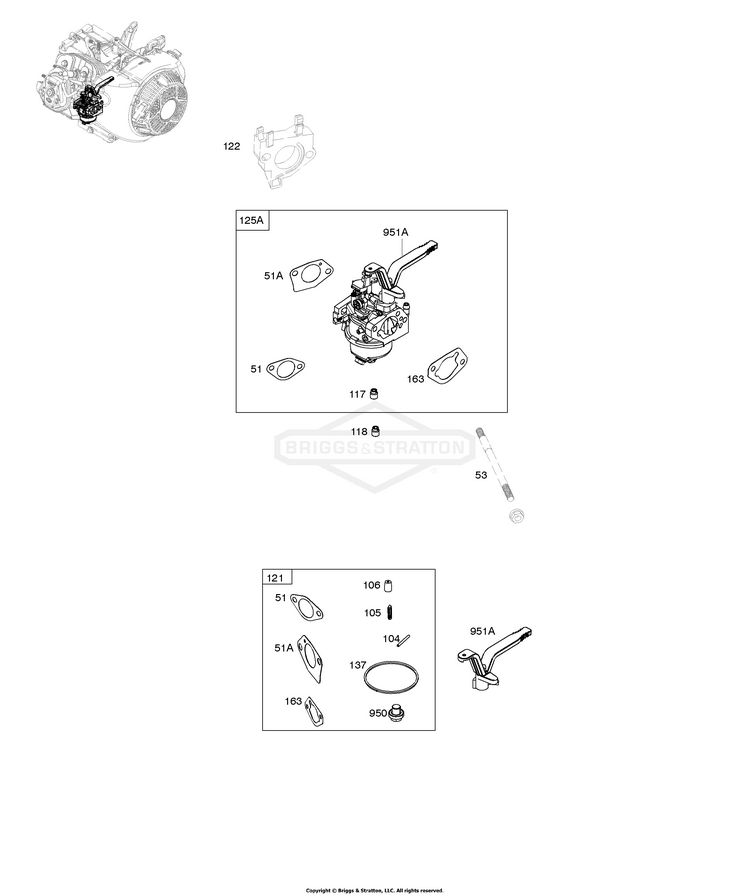

Carburetor

...
...
117
JET, Main (Standard) BS-592928
...
118
JET, Main (High Altitude) BS-593503
...
121
KIT, Carburetor Overhaul BS-594261
...
125A
CARBURETOR BS-595855
...
951A
LEVER, Choke BS-797759

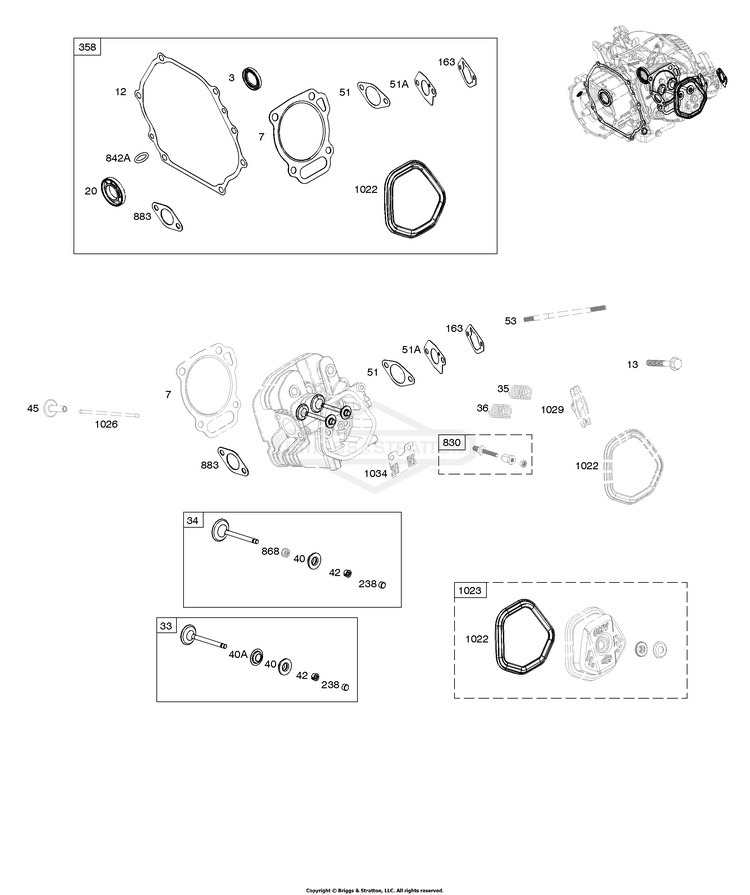

Cylinder Head, Gasket Sets

...
...
33
VALVE, Exhaust BS-797778
...
34
VALVE, Intake BS-594256
...
358
GASKET SET, ENGINE BS-84012832

Replacement Engine - US & Canada

...
...
xx
Replacement Engine BS-25T2350111
