25P132-0001-G1 Briggs and Stratton Engine

Model: 25P132-0001-G1

Save Part Not Listed?
product name

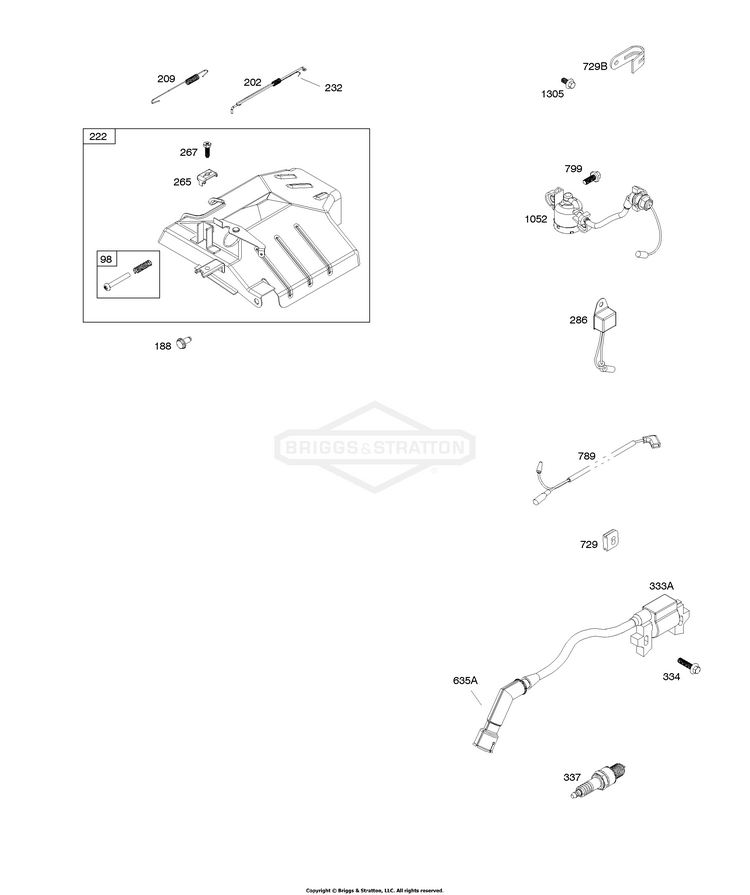

Air Cleaner, Alternator, Armature, Electrical System, Ignition, Controls, Governor Spring, Exhaust System, Fuel Supply, Spark Plug

...
...
98
KIT, Idle Speed BS-592978
...
188
SCREW (Control Bracket) BS-798618
...
202
LINK, Mechanical Governor BS-797810
...
209
SPRING, Governor BS-592966
...
222
BRACKET, Control BS-797751
...
232
SPRING, Governor Link BS-797809
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-699492
...
286
MODULE, Oil Sensor BS-84004388
...
333A
ARMATURE, Magneto BS-798616
...
334
SCREW (Magneto Armature) BS-590644
...
337
PLUG, Spark BS-798615
...
635A
BOOT, Spark Plug BS-797685
...
729
CLIP, Wire BS-797750
...
729B
CLIP, Wire BS-592311
...
789
HARNESS, Wiring BS-797856
...
799
SCREW (Oil Sensor) BS-798975
...
1052
SENSOR, Oil BS-797771
...
1305
SCREW (Oil Sensor Module) BS-798618

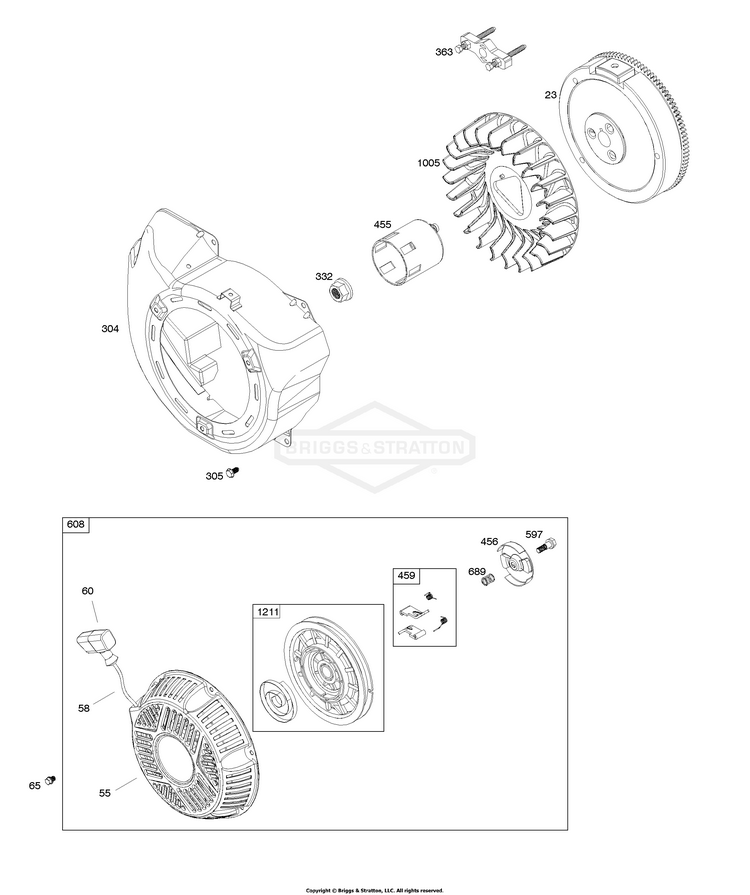

Blower Housing, Flywheel, Rewind Starter

...
...
23
FLYWHEEL BS-797813
...
55
HOUSING, Rewind Starter BS-799974
...
58
ROPE, Starter (Cut To Required Length) BS-691921
...
60
GRIP, Starter Rope BS-691915
...
65
SCREW (Rewind Starter) BS-797654
...
304
HOUSING, Blower BS-799968
...
305
SCREW (Blower Housing) BS-798618
...
332
NUT (Flywheel) BS-797811
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-797746
...
456
PLATE, Pawl Friction BS-799973
...
459
PAWL, Ratchet BS-799976
...
597
SCREW (Pawl Friction Plate) BS-799972
...
608
STARTER, Rewind BS-797747
...
689
SPRING, Friction BS-799669
...
1005
FAN, Flywheel BS-797748
...
1211
PULLEY/SPRING ASSEMBLY (Spring) BS-799975

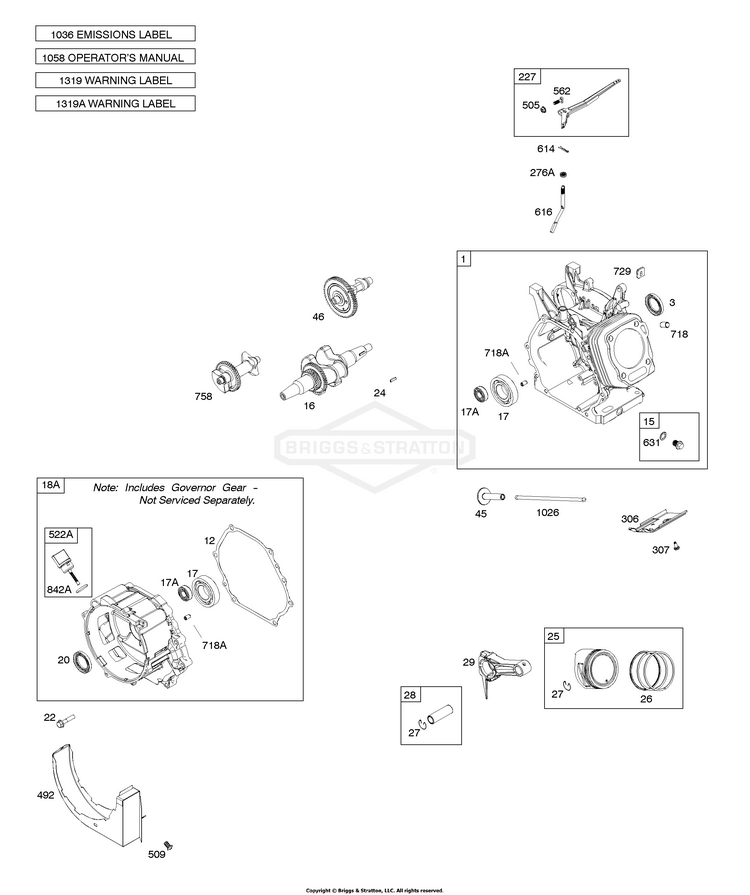

Camshaft, Crankcase Cover, Crankshaft, Cylinder, Exhaust Bracket, Operator's Manual, Piston/Rings/Connecting Rod, Warning Label

...
...
1
CYLINDER ASSEMBLY BS-799979
...
3
SEAL, Oil (Magneto Side) BS-797766
...
12
GASKET, Crankcase BS-797789
...
15
PLUG, Oil Drain BS-797793
...
16
CRANKSHAFT BS-797844
...
17
BEARING, Ball (Crankshaft) BS-797765
...
17A
BEARING, Ball (Counterweight) BS-797764
...
18A
COVER, CRANKCASE BS-84012833
...
20
SEAL, Oil (PTO Side) (PTO Side) BS-797766
...
22
SCREW (Crankcase Cover/Sump) BS-797795
...
24
KEY, Flywheel BS-797286
...
25
PISTON ASSEMBLY (Standard) BS-799535
...
25
PISTON ASSEMBLY (.020 Oversize) BS-799537
...
25
PISTON ASSEMBLY (.010 Oversize) BS-799536
...
26
SET, Ring (.010 Oversize) BS-799539
...
26
SET, Ring (.020 Oversize) BS-799540
...
26
SET, Ring (Standard) BS-799538
...
27
LOCK, Piston Pin BS-797803
...
28
PIN, Piston BS-797799
...
29
ROD, Connecting BS-797804
...
45
TAPPET, Valve BS-797786
...
46
CAMSHAFT BS-797851
...
227
LEVER, Governor Control BS-799924
...
276A
WASHER, Sealing (Govenor Crank) BS-797806
...
306
SHIELD, Cylinder BS-797749
...
307
SCREW (Cylinder Shield) BS-798618
...
492
SHIELD, Crankcase BS-798839
...
505
NUT (Governor Control Lever) BS-690939
...
509
SCREW (Crankcase Shield) BS-798840
...
522A
PLUG, DIPSTICK/FILL BS-84004404
...
562
BOLT (Governor Control Lever) BS-797230
...
614
PIN, Cotter BS-797229
...
616
CRANK, Governor BS-797805
...
631
WASHER (Oil Drain Plug) BS-797794
...
718
PIN, Locating (Cylinder Head) BS-797792
...
718A
PIN, Locating (Crankcase Cover) BS-797761
...
729
CLIP, Wire BS-797750
...
758
COUNTERWEIGHT BS-797852
...
842A
SEAL, O-Ring (Dipstick Tube) BS-797763
...
1026
ROD, Push BS-799966
...
1058
MANUAL, Operator's BS-279127TRI
...
1319
LABEL, Warning BS-794467
...
1319A
LABEL, Warning BS-797669

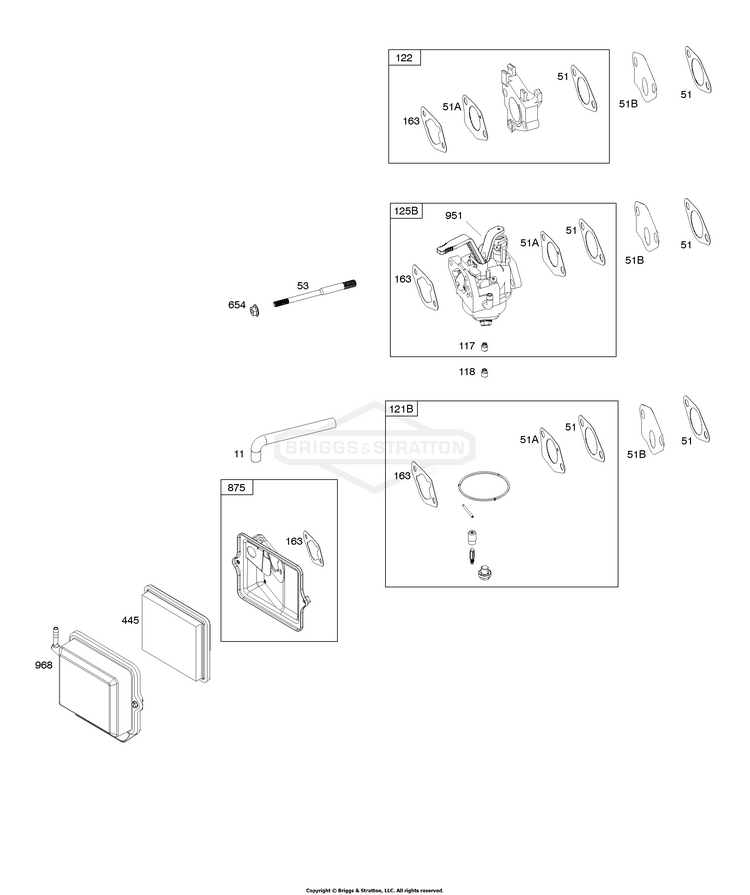

Carburetor

...
...
11
TUBE, Breather BS-797768
...
51
GASKET, Intake BS-797845
...
51A
GASKET, Intake BS-797755
...
51B
GASKET, Intake (Restrictor) BS-592652
...
53
STUD (Carburetor) BS-797757
...
117
JET, Main (Standard) BS-592928
...
118
JET, Main (High Altitude) BS-799775
...
121B
KIT, Carburetor Overhaul BS-592332
...
122
SPACER, Carburetor BS-799961
...
125B
CARBURETOR BS-592929
...
163
GASKET, Air Cleaner BS-797756
...
445
FILTER, A/C Cartridge BS-491588S
...
654
NUT (Carburetor) BS-690939
...
875
BASE, Air Cleaner BS-799776
...
951
LEVER, Choke BS-797759
...
968
COVER, Air Cleaner BS-590958

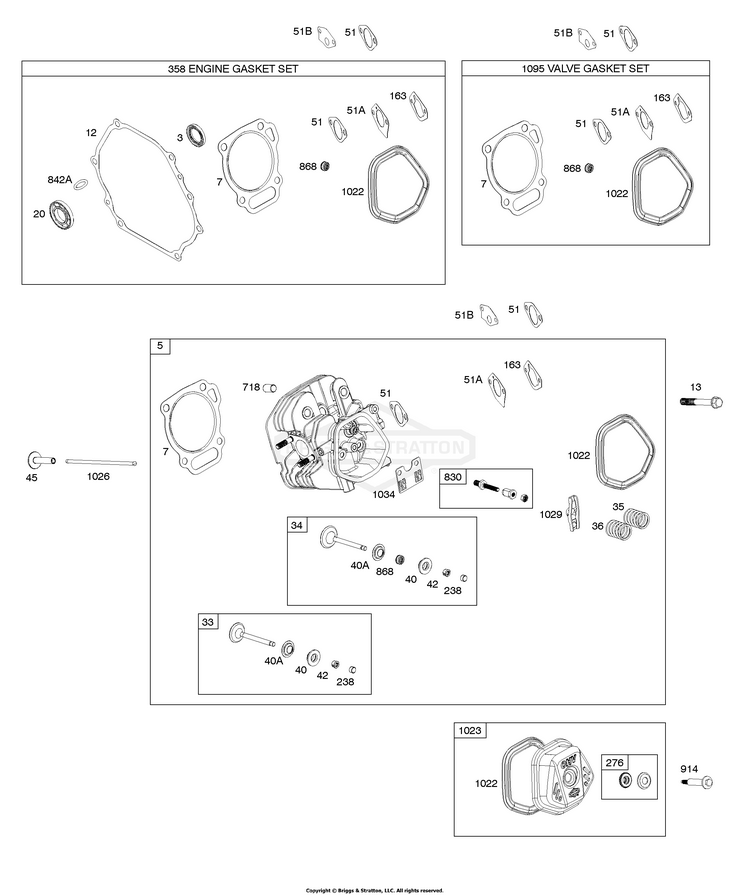

Cylinder Head, Gasket Sets

...
...
3
SEAL, Oil (Magneto Side) BS-797766
...
5
HEAD, Cylinder BS-799533
...
7
GASKET, Cylinder Head BS-799534
...
12
GASKET, Crankcase BS-797789
...
13
SCREW (Cylinder Head) BS-797791
...
20
SEAL, Oil (PTO Side) (PTO Side) BS-797766
...
33
VALVE, Exhaust BS-797778
...
34
VALVE, Intake BS-797777
...
35
SPRING, Valve (Intake) BS-797780
...
36
SPRING, Valve (Exhaust) BS-797780
...
40
RETAINER, Valve BS-797781
...
40A
RETAINER, Valve BS-797782
...
42
KEEPER, Valve BS-797783
...
45
TAPPET, Valve BS-797786
...
51
GASKET, Intake BS-797845
...
51A
GASKET, Intake BS-797755
...
51B
GASKET, Intake (Restrictor) BS-592652
...
163
GASKET, Air Cleaner BS-797756
...
238
CAP, Valve BS-797784
...
276
WASHER, Sealing (Rocker Cover) BS-797847
...
358
GASKET SET, ENGINE BS-84004406
...
718
PIN, Locating (Cylinder Head) BS-797792
...
830
STUD, Rocker Arm BS-591088
...
842A
SEAL, O-Ring (Dipstick Tube) BS-797763
...
868
SEAL, Valve BS-797854
...
914
SCREW (Rocker Cover) BS-797848
...
1022
GASKET, Rocker Cover BS-797846
...
1023
COVER, Rocker BS-799778
...
1026
ROD, Push BS-799966
...
1029
ARM, Rocker BS-591087
...
1034
GUIDE, Push Rod BS-797787
...
1095
GASKET SET, Valve BS-799953

Replacement Engine - US & Canada

...
...
xx
Replacement Engine BS-25P1320003
