Columbia 25A-262J897 CST 100 (2016) Trimmer

Model: 25A-262J897 CST 100 (2016)
Save
 Don't See Your Part Listed?
product name

.Quick Reference

...
...
xx
AIR FILTER MTD-951-14632A
...
xx
Belt (Drive) MTD-954-05077
...
xx
Cable (Control) MTD-946-05141
...
xx
Fuel Cap MTD-951-14407
...
xx
Handle Knob MTD-720-04122
...
xx
Spark Plug MTD-951-14437
...
xx
Trail Shield MTD-731-2329
...
xx
Trimmer Line MTD-490-040-M035
...
xx
Wheels MTD-734-04030
...
xx
Operator's Manual MTD-769-10351A

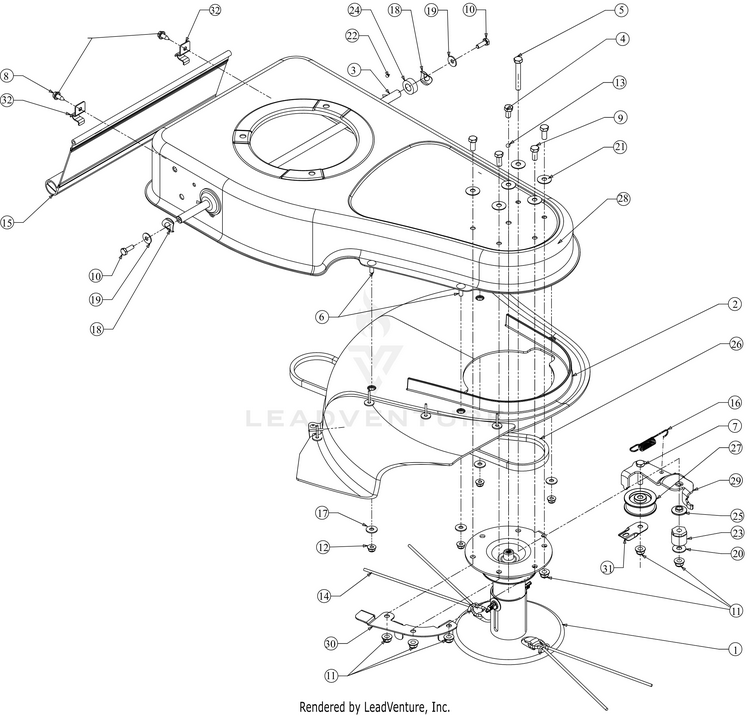

General Assembly

...
...
1
SPINDLE ASSEMBLY MTD-918-07086
...
2
22" DEFELECTOR ASSEMBLY MTD-631-0096
...
3
AXLE ASSEMBLY MTD-681P0159A
...
4
HEX SCREW 5/16-24 X .62 MTD-710-0237
...
5
HEX SCREW 5/16-18 X 2.25 GR5 MTD-710-0395
...
6
SCREW 1/4-20 X .75 GR5 MTD-710-0703
...
7
SCREW 5/16-18 X 1.5 LG MTD-710-0805A
...
8
SCREW 1/4-20X.625 MTD-710-1652
...
9
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
10
SCREW 1/4-20X.75 GR5 MTD-710-3015
...
11
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
12
FLANGE LOCK NUT MTD-712-04064
...
14
TRIMMER LINE: 10 P MTD-490-040-M035
...
15
TRAILSHIELD MTD-731-2329
...
16
EXTENSION SPRING .500 OD X 3.375 MTD-732-1022
...
17
FLAT WASHER .28 ID X .74 OD X .063 MTD-736-0173
...
18
SPRING WASHER .50 X 1.0 X .022 MTD-736-0182
...
19
SPRING WASHER BELL MTD-736-0270
...
19
FLAT WASHER MTD-736-0371
...
21
Bell-Wash. .325" I.D. MTD-736-0425
...
23
SPACER MTD-948-0278
...
24
SPACER .51 MTD-750-1240
...
25
IDLER SPACER MTD-750-1275
...
26
V-BELT 4L X 44.6" MTD-954-05077
...
27
IDLER PULLEY MTD-756-05108
...
28
BASE MTD-781-05007A
...
29
IDLER BRACKET MTD-981-1008A
...
30
BELT KEEPER BRACKET MTD-781-1020-0637
...
31
IDLER BRACKET KEEPER MTD-781-1028-0637
...
32
TRAILSHIELD HINGE CLIP MTD-782-9065

General Hardware

...
...
1
FLYWHEEL PULLEY MTD-656-05003
...
2
SCREW 3/8-24 X 1.25 GR8 MTD-710-06074
...
3
SCREW 3/8-16 X 1 MTD-710-0654A
...
4
SHROUD DEBRIS COVER MTD-731-09688
...
5
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452

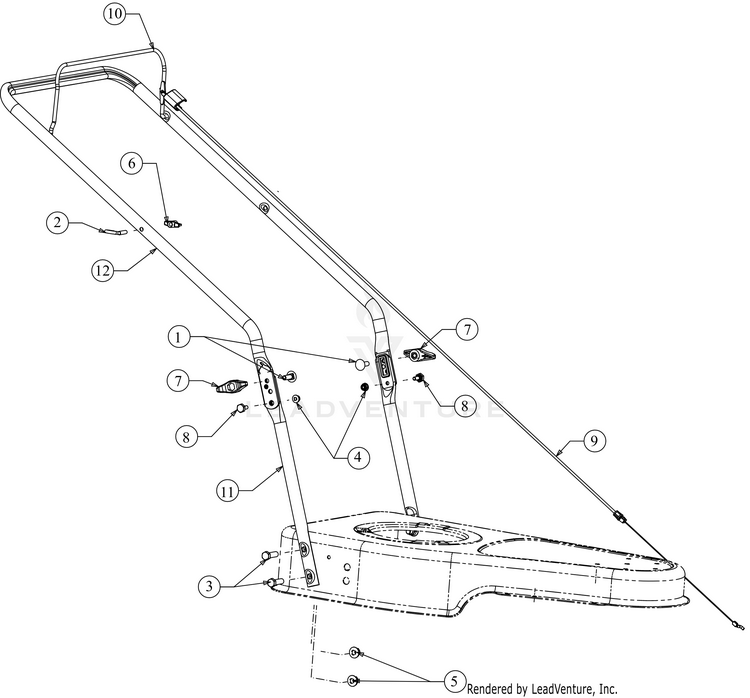

Handle Assembly

...
...
1
SCREW 5/16-18 X 1.00 GR5 MTD-710-04998
...
2
EYEBOLT 1/4-20 MTD-710-1205
...
3
SCREW 3/8-16 X 1.25 GR5 MTD-710-3005
...
4
FLANGE LOCK NUT MTD-712-04064
...
5
NUT MTD-712-04065
...
6
HANDLE KNOB MTD-720-0279
...
7
WING KNOB 5/16-18 MTD-720-04122
...
8
SHOULDER SCREW MTD-738-04419A
...
9
CONTROL CABLE 40" MTD-946-05141
...
10
OPERATOR BAIL MTD-747-06246-0637
...
11
LOWER HANDLE (ADJUSTABLE) MTD-749-05102-0637
...
12
UPPER HANDLE (ADJUSTABLE) MTD-749-05103-0637

Label Map

...
...
777D20496
LABEL-COLUMBIA 22" FIELD TRIMMER MWR MTD-777D20496
...
777D21709
LABEL - COLUMBIA 159CC ENG SHRD WST MTD-777D21709
...
777I23349
LABEL-10W30 MTD-777I23349
...
777S35146
LABEL-MOWER ENGINE SHROUD MTD MTD-777S35146
...
777S35368
LABEL-WHL STRING TRIMMER WARNING MTD-777S35368

Wheel Assembly

...
...
1
WHEEL ASSEMBLY 14X1.8 MTD-734-04030
...
1
BALL BEARING MTD-941-0484

5X65RU Engine

...

No Parts Available for this Schematic

...
...
...
...
