255426-0134-01 Briggs and Stratton Engine

Model: 255426-0134-01

Save Part Not Listed?
product name

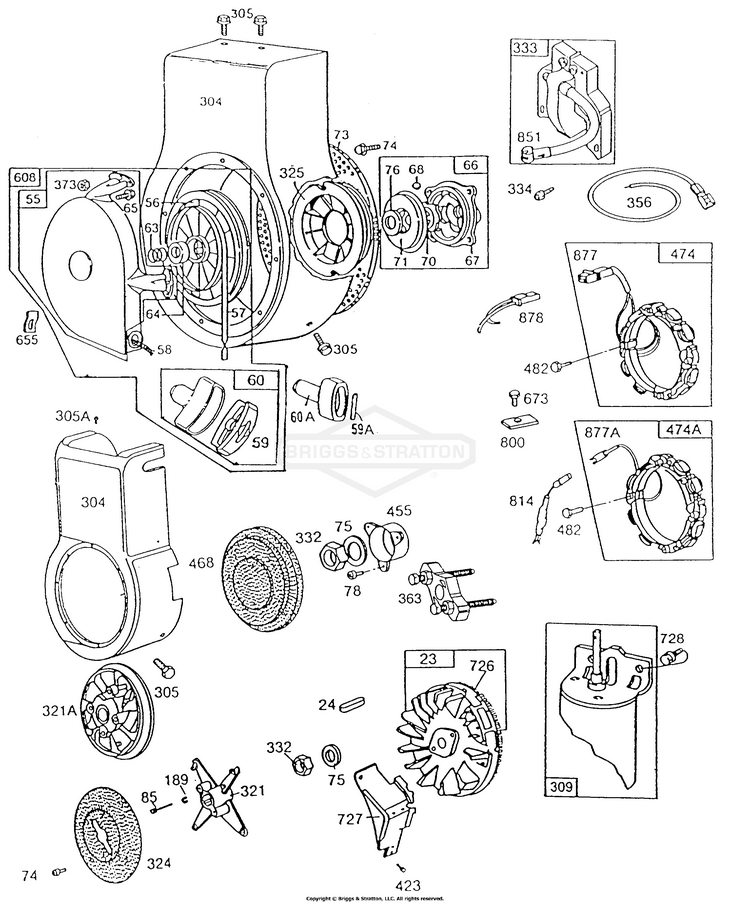

BlowerHsg,Rewind,Alternators

...
...
23
FLYWHEEL (Plastic Motor Drive) BS-692048
...
24
KEY, Flywheel BS-222698S
...
55
HOUSING, Rewind Starter BS-393576
...
56
PULLEY, Starter (63 Rope) (Includes 63 Rope; if Longer Rope is Required, Order No. 280399 and Cut to Length.) BS-295871
...
57
SPRING-REWIND STR BS-490179
...
58
ROPE, Starter (Cut To Required Length) For Use With Plastic Pulley; if Longer Rope is Required, Order No. 280399 and Cut to Length. BS-692188
...
59A
PIN, Starter Grip BS-230228S
...
59
GRIP-STARTER ROPE BS-490652
...
60A
GRIP-STARTER ROPE BS-490652
...
60
GRIP-STARTER ROPE BS-490652
...
63
SPRING, Ratchet BS-690547
...
64
ADAPTER, Ratchet Spring BS-691920
...
65
SCREW BS-690837
...
66
CLUTCH-STARTER (Uses Rubber Coated Retainer Washer-Ref. 71) BS-399671
...
67
HOUSING, Clutch BS-394897
...
68
BALL, Clutch BS-691604
...
70
RATCHET-CLUTCH (engine W/Ring Gear on FW equipped for Elec Start) BS-691945
...
71
COVER, Ratchet (Rubber Coated) BS-691359
...
73
SCREEN-ROTATING BS-691754
...
74
SCREW BS-691655
...
75
WASHER (5/8 Hole) BS-690582
...
76
COVER, Ratchet BS-691359
...
78
SCREW BS-691655
...
85
SCREW (2) BS-691076
...
189
WASHER, 5/16" LOCK BS-5025170SM
...
304
HOUSING, Blower BS-399844
...
305A
SCREW BS-690312
...
305
SCREW (1/4-20 X 5/8) BS-692198
...
309
MOTOR-STARTER (4 9/16 Housing) BS-795121
...
309
MOTOR-STARTER (4 3/8 Housing) (Briggs & Stratton 12V) BS-795121
...
321A
FAN, Booster (10 Diameter) BS-212418
...
321
FAN, Booster BS-212159
...
324
SCREEN, Rotating BS-222754
...
325
PULLEY, Rope Starter BS-691903
...
332
NUT (Flywheel) BS-690662
...
333
ARMATURE, Magneto (Magnetron Ignition) BS-398811
...
334
SCREW BS-691061
...
356
WIRE, Stop BS-491391
...
363
PULLER, Flywheel BS-19203
...
423
SCREW BS-691002
...
455
CUP, Flywheel BS-691173
...
468
SCREEN-ROTATING BS-691748
...
474A
ALTERNATOR (Tri Circuit) (9 Amp Regulated) BS-84012661
...
474
ALTERNATOR (Dual Circuit) BS-84012663
...
482
SCREW (Tapping) BS-691183
...
655
ANCHOR-REWIND SPRING (Stamped Rewind Housing) BS-691734
...
673
SCREW (8-32 X 3/8) BS-690661
...
726
GEAR, Ring BS-696537
...
727
WASHER, 5/16" LOCK BS-5025170SM
...
728
SCREW (5/16-18 X 3/4) BS-691058
...
800
RETAINER BS-222095
...
814
HARNESS, Alternator (Tri Circuit) BS-691955
...
851
TERMINAL, Spark Plug BS-493880S
...
877A
WIRE/CONNECTOR, Alternator (Tri Circuit) (9 Amp) BS-393537
...
877
WIRE/CONNECTOR, Alternator BS-393456
...
878
HARNESS, Wiring (Dual Circuit) BS-398661

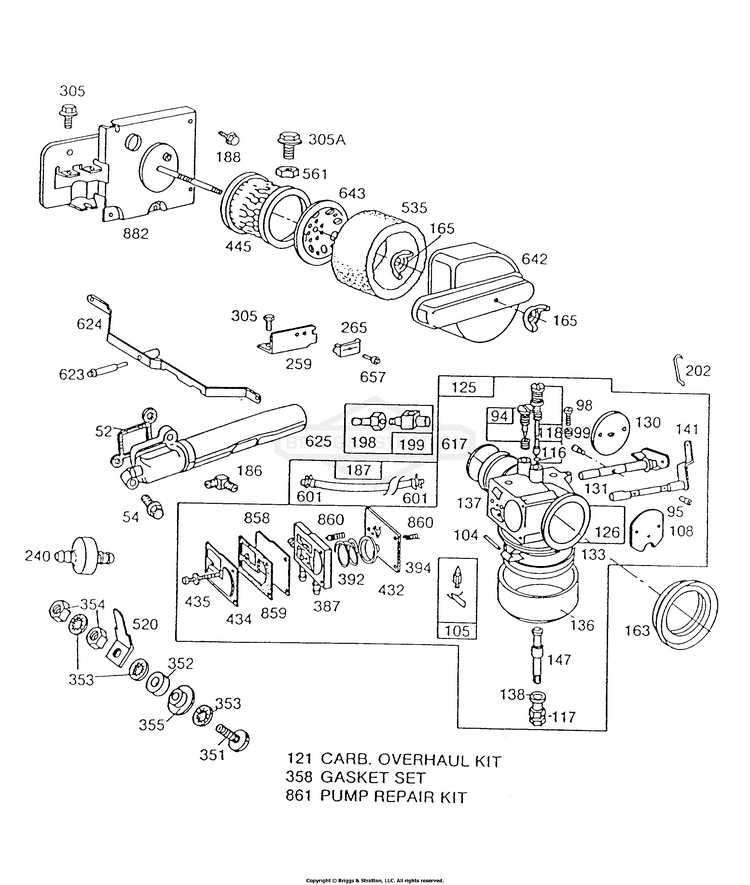

Carburetor, Air Cleaner

...
...
52
GASKET, Intake Included in Gasket Set-Part No. 393529 BS-270972
...
54
SCREW (Intake) (Intake Manifold) BS-93812
...
94
VALVE, Idle Mixture Included in Carburetor Overhaul Kit-Part No. 393544 BS-393541
...
95
SCREW (Throttle Valve) BS-691437
...
98
SCREW (5-40 X 1/2) BS-93860
...
99
SPRING-FRICTION BS-691783
...
104
PIN, Float Hinge Included in Carburetor Overhaul Kit-Part No. 393544 BS-691775
...
105
KIT, Needle/Seat (Gravity Feed) Included in Carburetor Overhaul Kit-Part No. 393544 BS-394681
...
105
KIT, Needle/Seat (Gravity Feed) BS-394682
...
105
KIT, Needle/Seat (Pump Feed) BS-394683
...
108
VALVE, Choke BS-222010
...
116
SEAL, O-Ring Included in Carburetor Overhaul Kit-Part No. 393544 BS-691898
...
117
SCREW (Float Bowl) BS-231101
...
118
VALVE, Float Needle Included in Carburetor Overhaul Kit-Part No. 393544 BS-393542
...
121
KIT, Carburetor Overhaul BS-393544
...
125
CARBURETOR BS-392690
...
126
BODY, Carburetor BS-393543
...
130
VALVE, Throttle BS-691727
...
131
SHAFT, Throttle BS-392278
...
133
FLOAT, Carburetor BS-299707
...
136
BOWL, Float BS-221995
...
137
GASKET, Float Bowl Included in Carburetor Overhaul Kit-Part No. 393544. Included in Gasket Set-Part No. 393529 BS-270511
...
138
WASHER-SEALING (Float Bowl) BS-690618
...
141
SHAFT, Choke BS-392280
...
147
SCREW (Nozzle) Included in Carburetor Overhaul Kit-Part No. 393544 BS-231323
...
163
GASKET, Air Cleaner Included in Carburetor Overhaul Kit-Part No. 393544 BS-280199
...
165
NUT BS-691331
...
186
CONNECTOR, Hose BS-691609
...
187
GASKET, Breather Passage (Cylinder To Impulse Pump)(Cut To Required Length) BS-791760
...
188
SCREW (5/16-18 X 3/4) BS-691058
...
198
VALVE-FUEL SHUT OFF(M BS-592840
...
199
VALVE-FUEL SHUT OFF(M BS-592840
...
202
LINK, Throttle BS-261339
...
240
FILTER, Fuel (Fuel Pump) BS-394358S
...
259
BRACKET, Choke Control BS-222611
...
265
CLAMP, Casing (Stamped Steel) BS-691024
...
305A
SCREW BS-690312
...
305
SCREW (1/4-20 X 5/8) BS-692198
...
351
SCREW BS-93735
...
352
WASHER (Fiber) BS-66068
...
353
WASHER BS-691077
...
354
NUT (Ground Terminal) BS-691612
...
355
WASHER (Insulating) BS-66554
...
358
GASKET SET-ENGINE BS-492654
...
387
BODY, Fuel Pump BS-280162
...
392
SPRING, Pump Diaphragm Included in Carburetor Overhaul Kit-Part No. 393544 BS-691801
...
394
DIAPHRAGM-CARB. Included in Carburetor Overhaul Kit-Part No. 393544 BS-272638S
...
432
CAP-SPRING Included in Carburetor Overhaul Kit-Part No. 393544 BS-690766
...
434
COVER, Diaphragm BS-690434
...
435
SCREW BS-691085
...
445
FILTER, A/C Cartridge BS-392286
...
520
TERMINAL, Ground BS-691084
...
535
FILTER, A/C Cartridge BS-270973
...
561
NUT (Starting Switch) BS-691029
...
601
CLAMP, Hose (Green) BS-791850
...
617
SEAL, O-Ring (Oil Fill) Included in Carburetor Overhaul Kit-Part No. 393544 BS-691870
...
623
SCREW (8-32) Used After Code Date 87123100 BS-691776
...
623
SCREW (6-32) Used Before Code Date 88010100 BS-691630
...
624
LEVER, Linkage BS-392292
...
625
ELBOW, Intake BS-392285
...
642
COVER, Air Cleaner BS-392288
...
643
CUP, Air Cleaner BS-222680
...
657
SCREW (10-32 X 5/8) BS-690804
...
858
DIAPHRAGM, Carburetor Included in Carburetor Overhaul Kit-Part No. 393544 BS-691871
...
859
GASKET, Carburetor Pump Included in Carburetor Overhaul Kit-Part No. 393544 BS-691873
...
860
SPRING, Diaphragm Included in Carburetor Overhaul Kit-Part No. 393544 BS-691799
...
861
KIT, Fuel Pump (Used On 3 Screw Fuel Pump Mount Carburetors) BS-393397
...
882
BASE, Air Cleaner BS-392289

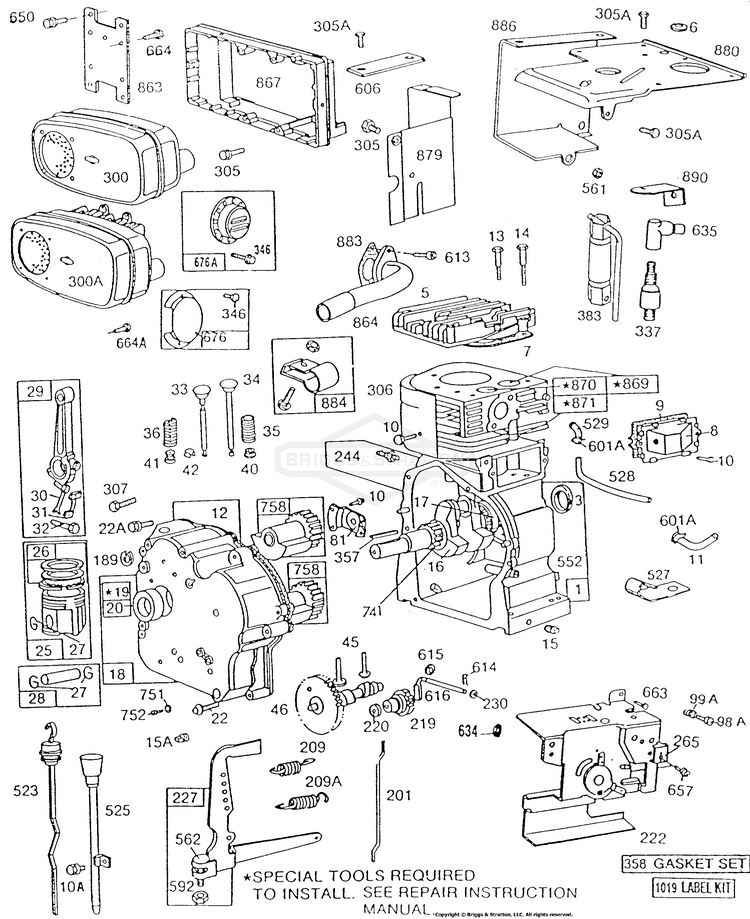

Cylinder,Mufflers,Oil Fill

...
...
1
CYLINDER ASSEMBLY BS-399121
...
3
SEAL, Oil (Magneto Side) BS-391086S
...
5
HEAD-CYLINDER BS-212916
...
7
GASKET-CYLINDER HEAD Included in Gasket Set-Part No. 393529 BS-272164
...
8
BREATHER ASSEMBLY BS-392294
...
9
GASKET, Breather Included in Gasket Set-Part No. 393529 BS-27803S
...
10A
SCREW BS-691003
...
10
SCREW BS-691666
...
11
GROMMET (Breather) BS-280159
...
12
GASKET, Crankcase (.005) Included in Gasket Set-Part No. 393529 BS-272219
...
12
GASKET, Crankcase (.009) Included in Gasket Set-Part No. 393529 BS-272220
...
12
GASKET, Crankcase (.015) Included in Gasket Set-Part No. 393529 BS-692281
...
13
SCREW (2 5/16) (2-5/16) BS-690912
...
14
SCREW (5/16-18 X 2-21/32) BS-592244
...
15A
PLUG, Oil Drain (Flush) BS-691680
...
15
PLUG, Oil Drain (3/8) BS-690946
...
16
CRANKSHAFT To Replace Crankshaft Gear Key, Order Part No. 94196 BS-491644
...
17
BEARING, Ball BS-691938
...
18
COVER, Crankcase BS-496985
...
19
KIT, Bushing/Seal (PTO Side) BS-399264
...
20
SEAL, Oil (Crankcase Cover) BS-291675S
...
22A
SCREW (Crankcase Cover)(Position 6) BS-694966
...
22
SCREW (Crankcase Cover) BS-691103
...
25
PISTON ASSEMBLY (Standard) BS-499284
...
25
PISTON ASSEMBLY (.010 Oversize) BS-394662
...
25
PISTON ASSEMBLY (.020 Oversize) BS-499292
...
25
PISTON ASSEMBLY (.030 Oversize) BS-499296
...
26
SET, Ring (.010 Oversize) BS-391781
...
26
SET, Ring (.020 Oversize) BS-499998
...
26
SET, Ring (.030 Oversize) BS-391783
...
26
SET, Ring (Standard) BS-392331
...
26
SET, Ring (Standard) BS-499996
...
27
LOCK, Piston Pin BS-691792
...
28
PIN, Piston (Standard) BS-299691
...
28
PIN, Piston (.005 Oversize) BS-391286
...
29
ROD, Connecting (Standard) BS-490348
...
30
DIPPER-CONN ROD BS-690405
...
31
LOCK, Rod Screw BS-222299
...
32
SCREW BS-691133
...
33
VALVE, Exhaust BS-691796
...
34
VALVE, Intake BS-690429
...
35
SPRING, Valve (Intake) BS-691605
...
36
SPRING, Valve (Exhaust) BS-691597
...
40
RETAINER, Valve (Valves With Groove In Stem) BS-690656
...
41
RETAINER, Valve (Exhaust Valve) (Exhaust) BS-691939
...
42
KEEPER, Valve (2) BS-494553
...
45
TAPPET, Valve BS-691811
...
46
CAMSHAFT BS-697668
...
81
RETAINER, Counterweight BS-691172
...
98A
SCREW (8-32 X 5/8) BS-691615
...
99A
KIT, Idle Speed BS-693942
...
189
WASHER, 5/16" LOCK BS-5025170SM
...
201
LINK, Choke BS-261338
...
209A
SPRING, Governor BS-796261
...
209
SPRING, Governor (2700 To 3300 RPM) BS-792602
...
219
GEAR, Governor Used Before Code Date 91061000 BS-391737
...
219
GEAR, Governor Used After Code Date 91060900 BS-494845
...
220
WASHER (Governor Lever) BS-691724
...
222
BRACKET, Control BS-392291
...
227
LEVER, Governor Control BS-392707
...
230
WASHER BS-691691
...
244
CONNECTOR-HOSE BS-691764
...
265
CLAMP, Casing (Stamped Steel) BS-691024
...
300A
MUFFLER Uses: 93343 Screw-Hex. Hd. (1/4-20 x 5/8) 271179 Gasket 393551 Body Assy.-Finned. BS-393465
...
300
MUFFLER (Super Lo Tone) BS-498984S
...
305A
SCREW BS-690312
...
305
SCREW (1/4-20 X 5/8) BS-692198
...
306
SHIELD, Cylinder BS-222609
...
307
SCREW (5/16-18 X 2-21/32) BS-592244
...
337
PLUG, Spark BS-796112S
...
337
PLUG, Spark BS-796112S
...
337
PLUG, Spark BS-796112S
...
337
PLUG, Spark (Resistor) BS-796112S
...
346
SCREW (8-32 X 3/8) BS-690661
...
357
KEY, Drive Pulley (1/4) BS-691483
...
358
GASKET SET-ENGINE BS-492654
...
383
WRENCH, Spark Plug BS-89838S
...
523
DIPSTICK BS-490665
...
525
TUBE, Dipstick BS-496517
...
527
CLAMP, Tube (Breather) BS-223131
...
528
TUBE, Breather BS-231105
...
529
GROMMET (Air Cleaner) BS-280160
...
552
BUSHING, Governor Crank Used After Code Date 88041700 BS-491893
...
552
BUSHING, Governor Crank (Includes Seal, Ref. 87) Used Before Code Date 88041800 BS-491893
...
561
NUT (Starting Switch) BS-691029
...
562
BOLT (Governor Lever) BS-92613
...
592
NUT (Governor Control) BS-691251
...
601A
CLAMP, Hose BS-93814
...
606
BRACKET, Support BS-222697
...
613
SCREW BS-698941
...
614
PIN, Cotter BS-691620
...
615
RETAINER, Governor Shaft BS-93307
...
616
CRANK-GOVERNOR (1/4 Diameter) BS-692015
...
634
SEAL, Governor Shaft Used After Code Date 88041700 BS-692407
...
635
BOOT, Spark PLug BS-66538S
...
650
SCREW (1/4-20 X 3/4) BS-93873
...
657
SCREW (10-32 X 5/8) BS-690804
...
663
SCREW (10-32 X 3/8) BS-690664
...
664A
SCREW (1/4-20 X 1) BS-691083
...
664
SCREW (1/4-20 X 1/2) BS-93872
...
676A
DEFLECTOR, Muffler (Louvered Outlet) BS-795038
...
676
DEFLECTOR, Muffler (Side Outlet) BS-795036
...
741
GEAR, Timing (Key) BS-691284
...
751
WASHER, Sealing BS-690258
...
752
SCREW BS-690304
...
758
COUNTERWEIGHT BS-691369
...
863
BRACKET, Muffler BS-222692
...
864
ADAPTER, Muffler BS-392903
...
867
FRAME, Air Guide BS-212235
...
869
SEAT, Valve (Intake) BS-691802
...
870
SEAT-VALVE (Exhaust) (Standard) BS-691844
...
871
BUSHING, Valve Guide (Intake) BS-231218
...
871
BUSHING, Valve Guide (Exhaust) BS-261961
...
879
SHIELD, Cylinder BS-392290
...
880
BRACKET, Support BS-222613
...
883
GASKET, Exhaust BS-692236
...
884
CLAMP, Muffler (Muffler 493963) BS-691956
...
886
COVER, Cylinder Head BS-222695
...
890
BRACKET, Support BS-222935
...
1019
KIT, Label BS-491254

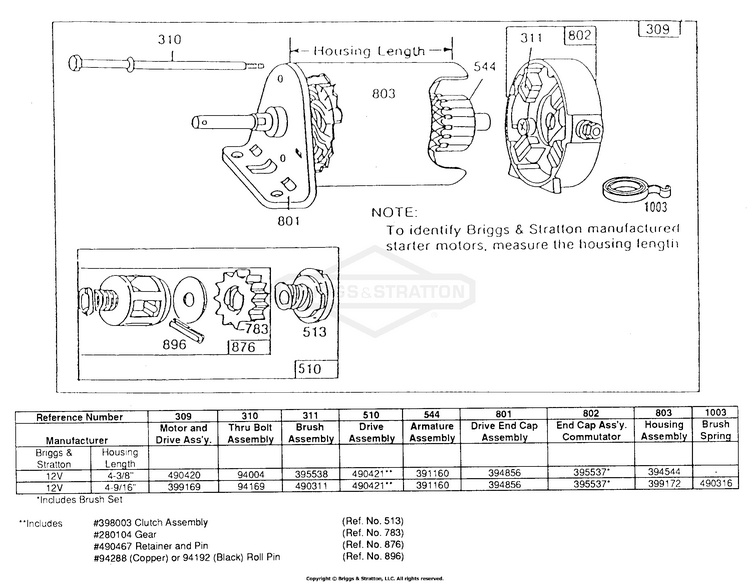

Electric Starter and Chart

...
...
309
MOTOR-STARTER (4 9/16 Housing) BS-795121
...
309
MOTOR-STARTER (4 3/8 Housing) (Briggs & Stratton 12V) BS-795121
...
310
BOLT (4 3/8 Housing) BS-691263
...
310
BOLT (4 1/2 Housing) BS-691263
...
311
SET, Brush (3-5/8 or 4 3/8 Housing) BS-395538
...
311
SET, Brush (4 9/16 Housing) BS-490311
...
510
DRIVE, Starter Includes #398003 Clutch Assembly (Ref. No. 513) #280104 Gear (Ref. No. 783) #490467 Retainer and Pin (Ref. No. 876) #94288 (Copper) or 94192 (Black) Roll Pin (Ref. No. 896) (3-21/32 or 4 9/16 Housing) BS-696540
...
544
ARMATURE, Starter (3 5/8 or 4 3/8 Housing) BS-391160
...
801
CAP, Drive BS-691283
...
802
CAP, End (3 5/8 Housing) Includes Brush Set BS-395537
...
802
SET, Brush Includes Brush Set (3-5/8 or 4 3/8 Housing) BS-395538
...
803
HOUSING, Starter (4 3/8 Housing) BS-494205
...
803
HOUSING, Starter (4 1/2 or 4 9/16 Housing) BS-398892
...
1003
SPRING, Brush (4 1/2 or 4 9/16 Housing) BS-490316

Replacement Engine - US & Canada

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
