254422-4071-01 Briggs and Stratton Engine

Model: 254422-4071-01

Back To Assemblies

Save Part Not Listed?
product name

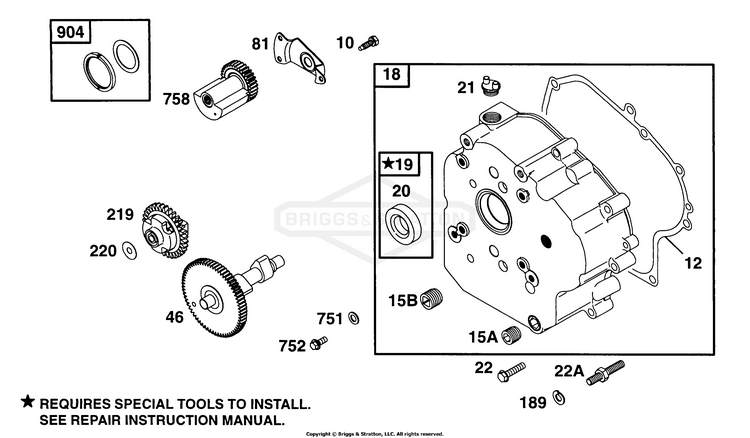

Crankcase Cover, Cam

...
...
10
SCREW (Breather Assembly) BS-691666
...
12
GASKET, Crankcase (.015) Included in Gasket Set-Part No. 492653 BS-692281
...
12
GASKET, Crankcase (.005) Included in Gasket Set-Part No. 492653 BS-272219
...
12
GASKET, Crankcase (.009) Included in Gasket Set-Part No. 492653 BS-272220
...
15A
PLUG, Oil Drain (Flush) BS-691680
...
15B
PLUG-OIL DRAIN (Square Head) BS-691686
...
18
COVER, Crankcase BS-496986
...
19
KIT, Bushing/Seal (PTO Side) BS-399264
...
20
SEAL, Oil (Crankcase Cover) Included in Gasket Set-Part No. 492653 BS-291675S
...
21
CAP, Oil Fill BS-281658S
...
22
SCREW (Crankcase Cover) BS-691103
...
22
SCREW (Crankcase Cover)(Position 6) BS-694966
...
46
CAMSHAFT BS-697668
...
81
RETAINER, Counterweight BS-691172
...
189
WASHER, 5/16" LOCK BS-5025170SM
...
219
GEAR, Governor Used Before Code Date 91061000 BS-391737
...
219
GEAR, Governor BS-494845
...
220
WASHER (Governor Lever) BS-691724
...
751
WASHER, Sealing BS-690258
...
752
SCREW BS-690304
...
758
COUNTERWEIGHT BS-691369
...
904
BEARING, Needle BS-492665
