253707-0250-01 Briggs and Stratton Engine

Model: 253707-0250-01

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

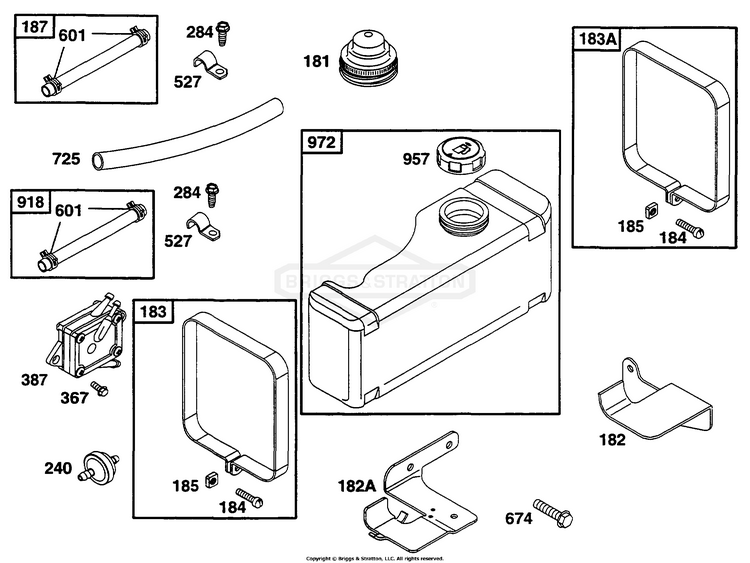

Fuel Tank Group

...
...
181
CAP, Fuel Tank (Metal) BS-791545
...
182A
BRACKET-FUEL TANK (L.H.) BS-692867
...
182
BRACKET, Fuel Tank (R.H.) BS-222980
...
183A
STRAP-FUEL TANK (L.H.) BS-692030
...
183
STRAP-FUEL TANK (R.H.) BS-698459
...
184
SCREW BS-697935
...
185
NUT (1/4-20) BS-690279
...
187
LINE, Fuel (Cut To Required Length) BS-841589
...
240
FILTER, Fuel BS-298090S
...
284
SCREW Used After Code Date 83042100 BS-690664
...
284
SCREW Used Before Code Date 83042200 BS-691044
...
367
SCREW BS-93380
...
387
KIT, Fuel Pump (1/4 O.D.) BS-791885
...
527
CLAMP, Hose BS-690394
...
601
CLAMP, Hose (Green) BS-791850
...
674
SCREW (5/16-18 X 7/8) BS-690341
...
674
SCREW (Fuel Tank) BS-691058
...
725
SHIELD, Heat BS-690403
...
918
GASKET, Breather Passage (Cylinder To Impulse Pump)(Cut To Required Length) BS-791760
...
957
CAP, Fuel Tank (Plastic) BS-799719
...
972
TANK, Fuel (3 Quart) (Plastic) BS-390225
