253703-0031-01 Briggs and Stratton Engine

Model: 253703-0031-01

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

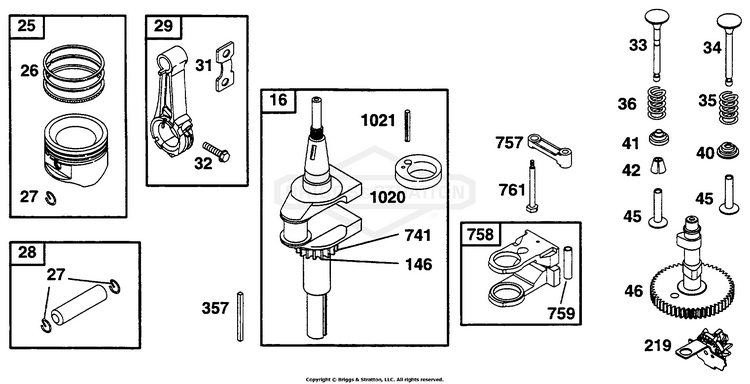

Piston Grp, Crankshaft, Cam

...
...
16
CRANKSHAFT Used After Code Date 88071800 BS-498994

...
25
PISTON ASSEMBLY (Standard) BS-499284

...
25
PISTON ASSEMBLY (.010 Oversize) BS-394662

...
25
PISTON ASSEMBLY (.020 Oversize) BS-499292

...
25
PISTON ASSEMBLY (.030 Oversize) BS-499296

...
26
SET, Ring (Standard) BS-499996

...
26
SET, Ring (.010 Oversize) BS-391781

...
26
SET, Ring (.020 Oversize) BS-499998

...
26
SET, Ring (.030 Oversize) BS-391783

...
26
SET, Ring (Standard) BS-392331

...
27
LOCK, Piston Pin BS-691792

...
28
PIN, Piston (Standard) BS-299691

...
28
PIN, Piston (.005 Oversize) BS-391286

...
29
ROD, Connecting (Standard) BS-490348

...
29
ROD, Connecting (.020 Undersize) BS-495490

...
31
LOCK, Rod Screw BS-222299

...
32

...
33
VALVE, Exhaust BS-691796

...
34
VALVE, Intake BS-690429

...
35
SPRING, Valve (Intake) BS-691605

...
36
SPRING, Valve (Exhaust) BS-691597

...
40
RETAINER, Valve (Valves With Groove In Stem) BS-690656

...
41
RETAINER, Valve (Exhaust) BS-691939

...
42
KEEPER, Valve (Exhaust) BS-494553

...
45
TAPPET, Valve BS-691811

...
46
CAMSHAFT BS-697668

...
146
PIN, Dowel BS-231086

...
146
KEY, Woodruff BS-691639

...
219
SLINGER, Governor/Oil BS-691968

...
357
KEY, Drive Pulley (1/4) BS-691483

...
741
GEAR, Timing (Pin) BS-261196

...
741
GEAR, Timing BS-691284

...
757
LINK, Counterweight BS-691714

...
758
COUNTERWEIGHT BS-692941

...
759
PIN, Counterweight BS-691239

...
761

...
1020
ECCENTRIC BS-692891

...
1021
PIN, Retainer BS-691679
...
...
...
