252707-0643-01 Briggs and Stratton Engine

Model: 252707-0643-01

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

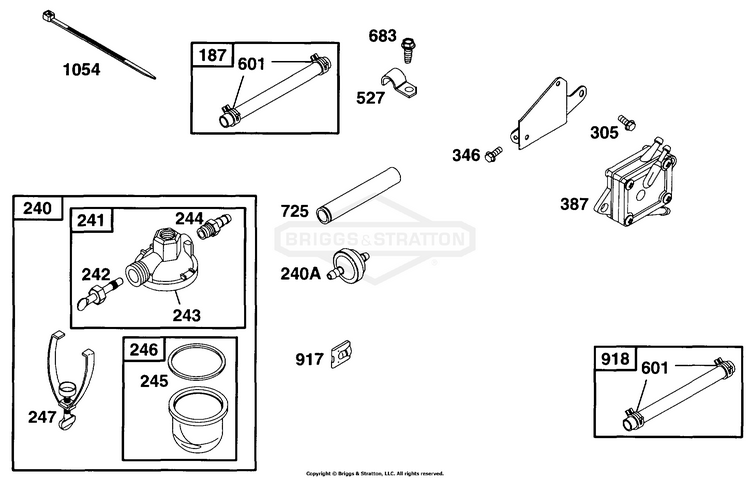

Fuel Grp

...
...
187
LINE, Fuel (Cut To Required Length) BS-791745

...
240A
FILTER, Fuel BS-298090S

...
240
FILTER, Fuel BS-690612

...
241
FILTER, Fuel BS-690612

...
242
FILTER, Fuel BS-690612

...
243
STRAINER, Fuel BS-691962

...
244
CONNECTOR-HOSE BS-691764

...
245
GASKET, Fuel Bowl Included in Gasket Set-Part No. 393411 BS-692190

...
246
BOWL, Fuel Filter BS-298683

...
247
YOKE, Bowl BS-691700

...
305
SCREW (1/2) BS-692198

...
346
SCREW (Muffler Deflector) BS-690661

...
387
PUMP, Fuel BS-597338

...
527
CLAMP, Hose BS-690394

...
601
CLAMP, Hose (Green) BS-791850

...
601
CLAMP, Hose (Black) BS-691038

...
683
SCREW (Muffler Guard) BS-690664

...
725
SHIELD, Heat BS-690403

...
917
VALVE, Handle Shutoff BS-691737

...
918
HOSE, Vacuum (Cylinder To Impulse Pump)(Cut To Required Length) BS-791880

...
1054
TIE, Cable BS-280275
...
...
...
