247930x50A Murray Grass Bagger

Model: 247930x50A

Save
 Part Not Listed?Part Not Listed?
product name

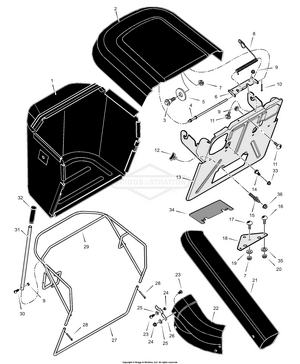

Repair Parts

...
...
1
BAG, CLOTH BS-1401173MA
...
2
Cover, Bag (Red) BS-721959
...
3
Bolt, Shoulder BS-720084
...
4
Rod, Bag Lid BS-727533
...
5
Washer BS-722596
...
6
Hinge, Bag Top BS-721997
...
7
NUT, CNTR LCK, 3/8-16 BS-703893
...
8
Spring, Torsion BS-722516
...
9
NUT .25-20 FLANGELOCK BS-015X89MA
...
10
Pin, Cotter BS-727498
...
11
BOLT, 1/4-20X0.625 BS-703841
...
12
Knob BS-740227MA
...
13
Assembly, Bag Plate & Hanger BS-1401182E701
...
14
Bolt, Shoulder BS-726097
...
15
Stud, Double End BS-725243
...
16
BOLT BS-703159
...
17
Bolt, Carriage BS-720050
...
18
Bracket, Hitch Extension BS-1401178E701MA
...
19
WASHER, FLAT BS-710083MA
...
20
NUT, HEX FLNG,5/16-18 BS-704067
...
21
Tube, Connecting BS-721965
...
22
Tube, Extension BS-721964
...
23
Bolt BS-720078
...
24
Acorn Nut BS-720122
...
25
Washer BS-722612
...
26
Spring, Leaf BS-721993
...
27
Tube, Bag Frame BS-721988
...
28
PIN, COTTER, 3/32X.75 BS-703312
...
29
Frame, Bag BS-721992
...
30
CAPSCREW, 1/4-20X1.5 BS-703234
...
31
Lever, Dump BS-1401141E701MA
...
32
Grip BS-1401176MA
...
33
NUT, 1/4-20, GR5 BS-703233
...
34
Baffle, Bag Plate BS-1401242MA
...
35
WASHER, 0.406 x 1 1/4 BS-17X212MA
...
36
NUT, 5/16-18, GR5 BS-703409
...
--
Book, Instruction BS-F-020901L
...
...
...
