24769A Murray - Grass Bagger (1999)

Model: 24769A

Save
 Part Not Listed?Part Not Listed?
product name

Baffle Assembly

...
...
1
Baffle, Left BS-94342E700
...
2
Baffle, Right BS-94344E700
...
3
Baffle Assembly, Rear BS-690135E700
...
4
Plate, Mulcher BS-690091E700
...
5
Bolt, Carriage BS-002X64MA
...
6
NUT, 5/16-18, GR5 BS-703409
...
7
NUT BS-703141
...
8
Screw, Thumb BS-06X106

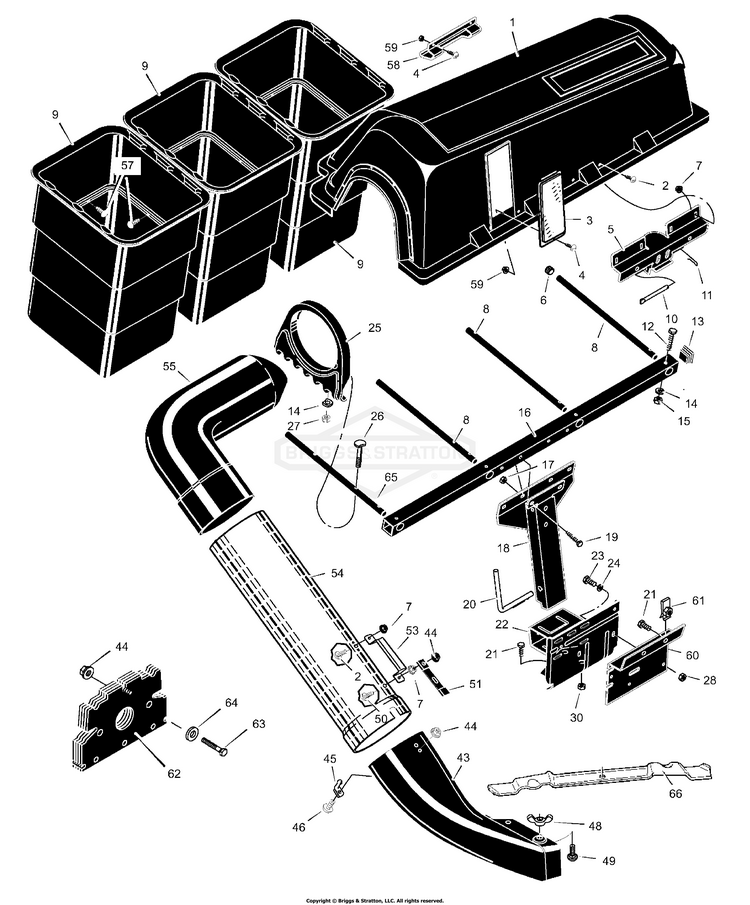

Grass Bagger

...
...
1
Cover, Bagger BS-094374
...
2
Screw BS-004X24MA
...
3
Window BS-054575MA
...
4
Screw BS-004X21MA
...
5
Hinge, Bracket BS-054754E701
...
6
Plug BS-054776MA
...
7
NUT, HEX, KEPS,1/4-20 BS-703914
...
8
Tube, Container BS-054753
...
9
Container BS-054752
...
10
Pin, Cover Hinge BS-054407ZMA
...
11
PIN, 3/32 X 1.6 BS-703300
...
12
Bolt BS-001X98MA
...
13
PLUG, Square BS-054777MA
...
14
LCKWSHR BS-703116
...
15
Nut BS-0015X2MA
...
16
Tube, Support BS-054761E701MA
...
17
Nut BS-15X118MA
...
18
Assembly, Channel BS-054757E701
...
19
Bolt BS-01X138MA
...
20
Pin, Channel Mount BS-054408 Z
...
21
Bolt, Hex BS-01X125MA
...
22
BAGGER MOUNT BS-7400298BMYP
...
24
Washer BS-010851 Z
...
25
Holder, Elbow BS-054362E701
...
26
Screw BS-006X93MA
...
27
LCKWSHR BS-703116
...
28
Nut, Super Flange BS-15X108MA
...
30
Nut, Hex BS-015X41MA
...
43
Tube, Extension BS-094325
...
44
NUT .25-20 FLANGELOCK BS-015X89MA
...
45
Pin, Latch BS-054563MA
...
46
Bolt, Carriage BS-002X39MA
...
48
NUT BS-703141
...
49
Bolt, Carriage BS-002X64MA
...
50
Screw BS-004X71MA
...
51
Latch, Rubber BS-054695MA
...
53
HANDLE, Connect Tube BS-054416ZMA
...
54
Tube, Connecting BS-094330MA
...
55
Elbow BS-094332
...
57
Fastener, Panel BS-0193X1MA
...
58
Handle, Plastic BS-054537MA
...
59
NUT#10-24 MCLEANLOCK BS-015X81MA
...
60
Bracket, Adapter BS-054758E701
...
61
U-Nut BS-028X69MA
...
62
Weight, Front BS-690370E701MA
...
63
Bolt BS-01X152MA
...
64
Washer BS-017X38 Z
...
65
Tube, Right Container BS-095384
...
66
Blade, High Lift BS-094119E701MA
...
--
Book, Instruction BS-F-99909
...
...
...
