24766A Murray - 52" Mulcher Kit (1998)

Model: 24766A

Save Part Not Listed?
product name

Mulcher Kit

...
...
1
Baffle, Left BS-95342E700
...
2
Baffle, Right BS-95344E700
...
3
Baffle Assembly, Rear BS-690135E700
...
4
Plate, Mulcher BS-690091E700
...
5
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
6
NUT, 5/16-18, GR5 BS-703409
...
7
NUT BS-703141
...
8
Screw, Thumb BS-06X106

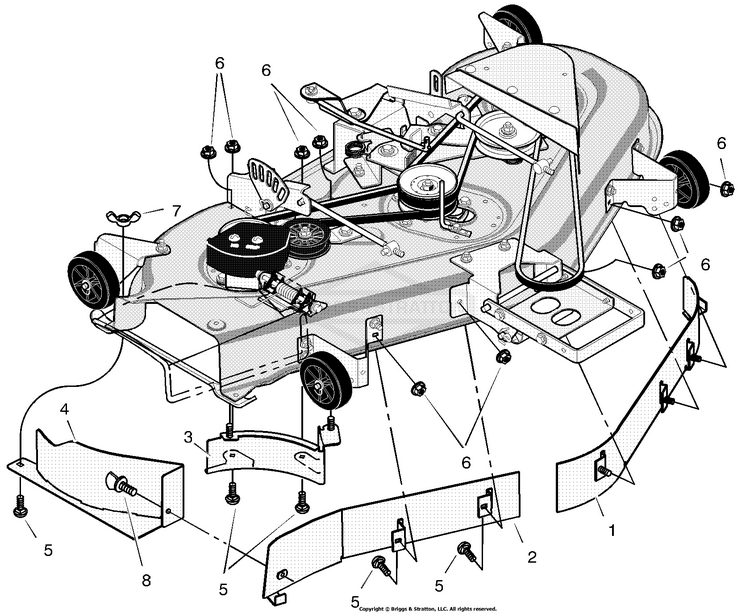

Schematic Image Zoomed
