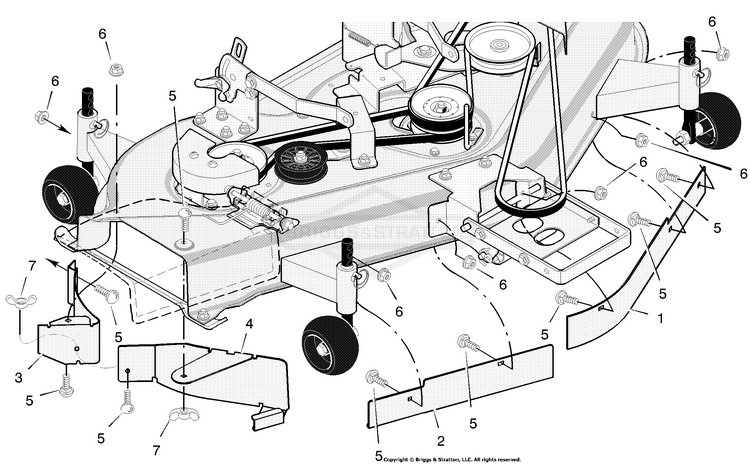

24763x8A Murray - 50" Mulcher Kit (1997)

Model: 24763x8A

Save Part Not Listed?
product name

Mulcher Kit

...
...
1
Baffle, Left BS-95039E700
...
2
Baffle, Right BS-95040E700
...
3
Baffle, Inner BS-95014E700
...
4
Plate, Mulcher BS-95013E700
...
5
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
6
NUT, 5/16-18, GR5 BS-703409
...
7
NUT BS-703141
Schematic Image Zoomed
