246432-0035-E1 Briggs and Stratton Engine

Model: 246432-0035-E1

Back To Assemblies

Save Part Not Listed?
product name

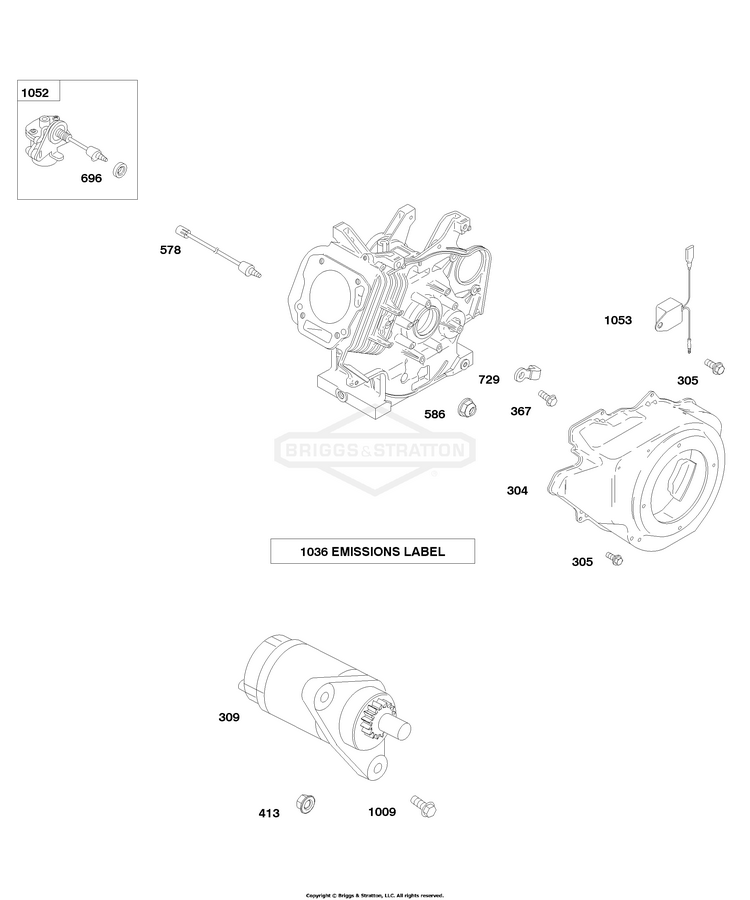

Blower Housing, Electric Starter

...
...
305
SCREW (Blower Housing) BS-710023
...
309
MOTOR, Starter (Steel Pinion) BS-715208
...
367
SCREW (Wire Clip) BS-710023
...
413
NUT (Starter Motor) BS-710081
...
578
WIRE ASSEMBLY BS-715202
...
578
WIRE ASSEMBLY (1 Wire, 11-13/16 )(Supported Snap Connect Pin terminal WithGroove, And Snap Connect Female Blade Terminal)) BS-710308
...
586
LOCKNUT (Oil Sensor) BS-710090
...
696
GASKET, Oil Guard (Oil Sensor) BS-710091
...
729
CLIP, Wire BS-710083
...
1009
SCREW (Starter Motor) BS-710348
...
1052
SENSOR, Oil BS-715353
...
1053
MODULE, Oil Guard BS-710305
