246432-0035-E1 Briggs and Stratton Engine

Model: 246432-0035-E1

Back To Assemblies

Save Part Not Listed?
product name

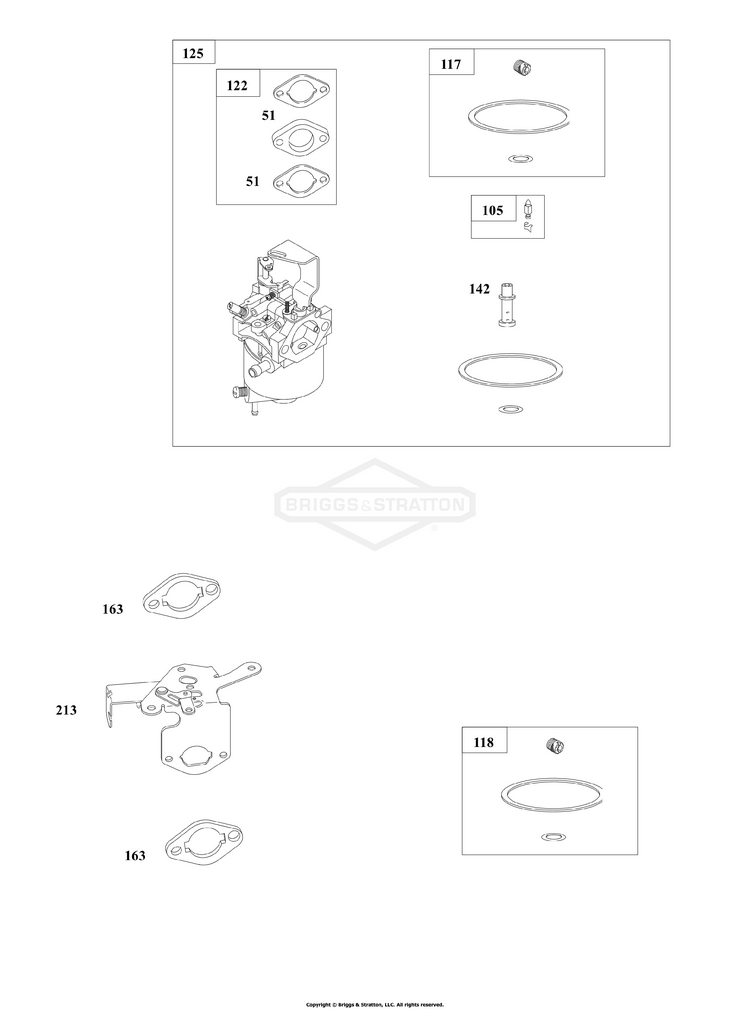

Carburetor

...
...
51
GASKET, Intake BS-710559
...
105
VALVE, Float Needle BS-715155
...
117
JET, Main (Standard) BS-711975
...
118
JET, Main (High Altitude) BS-716164
...
122
SPACER, Carburetor BS-716117
...
125
CARBURETOR BS-716116
...
142
NOZZLE, Carburetor (Standard) BS-711966
...
163
GASKET, Air Cleaner (Air Cleaner) BS-710557
...
213
BRACKET, Choke Control BS-715347
