246432-0035-E1 Briggs and Stratton Engine

Model: 246432-0035-E1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

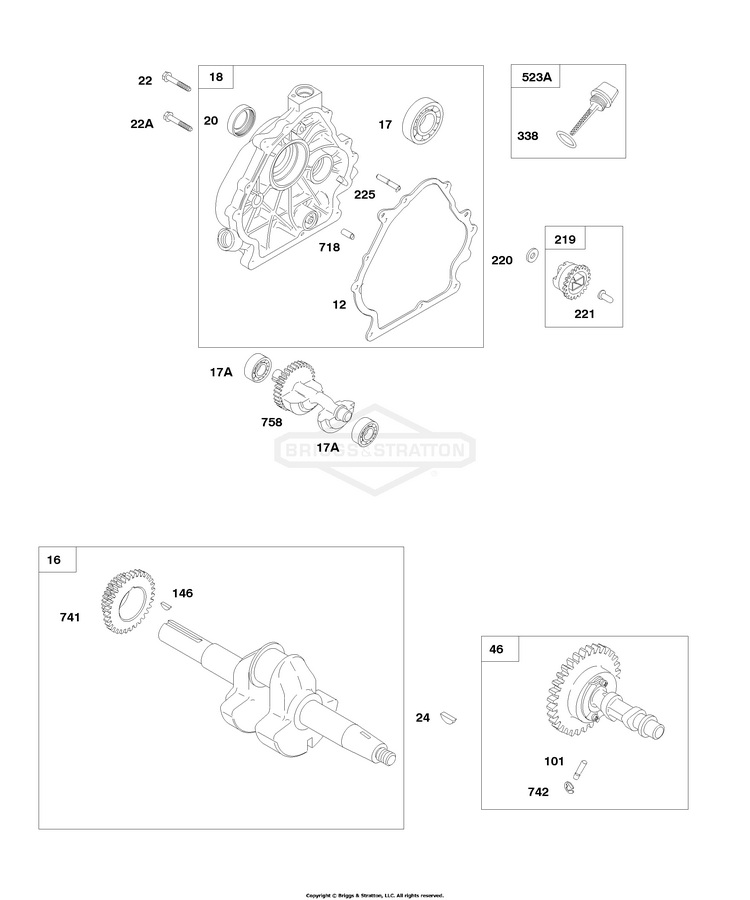

Crankcase Cover, Crankshaft, Camshaft

...
...
12
GASKET, Crankcase BS-710378
...
16
CRANKSHAFT (SAE Taper) BS-716083
...
17
BEARING, Ball BS-710528
...
17A
BEARING, Ball BS-710482
...
18
COVER, Crankcase BS-715358
...
20
SEAL, Oil (PTO Side) BS-291675S
...
22
SCREW (Crankcase Cover/Sump) (Quantity 8) BS-710032
...
22A
SCREW (Crankcase Cover/Sump) (Quantity 1) BS-710306
...
24
KEY, Flywheel BS-710037
...
46
CAMSHAFT BS-716237
...
101
PIN, Shaft BS-710547
...
146
KEY, Woodruff BS-711336
...
219
GEAR, Governor BS-716159
...
220
WASHER (Governor Gear) BS-710545
...
221
CUP, Governor BS-711964
...
225
SHAFT, Governor Gear BS-710028
...
276
WASHER, Sealing BS-710218
...
523A
DIPSTICK (Yellow) BS-710817
...
718
PIN, Locating BS-710005
...
741
GEAR, Timing BS-711335
...
742
RETAINER, E Ring BS-710548
...
758
COUNTERWEIGHT BS-712123
