24583 Murray - Snow Thrower - Tractor Mounted (2001)

Model: 24583

Save
 Part Not Listed?Part Not Listed?
product name

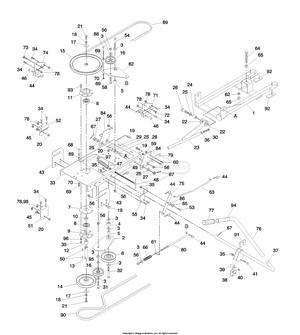

Frame Mount Assembly

...
...
1
Mounting Frame Assembly BS-7101201
...
2
Idler Bracket Assembly BS-7101197
...
3
WASHER, FLAT, .406 BS-703590
...
4
Spacer, .41 ID x 1.0 OD x .75" L BS-7101074
...
5
Bushing, .38 ID x .75 OD x .75" L BS-7101079
...
6
Pulley, V Idler 4" Dia. BS-7101145
...
7
Spacer, Spindle BS-7101190
...
8
Bearing, Ball BS-7101170
...
9
Housing, Bearing BS-7101188
...
10
Spacer BS-7101173
...
11
Housing, Open Bearing BS-7101189
...
12
Spacer BS-7101172
...
13
Shaft, .787 Dia. x 3.81 L BS-7101091
...
14
Pulley, 5-1/2" Dia. BS-7101140
...
15
Pulley, 9" Dia. BS-7101139
...
16
Pulley, 3-3/4" Dia. BS-7101174
...
17
Washer, Flat .406" ID x 1.25" OD BS-7101169
...
18
Lockwasher, 3/8" BS-018X31MA
...
19
Hex Bolt, 3/8-16 x 1" BS-01X137MA
...
20
NUT, CNTR LCK, 3/8-16 BS-703893
...
21
BOLT,HEX.37 24X1.00 Z BS-001X20MA
...
22
LEVER, HOC, 22 WBM BS-7101212YP
...
23
Lift Extension Assembly BS-7001147
...
24
GEAR, PINION, 22 WBM, FWD BS-7101207YP
...
25
Washer, 17/32" x 1" x 16 Ga. BS-17X175MA
...
26
Hex Bolt, 1/2-20 x 2-1/4" Gr. 8 BS-7101208
...
27
Castle Nut, 1/2-20 BS-7101210
...
28
Hex Bolt, 1/2-20 x 1-3/4" Gr. 8 BS-7101209
...
29
Spacer, .53" ID x .75" OD x .50" L BS-7101094
...
30
Hex Bolt, 3/8-16 x 2" (Full Thread) BS-7101213
...
31
Hex Bolt, 3/8-16 x 2-1/4" BS-7101103
...
32
Hex Bolt, 3/8-16 x 3-1/4" BS-01X123
...
33
Frame, Lift & Pulley BS-7101089
...
34
CAPSCREW, 5/16-18X.75 BS-704287
...
35
NUT, HEX FLNG,5/16-18 BS-704067
...
36
Hex Nut, 3/8-16 BS-7101101
...
37
KNOB, Quick Release BS-7101202YP
...
38
Bracket, Lift Stabilizer BS-7101219
...
39
Spacer, .53 ID x .75 OD x .75 L BS-7101211
...
40
Spacer, .37 ID x .50 OD x 1.125 L BS-7001003
...
41
Hex Bolt, 5/16-18 x 1-3/4" BS-001X75MA
...
43
Plate, Rear Mounting BS-7101080
...
44
PIN, 3/32 X 1.6 BS-703300
...
45
Shoulder Bolt, 3/8-16 x 5/8" BS-7101191
...
46
Clevis Pin, 3/8" x 1-1/4" BS-7101221
...
47
Spring, Extension .75" OD BS-7101194
...
48
Pull Chain BS-7101138
...
49
Pin, Haircotter (1/8") BS-7101118
...
50
Key, (Hi-Pro) BS-7101171
...
51
Bracket, Rear Hanger (RH) BS-7101092
...
52
Bracket, Rear Hanger (LH) BS-7101093
...
53
BOLT BS-5025011X8FS
...
54
Hex Bolt, 3/8-16 x 1-1/2" BS-01X111MA
...
55
Bracket, Pivot BS-7101086
...
56
Hex Lock Nut, 3/8-16 (Nylock) BS-015X97MA
...
58
Hex Bolt, 3/8-16 x 1-3/4" BS-001X87MA
...
59
NUT .25-20 FLANGELOCK BS-015X89MA
...
60
Hex Bolt, 1/4-20 x 1" BS-001X76MA
...
61
Anchor, Clutch Rod BS-7001026
...
62
Lockwasher, 1/2" BS-018X27MA
...
63
Rod, Engagement BS-7101155
...
64
Hex Bolt, 1/2-13 x 3-1/2" Full Thd. BS-7101126
...
65
Hex Nut, 1/2-13 BS-7101102
...
66
Spring, Coil BS-7101153
...
67
Pin, Cotter 1/8 x 1-1/4" BS-030X49MA
...
68
HHCS BS-703163
...
69
Hex Nut, 1/4-20 BS-7101116
...
70
Lockwasher, 1/4" BS-018X32MA
...
71
Front Hanger Bracket (LH) BS-7001102MA
...
72
Screw, 5/16-18 x 1" Self Tap BS-7001218
...
73
SCREW-HEX WSHR HD TAP BS-2828635SM
...
74
Front Hanger Bracket (RH) BS-7001101MA
...
75
Bell Crank Bracket BS-7101087
...
76
Handle, Lift BS-7001030
...
77
Grip BS-7101121
...
78
Hex Lock Nut, 5/16-18 (Nylok) BS-15X123MA
...
79
Bracket, Electric Clutch BS-7101088
...
80
Rod, Lower Clutch BS-7101152
...
82
Idler Arm Assembly BS-7101203
...
84
Plate, Front Mounting BS-7101081
...
85
Step Bushing BS-7101216
...
86
WHEEL, EURO RIM BS-7101127YP
...
88
Hex Bolt, 1/4-20 x 1-1/2" BS-001X71
...
89
Belt, Upper BS-7101154
...
90
Belt, Lower BS-7101223
...
91
Lift Bar Bracket BS-7101090
...
92
Shim Strap BS-7101220
...
93
Hex Bolt, 5/16-18 x 1-1/4" BS-01X139MA
...
94
Label, Handle BS-7101214
...
95
Spacer, Bushing BS-7101168
...
96
LCKWSHR BS-703116
...
97
NUT, CNTR LCK, 3/8-16 BS-703893

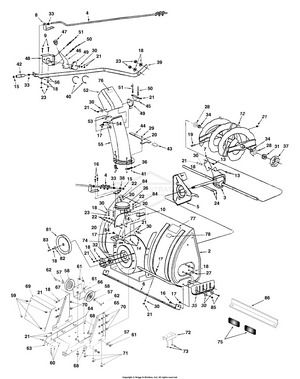

Snow Thrower Assembly

...
...
1
Bearing Housing BS-7101073
...
2
BUSHING, Handle Pin BS-7101199YP
...
3
Worm Drive Assembly BS-7101157
...
4
Chute Crank Rod Assembly BS-7101196
...
5
PIN, Handle Adjust BS-7101198YP
...
6
Plate, Scraper 40" BS-7101075
...
7
Bracket, Housing Brace BS-7101158
...
8
Bracket, Chute Crank BS-7101095
...
9
Carriage Bolt, 5/16-18 x 1-3/4" BS-002X84
...
10
DECAL SAFETY SYMBOLS BS-7101166YP
...
11
TRANSMISSION, 22 WBM SS, FWD (Not shown) BS-7101206MA
...
12
LEVER, HOC, 22 WBM BS-7101205YP
...
13
CAPSCREW, 5/16-18X.75 BS-704287
...
14
BOLT, 1/4-20X1, GR5 BS-703584
...
15
Palnut, 3/8" BS-7101133
...
16
Carriage Bolt, 5/16-18 x 1" BS-002X83
...
17
Carriage Bolt, 5/16-18 x 3/4" BS-002X64MA
...
18
LCKWSHR BS-703116
...
19
Shear Bolt, 5/16-18 x 1-1/2" BS-7101160
...
20
WASHER BS-703332
...
21
NUT, HEX FLNG,5/16-18 BS-704067
...
22
NUT .25-20 FLANGELOCK BS-015X89MA
...
23
DECAL, Warning, Safety Panel BS-7101111YP
...
24
Spiral Pin, 1/4" Dia x 1-1/2" BS-7101159
...
26
DECAL, Caution, Fuel Leakage BS-7101165YP
...
27
Bolt, Self-tap 5/16-18 x 3/4" BS-26X249MA
...
28
Washer, Flat .76 x 1.49 x .06 BS-17X115MA
...
29
Hex Bolt, 1/4-20 x 1" BS-001X76MA
...
30
Washer, 5/16" Std. Wrt. BS-017X44MA
...
31
Flange Bearing, .75" ID BS-7101149
...
32
DECAL, Battery Orientation, Euro RER BS-7101164YP
...
33
Bushing, 3/8" Plastic BS-7101175
...
34
Split Bearing, 3/4" BS-7101162
...
35
Skid Shoe BS-7101076
...
36
Chute Keeper BS-7101187
...
37
DECAL, Remove Battery, Symbols, Euro BS-7101163YP
...
38
Bracket, Chute Crank BS-7101077
...
39
COVER, FRONT DECK, 22 BS-7101195YP
...
40
BELT, DRIVE 22 (3L Section;33.75 effective length) BS-7101193MA
...
41
NUT .25-20 FLANGELOCK BS-015X89MA
...
42
Crank Knob BS-7101176
...
43
Grip, Knob BS-7101215
...
44
Bracket, Chute Anti-rotation BS-7101078
...
45
Cable Bracket BS-7101183
...
46
Chute Tilt Handle BS-7101180
...
47
Knob BS-7101181
...
48
Chute Tilt Bracket Assembly BS-7101179
...
49
Guide, Cable BS-7101182
...
50
Cable, Chute Control BS-7101184
...
51
Cable, Chute Control W/Clip BS-7101185
...
52
Chute, Upper (Snow Deflector) BS-7101178
...
53
Carriage Bolt, 5/16-18 x 1-1/2" BS-7101124
...
54
Screw, 1/4-14 x 5/8" BS-7101186
...
55
Chute, Lower BS-7101177
...
56
Washer, Bowed BS-7101131
...
57
WASHER, FLAT, .406 BS-703590
...
58
Pulley, V Idler BS-7101145
...
59
Screw, Self-tap 1/4" x 1" BS-7101132
...
60
Hex Bolt, 5/16-18 x 1-3/4" BS-001X75MA
...
61
Hex Lock Nut, 3/8-16 (Nylock) BS-015X97MA
...
62
Hex Bolt, 3/8-16 x 1-3/4" BS-001X87MA
...
63
DECAL, WARNING, EURO, MULTI-PANEL BS-7101084YP
...
64
SPRING, Compression BS-7101200YP
...
65
SPRING BS-1759750YP
...
66
Bracket, Idler Pulley BS-7101085
...
67
Bracket, Housing Support (LH) BS-7101083
...
68
Carriage Bolt, 3/8-16 x 1" BS-7101119
...
69
Cover, Belt Drive BS-7101222
...
70
Bushing BS-7101168
...
71
SCREW-HEX WSHR HD TAP BS-2828635SM
...
72
Bracket, Ramp Anchor BS-7101218
...
73
Screw, Hex Head Lag BS-7101217
...
74
Carriage Bolt, 5/16-18 x 1-1/4" BS-7101125
...
75
Red Reflector BS-7101150
...
76
Label, Cut Finger BS-7101143
...
77
Label, Warning/Danger BS-7101142
...
78
Label, Add Weight BS-7101144
...
81
Pulley, 7" OD BS-7101141
...
82
Washer, .344" ID X 1.125" OD BS-17X146MA
...
83
Hex Bolt, 5/16-24 x 1" BS-7101148
...
84
Washer, Nylon BS-7101225
...
85
Hex Lock Nut, 5/16-18 (Nylock) BS-15X123MA
...
86
Plate, Tail Reflector BS-7101226
...
--
Owners Manual BS-7101156
...
...
...
