245432-0521-E1 Briggs and Stratton Engine

Model: 245432-0521-E1

Back To Assemblies

Save Part Not Listed?
product name

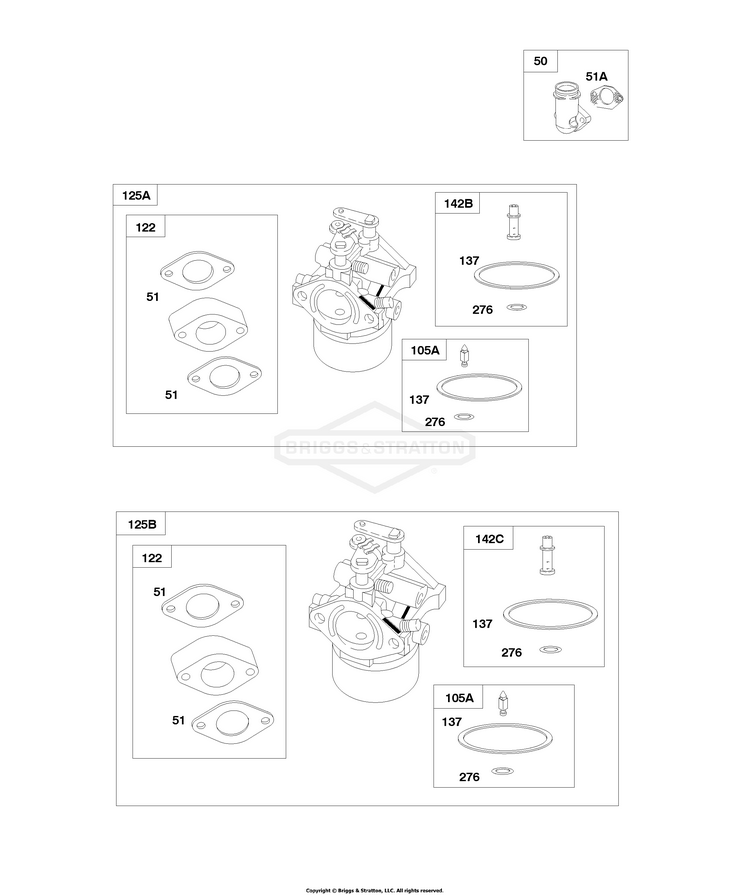

Carburetors, Intake Manifold

...
...
51
GASKET, Intake BS-710559
...
105A
VALVE, Float Needle (Carburetor I.D. Number 715744) BS-712001
...
122
SPACER, Carburetor BS-715377
...
137
GASKET, Float Bowl BS-281165S
...
142B
NOZZLE, Carburetor (Standard) BS-711995
...
276
WASHER, Sealing BS-692255
