245432-0270-E1 Briggs and Stratton Engine

Model: 245432-0270-E1

Back To Assemblies

Save Part Not Listed?
product name

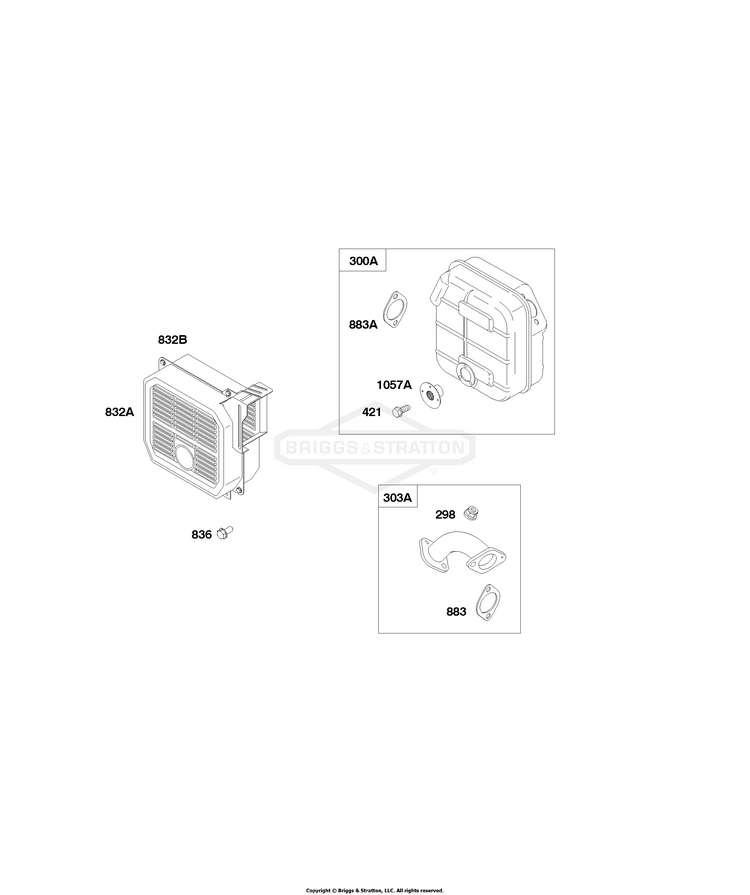

Lo Mount Muffler

...
...
298
LOCKNUT (Muffler and Elbow) BS-710090
...
300A
MUFFLER (Low Mount) BS-715600
...
303A
MANIFOLD, Exhaust (Low Mount) BS-715604
...
421
SCREW (Outlet Screen) (M4x6mm) BS-710307
...
832A
MUFFLER (Low Mount)(Front) BS-710791
...
832B
MUFFLER (Low Mount)(Rear) BS-710792
...
836
SCREW (Muffler Guard) (M6x8mm) BS-710074
...
883
GASKET, Exhaust BS-711182
...
883A
GASKET, Exhaust BS-710250
...
1057A
SCREEN, Outlet BS-710331
