243432-1160-01 Briggs and Stratton Engine

Model: 243432-1160-01

Back To Assemblies

Save Part Not Listed?
product name

Valves, Camshaft

...
...
33
VALVE, Exhaust BS-394436
...
34
VALVE, Intake BS-394434
...
35
SPRING, Valve (Intake) BS-691597
...
36
SPRING, Valve (Exhaust) BS-691597
...
40
RETAINER, Valve (Exhaust) BS-691939
...
42
KEEPER, Valve (Exhaust) BS-494553
...
42
RETAINER, Valve Used Before Code Date 81062400 BS-68283
...
45
TAPPET, Valve BS-691594
...
46
CAMSHAFT BS-211335
...
219
GEAR, Governor BS-393720
...
219A
GEAR, Governor Used Before Code Date 78062000 BS-291192
...
221
CUP, Governor BS-841026
...
225
SHAFT, Governor Gear BS-691357
...
552
BUSHING, Governor Crank BS-393666
...
553
RETAINER, Valve BS-690269
...
626
SPACER (Governor Lever) BS-690512
...
900
SHAFT, Gear BS-691071

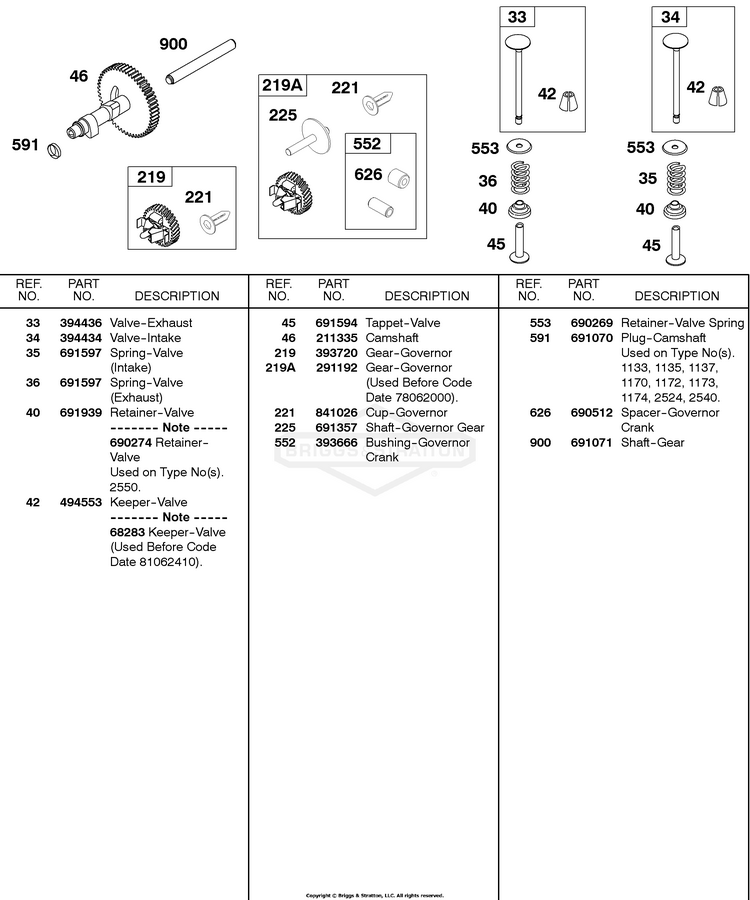

Schematic Image Zoomed
