243431-1135-03 Briggs and Stratton Engine

Model: 243431-1135-03

Back To Assemblies

Save Part Not Listed?
product name

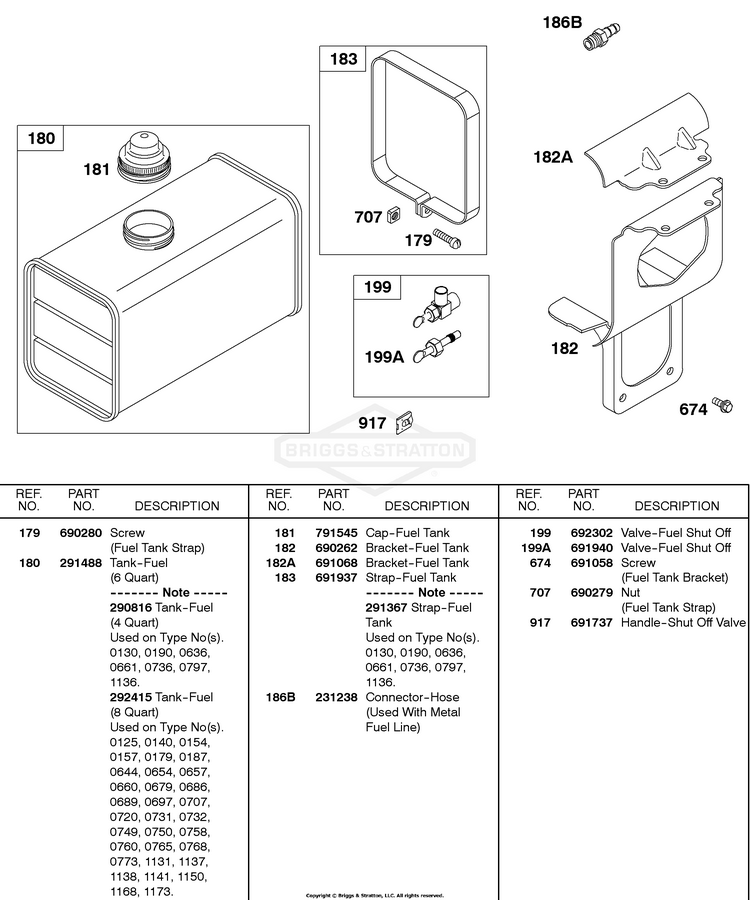

Fuel Tank, Brackets

...
...
179
SCREW (Fuel Tank Strap) BS-690280
...
180
TANK, Fuel (Metal) (6 Quart) BS-291488
...
181
CAP, Fuel Tank (Metal) BS-791545
...
182
BRACKET, Fuel Tank BS-690262
...
182A
BRACKET, Fuel Tank BS-691068
...
183
STRAP, Fuel Tank BS-691937
...
186B
CONNECTOR, Hose (Metal Fuel Pipe) BS-231238
...
199
VALVE-FUEL SHUT OFF(M (Metal) BS-592840
...
199A
VALVE-FUEL SHUT OFF(M (Metal) BS-592840
...
674
SCREW (Fuel Tank Bracket) BS-691058
...
707
NUT (Fuel Tank Strap) BS-690279
...
917
VALVE, Handle Shutoff BS-691737
