242012x00A Murray Utility Dump Cart17 cu.ft. (2003)

Model: 242012x00A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

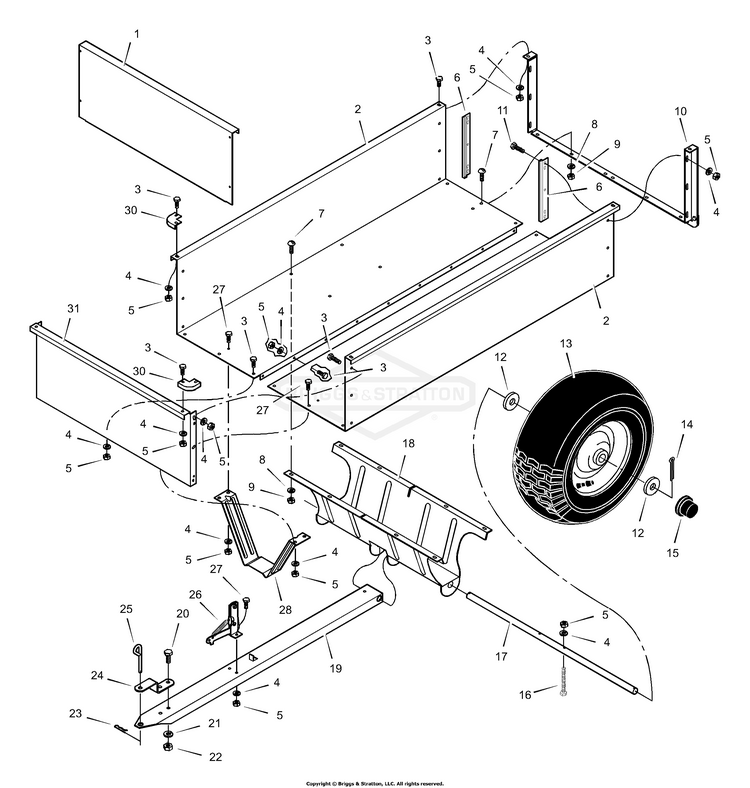

Utility Dump Cart - 17 Cubic Foot

...
...
1
ROD, REAR DOOR PIVOT, 21" RD BS-7101314YP
...
2
Panels, Body BS-7101319
...
3
BAIL, PIVOTING HANDLE - 21" JD WBM BS-7101322AYP
...
4
Lockwasher (Size 6) BS-7101331
...
5
Nut (M6) BS-7101328
...
6
Guides, Tailgate BS-7101308
...
7
Screw (M8x20) BS-7101327
...
8
TRANSAXLE BS-7101669YP
...
9
Nut (M8) BS-7101329
...
10
BELT GUIDE, Engine, 21” RD (1/4-20 thread) BS-7101313YP
...
11
Bolt (M6x20) BS-7101324
...
12
Washer (Size 25) BS-7101334
...
13
SEALED LEAD ACID BATTERY, 12V BS-7067012YP
...
14
LEVER, Height Adjust, 7 Position BS-7101335MA
...
15
BAIL, BLACK BS-7101321YP
...
16
Bolt (M6x45) BS-7101325
...
17
Axle BS-7101317
...
18
Support, Axle BS-7101316
...
19
Drawbar BS-7101318
...
20
Bolt (M10x25) BS-7101326
...
21
Lockwasher (Size 10) BS-7101333
...
22
CABLE, Bail, 22" WBM, - 41-1/2 BS-7101330YP
...
23
Pin, Hair BS-7101336
...
24
Bracket, Hitch Pin BS-7101311
...
25
Pin, Hitch BS-7101337
...
26
COVER, FRONT, REAR DI BS-7101310YP
...
27
KIT, ELECTRIC CLUTCH BS-7600073YP
...
28
HANDLE, Plastic, Upper, Walk-Behind Mower BS-7101312YP
...
30
Braces, Corner BS-7101309
...
31
Panel, Front BS-7101315
...
--
Book, Instruction BS-F-030902C
